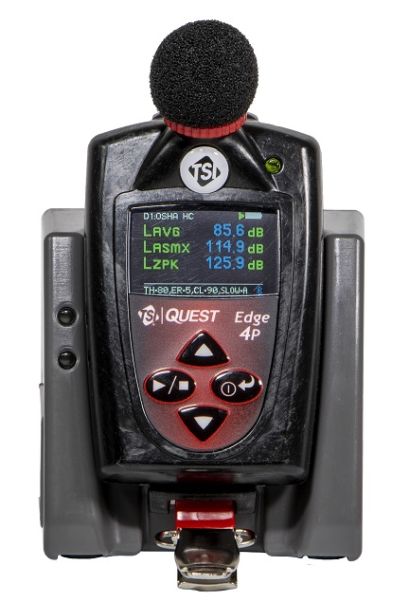

Edge 4 Plus by TSI Quest - Personal Noise Dosimeter

Personal Monitoring Datalogging
Noise Dosimeter Manufacturer: TSI Quest
Edge 4 Plus by TSI Quest - Personal Noise Dosimeter
Edge 4 Plus by TSI Quest - Personal Noise Dosimeter
Edge 4 Plus by TSI Quest - Personal Noise Dosimeter

The TSI Quest Edge 4 Plus is a compact, shoulder-mounted personal noise dosimeter that enables real-time monitoring of worker noise exposure via the Edge dB mobile app with Bluetooth connectivity. Weighing just 3 ounces (85g), it features a color OLED display, two independent dosimeters for simultaneous measurement against separate standards, and is ideal for OSHA HC, OSHA PEL, and ACGIH compliance programs. With a 40-hour battery life and 180 hours of data logging capacity, it supports multi-shift deployments, and the LED dose indicator provides immediate visual alerts when exposure limits are exceeded.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent
Purchase
Rental Rates
Daily
$70.00
Weekly
$185.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
See more product details
Need Help Choosing?
Our rental specialists can help you select the right equipment for your specific application.
Call 866-736-8347
1
Choose Purchase Option
Rent short-term or buy to own
Required
Rental Period What are these dates?

No rental period selected

Set your dates to see pricing.

Rental Period What are these dates?
—
Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.
Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Your Configuration

Edge 4 Plus by TSI Quest - Personal Noise Dosimeter
unit quantity
× $70.00
$70.00 Select dates
Subtotal:
$70.00
Select dates
Technician verified and tested instrumentation before every rental
Expert support available by phone and email
Fast delivery and flexible rental terms
What is the TSI Quest Edge 4 Plus used for?
The Edge 4 Plus is a compact personal noise dosimeter used for OSHA 1910.95 and OSHA 1926.52 noise exposure assessments, hearing conservation program baseline measurements, and occupational noise compliance surveys. It measures Lavg, Leq, Lmax, Lpk, TWA, and dose without octave band analysis.
What is the difference between the Edge 4 Plus and the Edge 5 noise dosimeters?
The Edge 5 adds 1/1-octave band frequency analysis to the Edge 4 Plus capabilities. For standard OSHA noise compliance surveys and hearing conservation program requirements (dose, TWA, Lmax), the Edge 4 Plus provides all necessary measurements at lower cost. The Edge 5 is required when octave band data is needed for engineering noise control, audiometric evaluation support, or frequency-specific hearing protector NRR selection.
Is the Edge 4 Plus intrinsically safe?
Yes. The Edge 4 Plus is intrinsically safe (MSHA, ATEX, CSA, IECEx certified) for use in hazardous classified locations, including mining, oil and gas, and chemical processing environments.
How long does the Edge 4 Plus battery last?
The Edge 4 Plus provides approximately 40 hours of runtime on a single charge, supporting multi-shift sampling campaigns without daily recharging.
How does the Edge 4 Plus transfer data?
Data is transferred wirelessly via Bluetooth to TSI's Detection Management Software (DMS) or Quest Suite software, which generates OSHA-compliant exposure reports.
What is the Edge 4 Plus rental rate from RAECO Rents?
Contact RAECO Rents at 866-736-8347 for current Edge 4 Plus daily and weekly rental pricing. Rental includes the dosimeter, windscreen, calibrator, DMS software, and case. Multiple units available for simultaneous multi-worker surveys.

Exposure Hazards This Equipment Detects

Noise (dBA)

CAS: N/A
Learn More
Updated on March 09, 2026
PEL TWA
90 dBA
REL TWA
85 dBA
TLV TWA
85 dBA

Features & Capabilities

Calibration Certificate Available: ✓ Yes
Datalogging: ✓ Yes
Monitoring Scope: Personal Monitoring

Equipment Specifications

Specification Value
Microphone 1/4" prepolarized condenser (electret), field-replaceable
Measuring Range (RMS) 70 dB to 140 dB
Peak Range 110 dB to 143 dB
Independent Dosimeters 2
Frequency Weighting A, C, Z
RMS Weighting A or C
Peak Weighting C or Z
Time Response Fast or Slow
Exchange Rates 3 dB, 4 dB, or 5 dB
Thresholds 70 dB to 90 dB (selectable) or none
Criterion Levels 70 dB to 90 dB (1 dB increments)

Battery Life 40 hours
Memory Capacity 180 hours
Data Logging LAVG/LEQ, Max, Peak, Overload at 1-minute intervals
Display 128 × 64 color OLED
Connectivity Bluetooth (model EG4P) + Infrared via EdgeDock
Weight 3 oz (85 g)
Dimensions 3.5" × 2.1" × 0.75" (88 × 53 × 19 mm)
IP Rating IP65
Operating Temperature 14°F to 122°F (−10°C to 50°C)
Storage Temperature −13°F to 140°F (−25°C to 60°C)
Humidity 0 to 95% RH (non-condensing)
Standards ANSI S1.25, IEC 61252
Charge Time 2–4 hours via EdgeDock

Kit Contents

TSI Quest Edge 4+ dosimeter, windscreen, clothing clip, AC-300 calibrator, Edge docking station, USB Cable, DMS software, and calibration certificate.
