Lead XRF Analyzers: Rent or Buy
Lead (Pb) is a heavy metal with no known biological function in the human body. Occupational lead exposure occurs in industries including battery manufacturing and recycling, smelting, painting and abrasive blasting on lead-painted surfaces, construction, and firing ranges.
COMPARE YOUR OPTIONS
Monitoring Equipment to Rent for Lead
Every unit here is a handheld XRF analyzer. The apps installed on each one decide what it can test: lead paint, soil and RCRA metals, or alloys. Compare the units in the tables below.
Top pick
COMPARE OPTIONS
Lead monitoring equipment side by side
| Instrument | Installed apps | HUD lead paint results | Soil & RCRA metals | Alloy ID | Test time | Battery run time | Intrinsically safe | Data logging | Starting at |
|---|---|---|---|---|---|---|---|---|---|
| SciAps X-550 XRF Analyzer - Lead Paint & RCRA/Soils | Lead Paint, RCRA/Soils | Rhodium anode: no inconclusive range at 0.5 or 1.0 mg/cm²; at 0.7 mg/cm², none in Quick mode and 0.6–0.7 mg/cm² in Timed mode | Single-digit ppm for most RCRA and EPA Priority Pollutant metals | — | Lead paint: Quick mode about 2–6 seconds; Timed mode fixed 10 seconds | 6 to 8 hours on one battery | No | Yes | $760.00 / day |

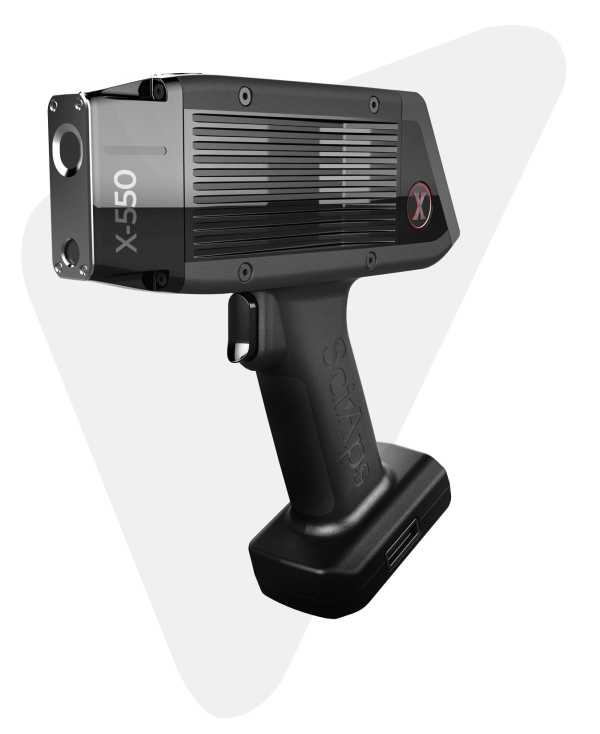

| SciAps X-550 XRF Analyzer - Lead Paint, RCRA & Alloys | Lead Paint, RCRA/Soils, Alloy | Rhodium anode: no inconclusive range at 0.5 or 1.0 mg/cm²; at 0.7 mg/cm², none in Quick mode and 0.6–0.7 mg/cm² in Timed mode. Gold anode: inconclusive range 0.4–0.6 mg/cm² at 0.5 mg/cm²; no inconclusive range at 0.7 or 1.0 mg/cm² | Single-digit ppm for most RCRA and EPA Priority Pollutant metals | 500+ grades standard, no practical size limit | Common alloys in 1 second or less; Lead paint: Quick mode about 2–6 seconds; Timed mode fixed 10 seconds | 6 to 8 hours on one battery | No | Yes | $760.00 / day |

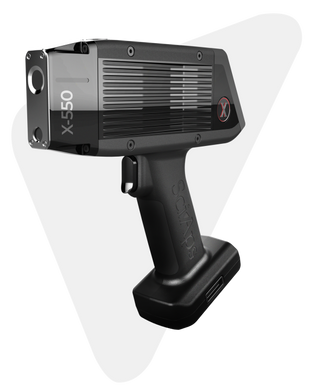

| SciAps X-550 XRF Analyzer - Lead PaintTop pick | Lead Paint | Rhodium anode: no inconclusive range at 0.5 or 1.0 mg/cm²; at 0.7 mg/cm², none in Quick mode and 0.6–0.7 mg/cm² in Timed mode | — | — | Lead paint: Quick mode about 2–6 seconds; Timed mode fixed 10 seconds | 6 to 8 hours on one battery | No | Yes | $630.00 / day |
Applications by unit
| Instrument | Lead-based paint inspections | Renovation & demolition screening | Industrial lead paint | Soil & site screening | Scrap & alloy sorting |
|---|---|---|---|---|---|
| SciAps X-550 XRF Analyzer - Lead Paint & RCRA/Soils | Yes | Yes | Yes | Yes | No |
| SciAps X-550 XRF Analyzer - Lead Paint, RCRA & Alloys | Yes | Yes | Yes | Yes | Yes |
| SciAps X-550 XRF Analyzer - Lead Paint | Yes | Yes | Yes | No | No |
HUD lead paint results are from SciAps' published Performance Characteristic Sheets (February 2022) at the 0.5, 0.7 and 1.0 mg/cm² action levels. Results differ by X-ray tube anode (rhodium or gold). Run times are manufacturer estimates and vary with configuration and conditions. Not sure? Talk to our team.
WHERE EXPOSURE OCCURS
Risks: Where Lead Exposure Occurs
Lead exposure is a common risk during renovation, demolition, and industrial work that disturbs lead-based paint, solder, or other lead-containing materials. Rent lead testing and monitoring equipment from RAECO Rents to support lead paint screening and hazard evaluations before work begins and during cleanup. This collection includes XRF analyzers used to identify lead in painted surfaces and other materials, using HUD-recognized lead paint testing protocols.
Lead-based paint inspections
Pre-1978 housing, schools and child-occupied buildings where lead paint testing is required.
Typical setup: A handheld XRF analyzer with the lead paint app.
Renovation & demolition
Sanding, scraping, cutting or demolishing painted surfaces can release lead dust.
Typical setup: XRF screening of painted components before work starts.
Soil & site screening
Former industrial sites, shooting ranges and yards near old painted structures.
Typical setup: An XRF analyzer with the soil app for field screening.
Scrap & metal sorting
Identifying lead and other metals in alloys and scrap.
Typical setup: An XRF analyzer with the alloy app.
EXPOSURE LIMITS
Lead exposure limits
- TWA0.05 mg/m³ [0.03 mg/m³ Action Level] [29 CFR 1910.1025]
- TWA0.05 mg/m³ (as Pb)
- IDLH100 mg/m³ (as Pb)
- TWA0.05 mg/m³ (Lead and inorganic compounds, as Pb) [1991]
TWA = 8-hour time-weighted average (NIOSH RELs are 10-hour). STEL = 15-minute short-term limit. IDLH = immediately dangerous to life or health. Updated October 8, 2026.
Lead monitoring questions
All rental FAQs →Not sure which lead monitoring equipment fit your job?
Tell us where the hazard is and how many workers need coverage. We'll recommend the instrument, range and alarm settings.
For educational purposes only. Exposure limits are summarized from the cited agencies; confirm monitoring requirements for your site with a qualified safety professional.
