Air Velocity Meters: Rent or Buy

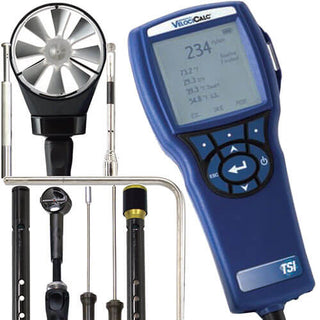

Use a TSI VelociCalc with the 964 Thermoanemometer Straight Probe or 966 Thermoanemometer Articulating Probe for low, sensitive air velocity readings at grilles, diffusers, and similar HVAC points. Use the Telescoping Pitot Probe (8"–38") with a TSI VelociCalc 9565-P when you need higher-velocity duct measurements, a duct traverse, or a more defensible airflow calculation.

Use a TSI VelociCalc with the 964 or 966 probe when you need point air velocity readings in FPM at a grille, diffuser, hood face, or opening. Use the Telescoping Pitot Probe (8"-38") with a TSI VelociCalc 9565-P when you need a duct traverse and want to calculate duct airflow more defensibly from velocity pressure readings.

Measure with a hot-wire anemometer or vane anemometer at a grid of points across the sash opening, with the sash at its normal working height. Typical practice is a grid of at least 4–6 points per square foot of opening. Average the readings. Most standards call for 80–120 FPM average face velocity; check your specific applicable standard (OSHA, ANSI/AIHA, or institutional policy).

Common causes: turbulent airflow near obstructions (columns, diffusers, bends)—measurements should be taken at least 5-10 duct diameters downstream of any obstruction. Probe angle matters: hot wire anemometers are sensitive to orientation. Battery condition affects accuracy on some instruments. For duct traverses, not using enough measurement points across the duct cross-section is a frequent error. For outdoor or large-space readings, natural turbulence can cause inherent variability—take multiple readings and average them.

Use the 964 probe (straight thermoanemometer with temperature and humidity) for straightforward duct traverse work and supply/return measurements where the probe fits inside the duct or grille opening. Use the 966 probe (articulated, with a 90° bend) when you need to measure inside tight spaces or through small access ports where a straight probe can't reach the measurement plane. Both are hot-wire anemometers sensitive to flow direction—align perpendicular to flow for accurate readings.

Use the Telescoping Pitot Probe (8"-38") with a TSI VelociCalc 9565-P when you need a duct traverse for higher-velocity ductwork, TAB-style documentation, or a more defensible duct airflow calculation. It's the right choice when you have proper test ports and need to measure velocity pressure across multiple points in the duct cross-section.
