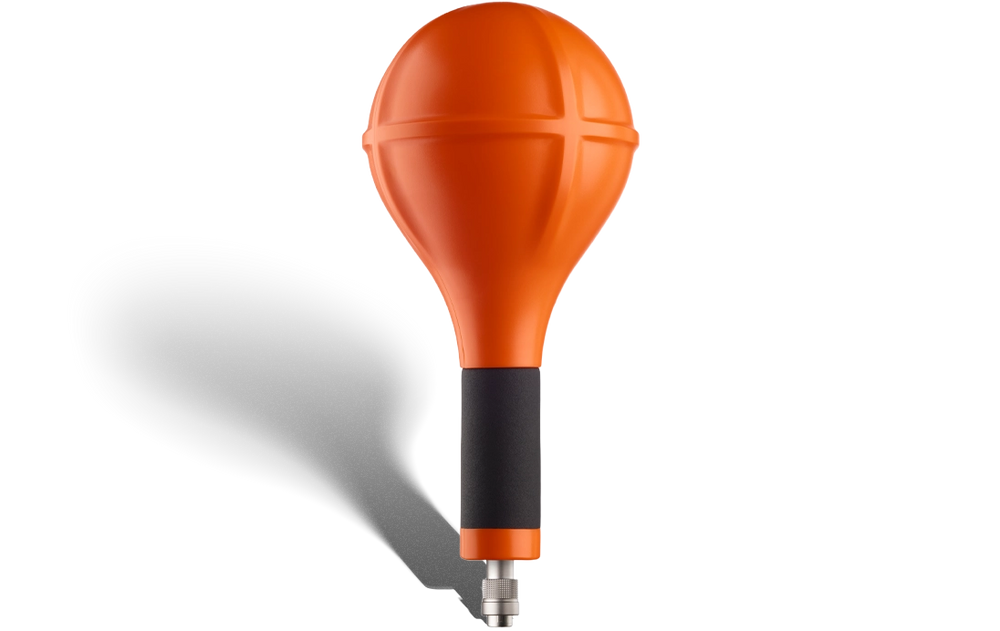

WP400 FIELD PROBE

Electromagnetic Fields (EMF) Probe Manufacturer: WaveControl
WP400 FIELD PROBE
WP400 FIELD PROBE
WP400 FIELD PROBE

The Wavecontrol WP400 dual-field probe measures electric and magnetic fields from 1 Hz to 400 kHz with true RMS detection and FFT spectrum analysis. It provides 1 V/m to 100 kV/m electric field and 50 nT to 10 mT magnetic field measurement ranges with Weighted Peak Method compliance.

Used to measure power-frequency electric field strength, magnetic flux density, and ELF (extremely low frequency) exposure, this probe is commonly applied in power grid and transformer station compliance, railway EMF assessments (AC traction systems), industrial manufacturing exposure surveys (induction heating, welding), and occupational safety evaluations near high-voltage lines and substations.

Contact Us for Rental Information
This equipment is part of a specialized system and may not be available for individual rental. Please contact our rental specialists to discuss your project requirements and available options.
Call 866-736-8347
See more product details

About This Product

The Wavecontrol WP400 dual-field probe measures electric and magnetic fields from 1 Hz to 400 kHz with true RMS detection and FFT spectrum analysis. It provides 1 V/m to 100 kV/m electric field and 50 nT to 10 mT magnetic field measurement ranges with Weighted Peak Method compliance.

Used to measure power-frequency electric field strength, magnetic flux density, and ELF (extremely low frequency) exposure, this probe is commonly applied in power grid and transformer station compliance, railway EMF assessments (AC traction systems), industrial manufacturing exposure surveys (induction heating, welding), and occupational safety evaluations near high-voltage lines and substations.

Exposure Hazards This Equipment Detects

Radio Frequency Radiation (RF)

CAS: N/A
Learn More
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A

Electromagnetic Fields (EMF)

CAS: N/A
Learn More
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A

Equipment Specifications

- **Frequency range**: 1 Hz – 400 kHz (full band); 1 Hz – 400 kHz (low band)
- **Sensor type**: Isotropic patented coil (100 cm² effective area) and dipole arrangement
- **Electric field range**: 2 V/m – 100 kV/m (up to 80 kHz), 2 V/m – 47 kV/m (80 kHz–10 MHz)
- **Magnetic field range**: 100 nT – 47 mT @ 50 Hz, 100 nT – 4.7 mT (500 Hz–10 MHz)*
- **Electric field resolution**: <0.4 mV/m above 8 Hz
- **Magnetic field resolution**: <0.1 nT @ 50 Hz, <0.05 nT above 100 Hz
- **Noise level**: <1 V/m (10 Hz–400 kHz), <50 nT (10 Hz–400 kHz)
- **Typical uncertainty**: E-field 0.67 dB, H-field 0.60 dB
- **Peak value**: Digital realtime detection (both E and H)
- **High-pass filters (HPF)**: 10 Hz, 25 Hz, 100 Hz (user-selectable)
- **FFT spans**: 400 Hz (1 Hz resolution), 4 kHz (10 Hz resolution), 40 kHz (100 Hz resolution), 400 kHz (1 kHz resolution)
- **Weighted Peak Method (WPM)**: Real-time comparison to ICNIRP 2010, ICNIRP 1998, EU Directive 2013/35/EU, BGV B11, China, and other standards
- **Isotropy**: E-field ±5%, H-field ±4%
- **Damage level (CW)**: E-field >200 kV/m (up to 80 kHz), H-field >100 mT @ 50 Hz**
- **Calibration**: 24-month recommended interval
- **Dimensions**: 280 mm × 128 mm Ø (11.02" × 5.04" Ø)
- **Weight**: 220 g / 0.485 lbs
