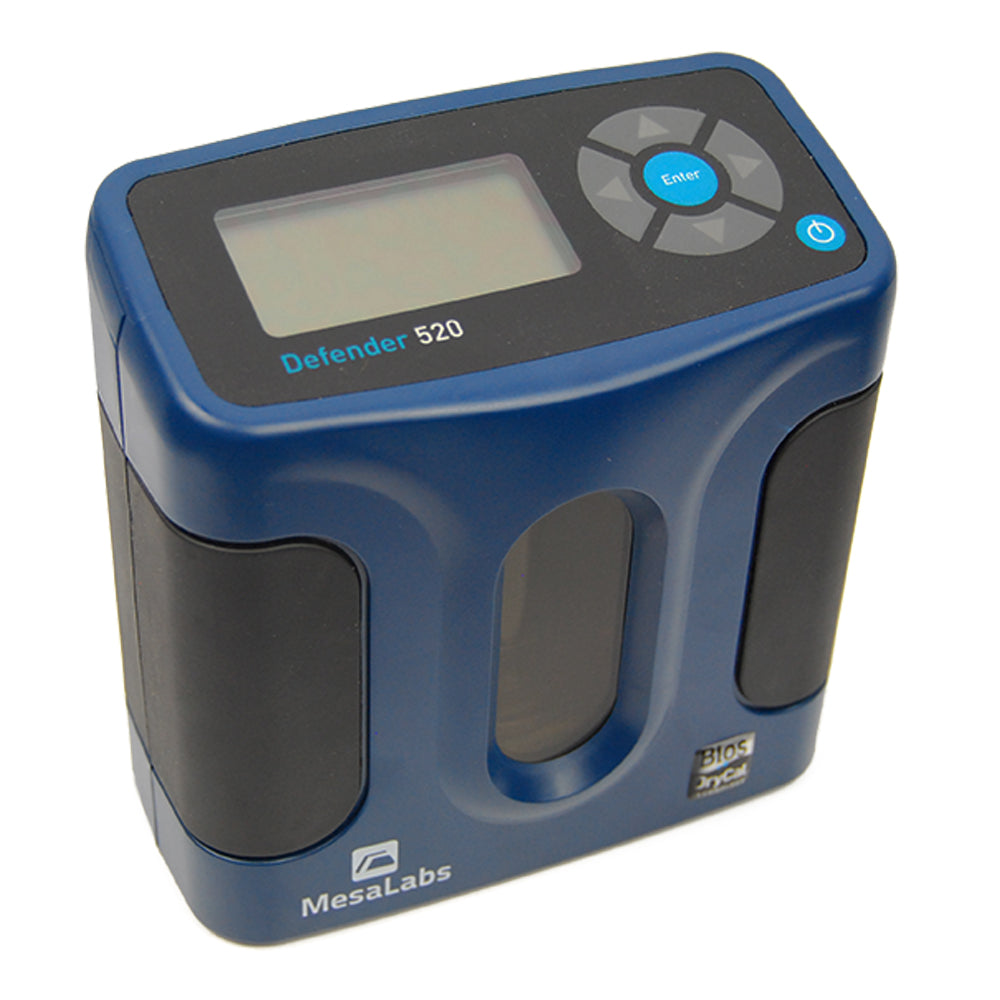

Bios Defender 520H (0.3-30LPM) by Mesa Labs Bios

Personal Monitoring
Air Sampling Flow Calibrator Manufacturer: Mesa Labs Bios
Bios Defender 520H (0.3-30LPM) by Mesa Labs Bios
Training
Available
Bios Defender 520H (0.3-30LPM) by Mesa Labs Bios
Bios Defender 520H (0.3-30LPM) by Mesa Labs Bios
Training
How to Calibrate a Gilair Plus Air Sampling Pump Using BIOS Defender 520: Step-by-Step Guide

The Bios Defender 520H by Mesa Labs is a primary liquid-free gas flow calibration standard offering a high-flow measurement range of 0.3–30 LPM, providing traceable volumetric flow verification without the need for bubbles or liquids. Its pushbutton interface allows users to set engineering units, temperature compensation, and continuous or burst measurement modes in seconds, and it simultaneously records ambient temperature and pressure for a complete audit trail. It is well-suited for calibrating high-volume air sampling pumps, environmental sampling equipment, and laboratory instruments where flow rates in the mid-to-high LPM range require primary standard accuracy.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent
Purchase
Rental Rates
Daily
$65.00
Weekly
$160.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
See more product details
Need Help Choosing?
Our rental specialists can help you select the right equipment for your specific application.
Call 866-736-8347
1
Choose Purchase Option
Rent short-term or buy to own
Required
Rental Period What are these dates?

No rental period selected

Set your dates to see pricing.

Rental Period What are these dates?
—
Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.

Need equipment sooner than the dates shown? We can often accommodate rush rentals. Call us at 866-736-8347 to confirm availability.

Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Your Configuration

Bios Defender 520H (0.3-30LPM) by Mesa Labs Bios
unit quantity
× $65.00
$65.00 Select dates
Subtotal:
$65.00
Select dates
Technician verified and tested instrumentation before every rental
Expert support available by phone and email
Fast delivery and flexible rental terms
What flow range does the Defender 520H cover?
300 to 30,000 mL/min (0.3 to 30 LPM). It is the high-flow member of the Defender family, intended for area samplers and high-volume equipment rather than personal pumps.
When should I step up from the 520M to the 520H?
When your sampling runs above 5 L/min, which is the 520M ceiling. Area samplers, high-volume cassette sampling and many bioaerosol samplers operate in the 10 to 30 L/min band that the 520H covers. The two overlap between 0.3 and 5 L/min, so if your work spans both personal and area sampling either can handle the middle.
Can the 520H calibrate low-flow sorbent tube sampling?
No. Its range stops at 300 mL/min, and sorbent tube methods commonly run between 20 and 200 mL/min. Use the 520L for that work, which covers 5 to 500 mL/min.
Is the 520H a primary standard?
Yes. It measures volumetric flow directly, with percent-of-reading accuracy supported by NVLAP NIST ISO 17025 accreditation, so it serves as the reference for verifying your sampling equipment.
Can I document flow over a long sampling run?
Yes. It takes single readings, continuous hands-free readings, or automatic readings at intervals from 1 to 60 minutes. For extended area sampling the interval mode lets you show flow held steady rather than relying on start and end checks alone.
Which flow units does it display?
mL, L, cc or cfm. At high flows cfm is often the practical unit for ventilation and area sampling work, and reading it directly avoids converting from L/min.
Does the rental include calibration documentation?
Every RAECO Rents instrument ships NIST-traceable calibrated. If your project requires the certificate to fall within a specific window relative to your sampling dates, tell us before the rental so we can confirm the calibration date on the unit you receive.

Features & Capabilities

Calibration Certificate Available: ✓ Yes
Monitoring Scope: Personal Monitoring

Equipment Specifications

Measurement Type: Primary standard volumetric flow calibration
Measurement Range: 300 to 30,000 mL/min (0.3 to 30 LPM)
Accuracy: Percent-of-reading accuracy supported by NVLAP NIST ISO 17025 accreditation
Sampling Modes: Individual readings, continuous hands-free readings, or timed intervals from 1 to 60 minutes between readings
Calibration Standard: NVLAP NIST ISO 17025 accredited
Connectivity: Integrated serial PC interface with software for transferring flow data, automatic recording and graphing of flow measurements
Parameters Displayed: Selectable flow units: mL, L, cc or cfm
Intended Use: High-flow calibration of area air sampling pumps and high-volume samplers

Kit Contents

Bios Defender Calibrator, Inlet/Outlet Caps (2), Tubing for Calibration (1) 1/4” ID & (1) 1/8” ID, Luer Adapter (To Connect to Cassette), AC Power Cable for Charging, Calibration Certificates (emailed)
