Bios Defender 520L (0.005-0.5LPM) by Mesa Labs Bios

Personal Monitoring
Air Sampling Flow Calibrator Manufacturer: Mesa Labs Bios
Bios Defender 520L (0.005-0.5LPM) by Mesa Labs Bios
Training
Available
Bios Defender 520L (0.005-0.5LPM) by Mesa Labs Bios
Bios Defender 520L (0.005-0.5LPM) by Mesa Labs Bios
Training
How to Calibrate a Gilair Plus Air Sampling Pump Using BIOS Defender 520: Step-by-Step Guide

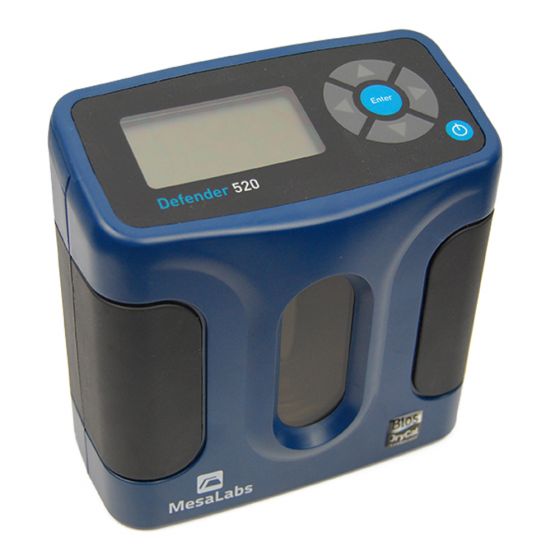

The Bios Defender 520L by Mesa Labs is a primary liquid-free gas flow calibration standard offering a low-flow measurement range of 0.005–0.5 LPM (5–500 ml/min), providing traceable volumetric flow verification without the need for bubbles or liquids. Its pushbutton interface allows users to set engineering units, temperature compensation, and continuous or burst measurement modes in seconds, and it simultaneously records ambient temperature and pressure for a complete audit trail. It is the ideal calibration standard for low-flow personal air sampling applications including sorbent tube, passive badge, and low-volume media sampling in industrial hygiene programs.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent
Purchase
Rental Rates
Daily
$65.00
Weekly
$160.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
See more product details
Need Help Choosing?
Our rental specialists can help you select the right equipment for your specific application.
Call 866-736-8347
1
Choose Purchase Option
Rent short-term or buy to own
Required
Rental Period What are these dates?

No rental period selected

Set your dates to see pricing.

Rental Period What are these dates?
—
Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.

Need equipment sooner than the dates shown? We can often accommodate rush rentals. Call us at 866-736-8347 to confirm availability.

Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Your Configuration

Bios Defender 520L (0.005-0.5LPM) by Mesa Labs Bios
unit quantity
× $65.00
$65.00 Select dates
Subtotal:
$65.00
Select dates
Technician verified and tested instrumentation before every rental
Expert support available by phone and email
Fast delivery and flexible rental terms
What flow range does the Defender 520L cover?
5 to 500 mL/min (0.005 to 0.5 LPM). It is the lowest-range calibrator in the Defender family, intended for low-flow sampling rather than general pump work.
Why do I need a low-flow calibrator instead of a standard one?
Sorbent tubes, passive badges and many gas sampling methods run at flows well under 500 mL/min, often between 20 and 200 mL/min. A calibrator whose range starts at 50 mL/min or higher either cannot read those flows at all or reads them at the very bottom of its span where accuracy is weakest. The 520L is built for that band.
Will the 520L calibrate my filter cassette or cyclone sampling?
Usually not. Respirable dust cyclones and filter cassettes typically run between 1 and 4 L/min, which is above this unit's 0.5 L/min ceiling. Choose the 520M for that work, or the 520H for area samplers above 5 L/min.
Is the 520L accurate enough for compliance sampling?
Its percent-of-reading accuracy is supported by NVLAP NIST ISO 17025 accreditation, and it measures volumetric flow directly as a primary standard. That is the basis most industrial hygiene programmes require for documenting pre- and post-sampling pump calibration.
Can I log low-flow readings over time?
Yes. Alongside single readings and continuous hands-free operation, it can take automatic readings at intervals from 1 to 60 minutes, and transfer the data to a PC over the integrated serial interface for automatic recording and graphing.
Which flow units does it display?
mL, L, cc or cfm. At low flows most sampling methods specify mL/min, so reading directly in mL avoids converting from litres and introducing a rounding error into your calibration record.
Does the rental include calibration documentation?
Every RAECO Rents instrument ships NIST-traceable calibrated. If your project requires the certificate to fall within a specific window relative to your sampling dates, tell us before the rental so we can confirm the calibration date on the unit you receive.

Features & Capabilities

Calibration Certificate Available: ✓ Yes
Monitoring Scope: Personal Monitoring

Equipment Specifications

Measurement Type: Primary standard volumetric flow calibration
Measurement Range: 5 to 500 mL/min (0.005 to 0.5 LPM)
Accuracy: Percent-of-reading accuracy supported by NVLAP NIST ISO 17025 accreditation
Sampling Modes: Individual readings, continuous hands-free readings, or timed intervals from 1 to 60 minutes between readings
Calibration Standard: NVLAP NIST ISO 17025 accredited
Connectivity: Integrated serial PC interface with software for transferring flow data, automatic recording and graphing of flow measurements
Parameters Displayed: Selectable flow units: mL, L, cc or cfm
Intended Use: Low-flow calibration of personal air sampling pumps

Kit Contents

Bios Defender Calibrator, Inlet/Outlet Caps (2), Tubing for Calibration (1) 1/4” ID & (1) 1/8” ID, Luer Adapter (To Connect to Cassette), AC Power Cable for Charging, Calibration Certificates (emailed)
