Conductive Cyclone Nylon 10mm 1.7LPM by Zefon
Conductive Cyclone Nylon 10mm 1.7LPM by Zefon

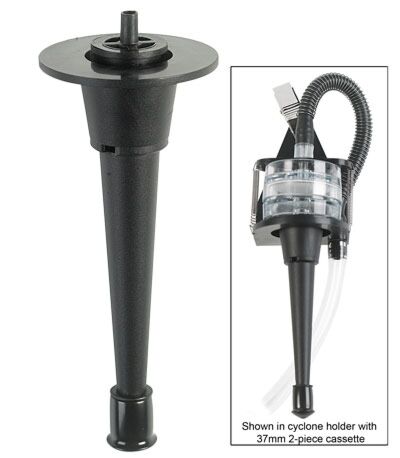

The Zefon® 10mm Conductive Nylon Cyclone (a static conductive replica of the 10mm “Dorr-Oliver” Nylon Cyclone) is used in conjunction with 37mm filter cassettes to separate dust particles by size with the respirable particles being collected on the filter and larger particles being removed. The collection efficiency curve meets the standards set forth by ACGIH/ISO/CEN for a respirable curve with a median 50% cut point of 4μ when operated at a flow rate of 1.7 LPM.
The Zefon 10mm Conductive Nylon Cyclone has been designed to precisely match the internal workings of the Dorr-Oliver 10mm nylon cyclones currently on the market. This results in performance characteristics which are identical, but also provides the added benefit of being static conductive. The external characteristics of the Zefon 10mm Nylon Conductive Cyclone have been designed for ease of use and is one of the lightest cyclones for users to wear.
A cassette/cyclone holder is required for use.
About This Product
The Zefon® 10mm Conductive Nylon Cyclone (a static conductive replica of the 10mm “Dorr-Oliver” Nylon Cyclone) is used in conjunction with 37mm filter cassettes to separate dust particles by size with the respirable particles being collected on the filter and larger particles being removed. The collection efficiency curve meets the standards set forth by ACGIH/ISO/CEN for a respirable curve with a median 50% cut point of 4μ when operated at a flow rate of 1.7 LPM.
The Zefon 10mm Conductive Nylon Cyclone has been designed to precisely match the internal workings of the Dorr-Oliver 10mm nylon cyclones currently on the market. This results in performance characteristics which are identical, but also provides the added benefit of being static conductive. The external characteristics of the Zefon 10mm Nylon Conductive Cyclone have been designed for ease of use and is one of the lightest cyclones for users to wear.
A cassette/cyclone holder is required for use.
Detailed specifications coming soon. Please contact us for more information.
