2.5 LPM 37mm Aluminum Cyclone for Respirable Dust by Zefon
2.5 LPM 37mm Aluminum Cyclone for Respirable Dust by Zefon
* Don't forget to add cyclone holders and cyclone calibration adapter to your rental if needed! See related products towards bottom of webpage *

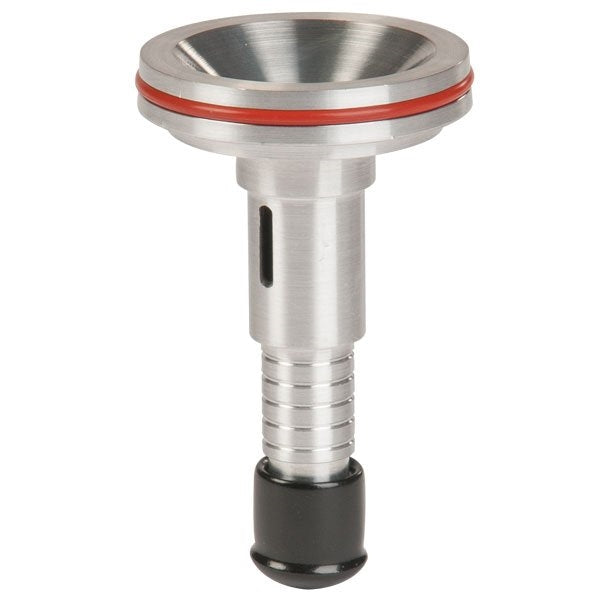

The Zefon® Respirable Dust Aluminum Cyclone is used in conjunction with 25mm or 37mm 3 piece filter cassettes to separate and remove larger particles from the respirable particles collected on the cassette’s filter. This Zefon cyclone is a replica of the SKC Aluminum Cyclone*. The inner workings have been precisely machined to exactly match that of the SKC Cyclone with only slight cosmetic changes to the exterior.
As a result, the collection efficiency curve meets the standards set forth by ACGIH/ISO/CEN for a respirable curve with a median 50% cut point of 4 micron at 2.5 LPM flowrate.
A cyclone holder and 25mm or 37mm 3 piece filter cassette are required for use of the Zefon Aluminum Cyclone. Both the Zefon Cassette Cyclone holder (#ZA0061) and the SKC holder (#225-1) are compatible with the Zefon Aluminum Cyclone. Cassettes must be purchased separately.
Features:
Aluminum construction is static conductive, eliminating interference.
Lightweight – 30 grams
Fully interchangeable with SKC Aluminum Cyclone
Specified in NIOSH method 0600 for Respirable Particulates, and NIOSH 7500 for Silica, Crystalline
*Performance tests indicate no statistical difference between the SKC Aluminum Cyclone and the Zefon Aluminum Cyclone
About This Product
* Don't forget to add cyclone holders and cyclone calibration adapter to your rental if needed! See related products towards bottom of webpage *
The Zefon® Respirable Dust Aluminum Cyclone is used in conjunction with 25mm or 37mm 3 piece filter cassettes to separate and remove larger particles from the respirable particles collected on the cassette’s filter. This Zefon cyclone is a replica of the SKC Aluminum Cyclone*. The inner workings have been precisely machined to exactly match that of the SKC Cyclone with only slight cosmetic changes to the exterior.
As a result, the collection efficiency curve meets the standards set forth by ACGIH/ISO/CEN for a respirable curve with a median 50% cut point of 4 micron at 2.5 LPM flowrate.
A cyclone holder and 25mm or 37mm 3 piece filter cassette are required for use of the Zefon Aluminum Cyclone. Both the Zefon Cassette Cyclone holder (#ZA0061) and the SKC holder (#225-1) are compatible with the Zefon Aluminum Cyclone. Cassettes must be purchased separately.
Features:
Aluminum construction is static conductive, eliminating interference.
Lightweight – 30 grams
Fully interchangeable with SKC Aluminum Cyclone
Specified in NIOSH method 0600 for Respirable Particulates, and NIOSH 7500 for Silica, Crystalline
*Performance tests indicate no statistical difference between the SKC Aluminum Cyclone and the Zefon Aluminum Cyclone
Features & Capabilities
| Monitoring Scope: | Personal Monitoring |
