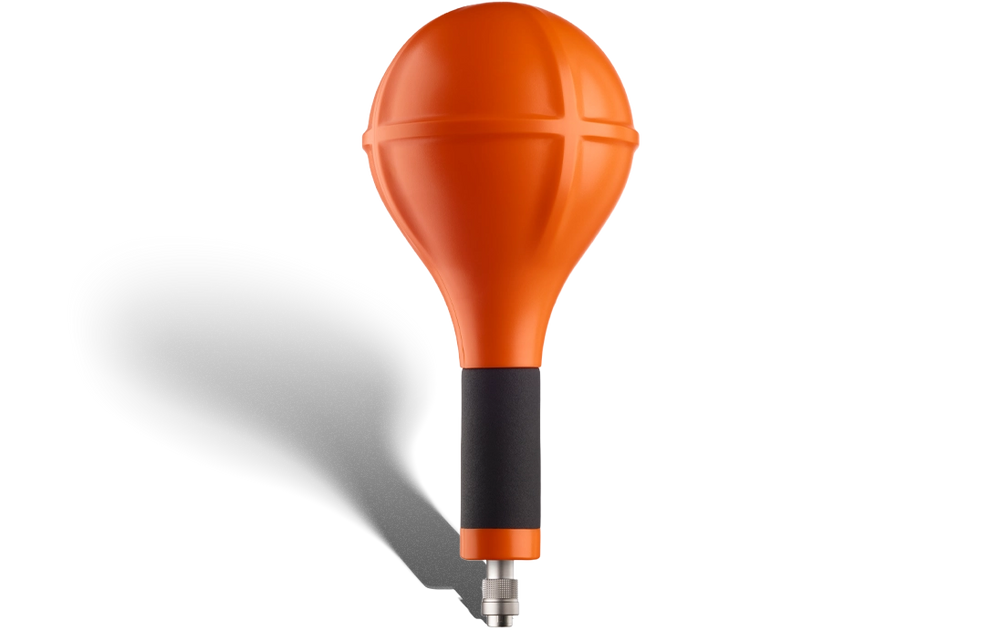

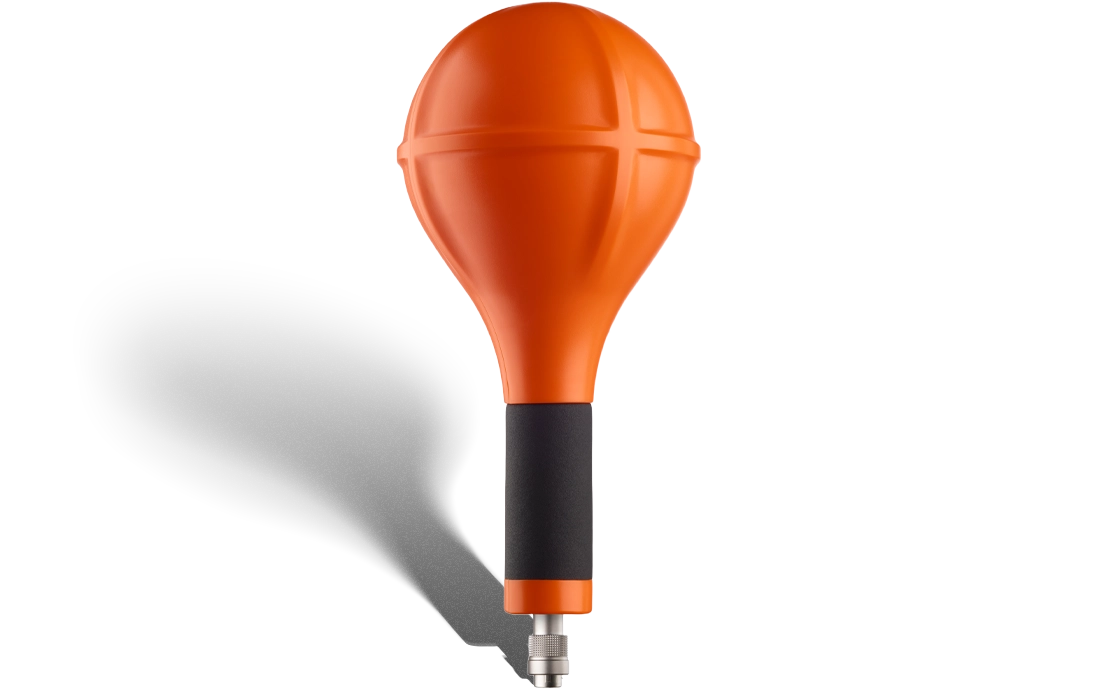

WP10M Field Probe
WP10M Field Probe
The Wavecontrol WP10M dual-field probe measures electric and magnetic fields from 1 Hz to 10 MHz with true RMS detection and FFT spectrum analysis. It provides 2 V/m to 100 kV/m electric field and 100 nT to 47 mT @ 50 Hz magnetic field measurement with Weighted Peak Method compliance and dual-band FFT.
Used to measure power-frequency electric field strength, magnetic flux density, ELF/VLF exposure, and low-frequency radio emissions, this probe is commonly applied in power grid and transformer compliance, railway EMF assessments (AC traction up to 25 kHz), industrial manufacturing exposure surveys (induction heating, RF welding), research lab personnel protection, and occupational safety evaluations near high-voltage lines, substations, and industrial RF equipment.
Common applications: automotive and electric vehicles, induction heating and welding, power plants and substations, RFID and anti-theft gates, medical equipment, and railway traction power. See EMF measurement by industry for the standards that apply.
Exposure Hazards This Equipment Detects
Radio Frequency Radiation (RF)
Electromagnetic Fields (EMF)
Equipment Specifications
| Component Role: | Interchangeable field probe for the SMP2/SMP3 EMF meters — determines which field types the meter measures, its frequency coverage and measurement ranges |
| Detection Method / Sensor Type: | Isotropic patented coil (100 cm² effective area) with dipole arrangement; true RMS with digital real-time peak detection on both E and H |
| Measured Parameters: | Electric field (E), Magnetic field (H) |
| Measurement Range: | Electric field: 2 V/m to 100 kV/m up to 80 kHz, 2 V/m to 47 kV/m from 80 kHz to 10 MHz. Magnetic field: 100 nT to 47 mT at 50 Hz, 100 nT to 4.7 mT from 500 Hz to 10 MHz |
| Frequency Range: | Full band: 1 Hz to 10 MHz. Low band: 1 Hz to 400 kHz |
| Resolution: | Electric field: <0.4 mV/m above 8 Hz. Magnetic field: <0.1 nT at 50 Hz, <0.05 nT above 100 Hz |
| Accuracy: | Typical uncertainty: E-field 0.67 dB, H-field 0.60 dB. Isotropy: E-field ±5%, H-field ±4% |
| Additional Features: | Weighted Peak Method (WPM) real-time compliance comparison. Full-band FFT spans: 10 kHz (25 Hz), 100 kHz (250 Hz), 1 MHz (2.5 kHz), 10 MHz (25 kHz). Low-band FFT spans: 400 Hz (1 Hz), 4 kHz (10 Hz), 40 kHz (100 Hz), 400 kHz (1 kHz). Noise level <2 V/m and <100 nT across 10 Hz-10 MHz. Damage level: E-field 200 kV/m up to 80 kHz, 47 kV/m from 80 kHz-10 MHz; H-field 100 mT at 50 Hz |
| Recalibration Interval: | 24 months recommended |
| Compatible Instruments: | WaveControl SMP2, WaveControl SMP3 |
| Operating Temperature Range: | 14°F to 122°F (-10°C to 50°C) |
| Size / Weight: | 280 mm x 128 mm dia (11.02 x 5.04 in); 220 g (0.485 lb) |
| Compliance Standards: | ICNIRP, EU Directive 2013/35/EU, IEEE, BGV B11 |
| Intended Use: | Power grid and transformer compliance, railway EMF assessment on AC traction up to 25 kHz, industrial exposure surveys (induction heating, RF welding), research lab personnel protection, and occupational safety near high-voltage lines, substations and industrial RF equipment |
