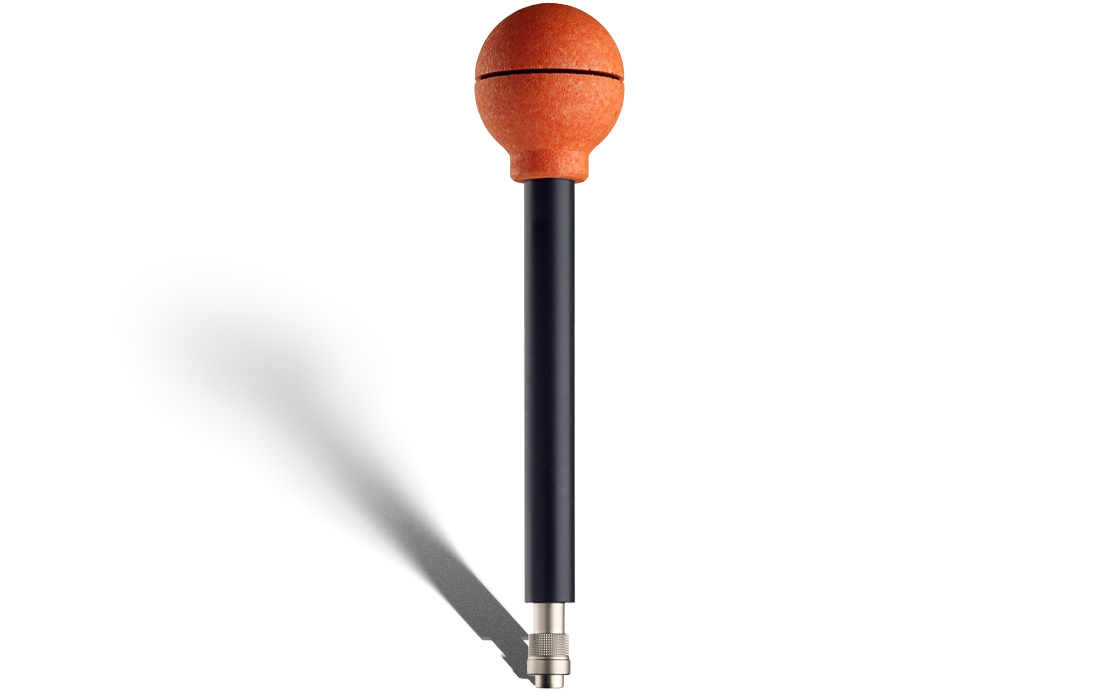

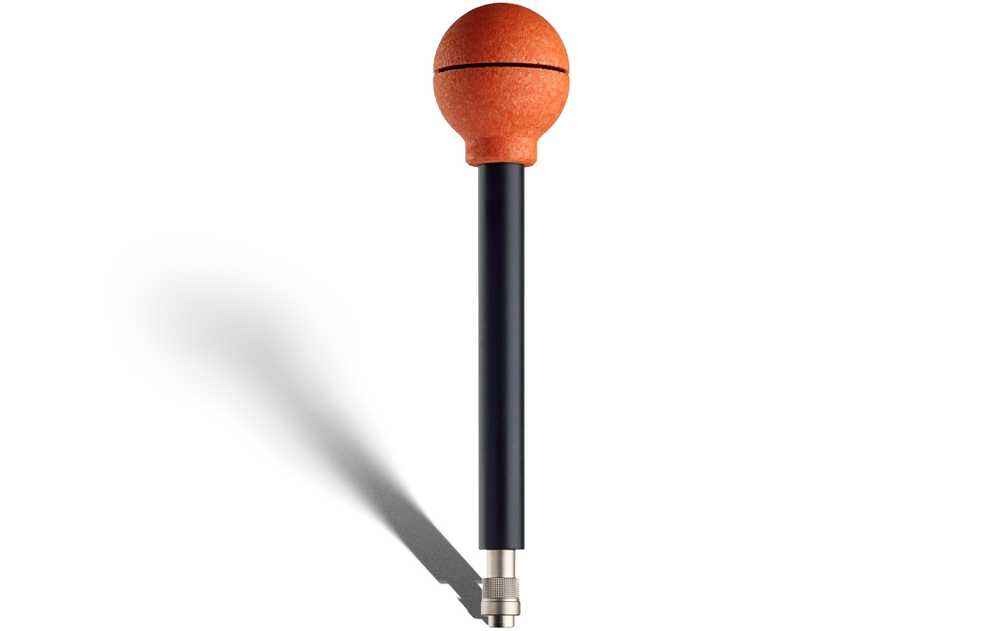

WPF18 Field Probe
WPF18 Field Probe
The Wavecontrol WPF18 isotropic electric field probe measures RF field strength from 300 kHz to 18 GHz with true RMS detection. It provides 0.5–250 V/m (CW) and 0.5–30 V/m (RMS) measurement ranges with 0.5 V/m sensitivity and 54 dB dynamic range.
Used to measure electric field strength, power density, and RF exposure levels, this probe is commonly applied in telecommunications audits (GSM, 3G, LTE, AM/FM, Wi-Fi), industrial RF process assessments, defense site compliance, and research lab personnel protection. The WPF18's high sensitivity (0.5 V/m) makes it ideal for low-level background measurements and compliance verification where precision matters.
Common applications: cell sites and broadcast transmitters, radar and aerospace, R&D labs, RF heating and drying, diathermy and electrosurgery, and railway communications. See EMF measurement by industry for the standards that apply.
Exposure Hazards This Equipment Detects
Radio Frequency Radiation (RF)
Electromagnetic Fields (EMF)
Equipment Specifications
| Component Role: | Interchangeable field probe for the SMP2/SMP3 EMF meters — determines which field types the meter measures, its frequency coverage and measurement ranges |
| Detection Method / Sensor Type: | Isotropic, true RMS diode technology |
| Measured Parameters: | Electric field (E) |
| Measurement Range: | Standard: 0.5 to 250 V/m (CW), 0.5 to 30 V/m (RMS). WPF18-HP version: 0.5 to 1,000 V/m (CW), 0.5 to 30 V/m (RMS) |
| Frequency Range: | 300 kHz to 18 GHz |
| Dynamic Range: | 54 dB standard; 66 dB on the HP version |
| Resolution: | Sensitivity 0.5 V/m; resolution <5% |
| Accuracy: | Frequency response ±2 dB (1 MHz-5 GHz), +0/-6 dB (5-18 GHz). Linearity ±0.5 dB (1-150 V/m). Isotropic deviation ±1.2 dB up to 10 GHz, ±3 dB from 10-18 GHz |
| Additional Features: | 50/60 Hz attenuation >80 dB — best-in-class power-line rejection. High 0.5 V/m sensitivity suits low-level background measurement and compliance verification |
| Calibration Standard: | ISO 17025 accredited (ILAC) |
| Recalibration Interval: | 24 months recommended |
| Compatible Instruments: | WaveControl SMP2, WaveControl SMP3 |
| Operating Temperature Range: | -4°F to 122°F (-20°C to 50°C) |
| Size / Weight: | 28.4 cm x 6 cm dia (11.2 x 2.4 in); 95 g (3.4 oz) |
| Intended Use: | Telecommunications audits (GSM, 3G, LTE, AM/FM, Wi-Fi), industrial RF process assessment, defence site compliance, and research lab personnel protection |
