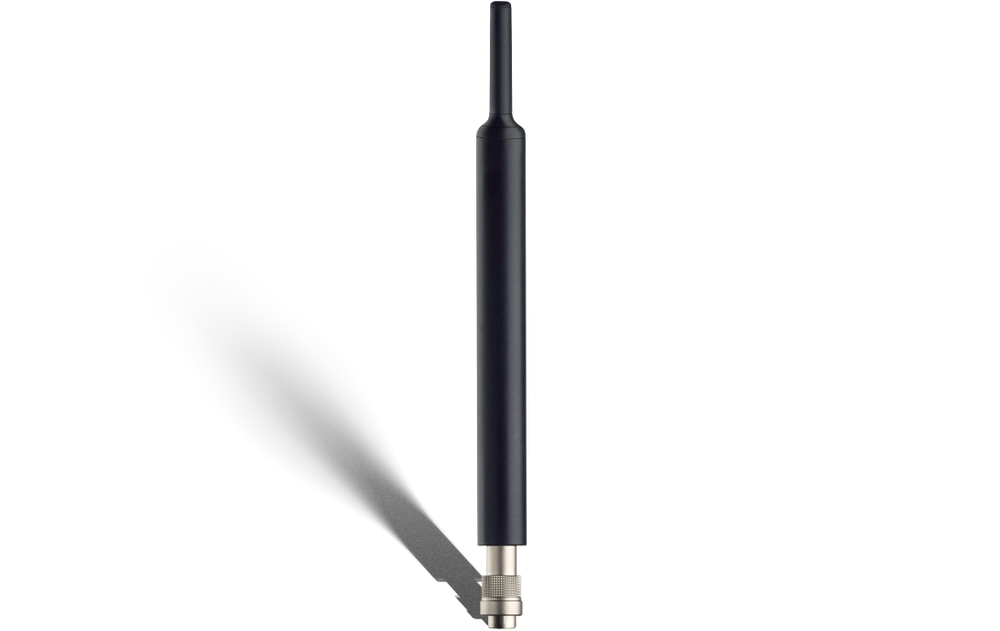

WPH-DC Isotropic Probe
WPH-DC Isotropic Probe
The Wavecontrol WPH-DC triaxial Hall sensor probe measures static and time-variable magnetic fields from DC to 40 kHz with true RMS capability. It provides 10 µT to 10 T measurement range with >120 dB dynamic range, overload protection to 20 T, and FFT spectrum analysis.
Used to measure static magnetic flux density, ELF (extremely low frequency) magnetic fields, and time-varying low-frequency fields, this probe is commonly applied in electric vehicle and battery manufacturing, DC-powered railway environments, MRI fringe field mapping, permanent magnet facilities, industrial electrolysis, and occupational exposure assessments near DC generators and high-current systems.
Common applications: automotive and electric vehicles, industrial electrolysis and high-current DC processes, MRI rooms, and DC railway. See EMF measurement by industry for the standards that apply.
Exposure Hazards This Equipment Detects
Radio Frequency Radiation (RF)
Electromagnetic Fields (EMF)
Features & Capabilities
| Calibration Certificate Available: | ✓ Yes |
| Datalogging: | ✓ Yes |
Equipment Specifications
| Component Role: | Interchangeable field probe for the SMP2/SMP3 EMF meters — the only probe in the range that measures static (DC) magnetic fields |
| Detection Method / Sensor Type: | Triaxial Hall sensor with true 3-axis measurement |
| Measured Parameters: | Magnetic field (static and time-varying) |
| Measurement Range: | 10 µT to 10 T; overload protection to 20 T |
| Frequency Range: | DC (0 Hz) to 40 kHz |
| Dynamic Range: | greater than 120 dB |
| Accuracy: | Linearity 0.6% (100 µT-1 T), 1% (100 µT-2.4 T) |
| Sampling Modes: | Static (0 to 1 Hz), static plus variable (0 to 40 kHz), or variable only (1 Hz to 40 kHz) |
| Additional Features: | Low-pass filter options: 1 Hz for pure static field measurement, or none for full bandwidth. FFT spectrum spans 40 Hz, 400 Hz, 4 kHz and 40 kHz, user-selectable. Display modes show static field with axis information, plus RMS, Peak and FFT with axis information. 5-meter extension cable recommended |
| Recalibration Interval: | 24 months recommended |
| Compatible Instruments: | WaveControl SMP2, WaveControl SMP3 |
| Size / Weight: | 273 mm x 21 mm dia (10.7 x 0.8 in); sensor stick 9.4 mm dia (0.37 in); 90 g (3.2 oz) |
| Intended Use: | Electric vehicle and battery manufacturing, DC-powered railway environments, MRI fringe field mapping, permanent magnet facilities, industrial electrolysis, and occupational exposure assessment near DC generators and high-current systems |
