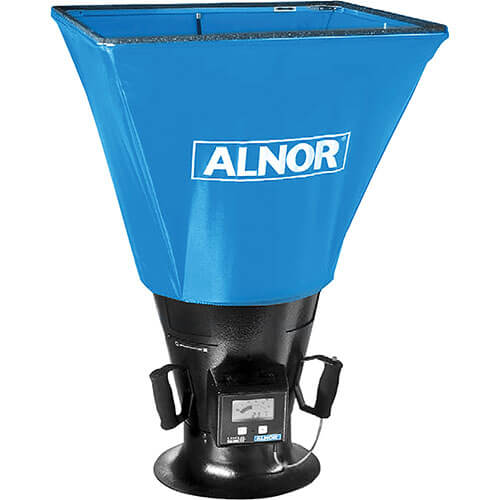

The 6200D LoFlo Balometer by TSI Alnor is a low-flow capture hood designed for precise airflow measurement at small diffusers, slot diffusers, and low-volume registers where standard balometers are too large or inaccurate. It measures airflow from 10–500 CFM with an accuracy of ±3% ±5 CFM and weighs just 6.5 lbs for easy one-person operation. With a battery life of over 10 hours, it is well-suited for HVAC balancing, cleanroom qualification, laboratory fume hood testing, and energy audit work where small-opening measurement accuracy is critical.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent
Purchase
Rental Rates
Daily
$125.00
Weekly
$300.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
See more product details
Need Help Choosing?
Our rental specialists can help you select the right equipment for your specific application.
Call 866-736-8347
1
Choose Purchase Option
Rent short-term or buy to own
Required
Rental Period What are these dates?

No rental period selected

Set your dates to see pricing.

Rental Period What are these dates?
—
Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.

Need equipment sooner than the dates shown? We can often accommodate rush rentals. Call us at 866-736-8347 to confirm availability.

Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Your Configuration

6200D LoFlo Balometer by TSI Alnor - Capture Hoods for Low Air Volumes
unit quantity
× $125.00
$125.00 Select dates
Subtotal:
$125.00
Select dates
Technician verified and tested instrumentation before every rental
Expert support available by phone and email
Fast delivery and flexible rental terms
What is the TSI Alnor 6200D LoFlo Balometer used for?
It measures supply and return air volume at diffusers and grilles in low-flow HVAC applications — labs, cleanrooms, isolation rooms, and variable air volume systems where a standard capture hood's resistance would distort the reading. Measurement range is 10–500 CFM.
LoFlo 6200D vs. standard EBT731 capture hood — which do I need?
Use the LoFlo when expected flows are below 500 CFM or when added hood resistance could affect accuracy, particularly in critical environments. Use the EBT731 (25–2,500 CFM) for standard commercial HVAC commissioning where flows are well above the low-flow range.
Why do low-flow diffusers require a different capture hood?
At low flow rates, a standard hood's internal resistance can measurably change the airflow it's trying to measure. The LoFlo is designed to minimize this effect so you measure the system's actual performance rather than the hood's influence.
Does the LoFlo 6200D have onboard datalogging?
No — it's real-time display only. If your deliverable requires logged datasets, plan to record readings manually or select a logging-capable instrument.
How do I get consistent readings with the LoFlo 6200D on the same diffuser?
Center the hood, ensure no gaps at the diffuser face, and keep orientation consistent across readings. Allow readings to stabilize before recording. HVAC cycling can cause variation — document fan speed and system state with each measurement.
What's included in the LoFlo 6200D Balometer rental kit?
Balometer base, 2×2 ft hood with frame and poles, user manual, carrying case, and calibration certificate.
What does it cost to rent the LoFlo 6200D Balometer?
$125/day and $300/week. Pricing beyond two weeks is by quote. For lab or cleanroom TAB projects with many low-flow diffusers, the weekly rate is typically more economical — most multi-room certification projects take more than two days.

Exposure Hazards This Equipment Detects

Air Velocity (CFM / ft/min)

CAS: N/A
Learn More
Updated on March 09, 2026
PEL TWA
no limits assigned
REL TWA
no limits assigned
TLV TWA
no limits assigned

Features & Capabilities

Calibration Certificate Available: ✓ Yes
Monitoring Scope: Area Monitoring

Equipment Specifications

Type/Class Rating: Capture Hood — Low-Flow Balometer
Measured Parameters: Airflow (Volumetric)
Measurement Range: 10–500 CFM (17–850 m³/h, 4.7–236 L/s)
Resolution: 1 CFM (or 1 L/s / 0.1 L/s depending on range)
Accuracy: ±3% of reading + 5 CFM (±3% + 8.5 m³/h, 2.4 L/s)
Compatible Probes / Accessories: 16×16 in. hood, 2×2 ft hood
Data Logging Capacity: Not equipped — real-time display only
Battery Run Time: 4 C-size alkaline batteries; minimum 10 hours continuous use
Size / Weight: ~6 lbs (2.7 kg) with hood; 4.6 lbs (2.1 kg) base only

Kit Contents

6200 LoFlo Balometer, 2 x 2 Hood, Hood Kit Frame (4 Pieces), Hood Kit Poles (4), User Manual, Carrying Case, Calibration Certificate
