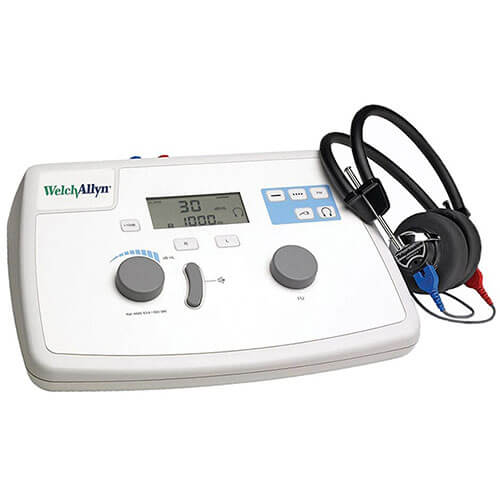

AM282 by Welch Allyn - Portable Audiometer
AM282 by Welch Allyn - Portable Audiometer
Welch Allyn's AM282 is a precision table-top screening audiometer for fast, accurate hearing assessments for hearing screening programs in industrial environments. The clear front-panel controls make it easy to use, and the full frequency range provides accuracy and reliability across a variety of uses.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$110.00
Weekly
$285.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
When is portable audiometric testing appropriate vs. a fixed audiometric booth?
Portable audiometers are used for on-site testing when a fixed booth isn't available. OSHA requires testing in an environment meeting ANSI S3.1 background noise limits. Verify ambient noise levels at your test location before using the AM282 on-site — if levels exceed ANSI limits, a sound booth or mobile audiometric van is required.
What is the Welch Allyn AM282 used for?
It's a portable audiometer for occupational hearing testing under OSHA 29 CFR 1910.95 and similar hearing conservation program requirements. It performs pure-tone air conduction threshold testing across standard audiometric frequencies (500, 1000, 2000, 3000, 4000, 6000, and 8000 Hz) to detect standard threshold shifts in noise-exposed workers.
What does it cost to rent the Welch Allyn AM282 Audiometer?
Contact RAECO Rents for current daily and weekly rates. For annual hearing conservation programs testing large worker populations across one or more days, contact us for a project quote — audiometric testing events typically run one to several days depending on worker count.
Is the AM282 appropriate for OSHA-required occupational audiometric testing?
Yes — it's designed for occupational audiometric surveillance. An audiometric calibration certificate is included with RAECO Rents rentals. Testing must be administered by a qualified professional as required by OSHA 1910.95 and your written hearing conservation program.
AM282 vs. a clinic-based audiometric evaluation — what's the difference?
The AM282 provides the occupational baseline and annual audiometric testing required by OSHA 1910.95 for noise-exposed workers. Clinical audiology evaluations are used when a standard threshold shift is confirmed and a referral for medical evaluation is indicated. Both serve different stages of the hearing conservation process.
What's included in the AM282 rental kit?
The AM282 audiometer, headset, audiometric calibration certificate, and carrying case. Confirm the software and cable for data export if your program requires electronic recordkeeping.
Features & Capabilities
| Monitoring Scope: | Personal Monitoring |
Equipment Specifications
| Type/Class Rating: | Type 4 (ANSI S3.6-2004 and IEC 60645-1:2002) |
| Testing Type: | Single-channel, pure tone, air conduction only |
| Intensity Range: | 5 dB steps — 125 Hz: -10 to 50 dB HL; 250 and 8000 Hz: -10 to 70 dB HL; 500 to 4000 Hz: -10 to 90 dB HL; 6000 Hz: -10 to 85 dB HL. A +10 dB button extends the maximum by 10 dB at all frequencies. Maximum output is reduced by 10 dB when insert phones are used (20 dB at 6 kHz). |
| Frequency Range: | 11 discrete frequencies: 125, 250, 500, 750, 1000, 1500, 2000, 3000, 4000, 6000, 8000 Hz (±2% accuracy) |
| Stimulus Types: | Continuous (steady while present bar depressed), Pulsed (2.5 pulses/sec), FM (±5%, 5 Hz triangular modulation) |
| Dynamic Range: | Signal-to-noise ratio >70 dB |
| Total Harmonic Distortion: | <2.5% (measured acoustically below 5000 Hz; measured electrically above 5000 Hz) |
| Accuracy: | 125 to 4000 Hz: ±3 dB; 6000 to 8000 Hz: ±5 dB |
| Headset / Transducer: | DD45 external audiometry headset with Type 51 cushions (10 ohm impedance); headband force 4-5 N at 145 mm separation. Calibration storage for standard earphones and optional insert phones. |
| Operating Temperature Range: | 59°F to 104°F (15°C to 40°C); 10-minute warm-up required for instruments stored at room temperature |
| Battery Run Time: | Minimum 10 hours on either battery type; Low Battery icon displays at approximately 1 hour remaining |
| Power Supply: | Universal autoranging AC-DC adapter, 90-264 V at 47-63 Hz, 1.5 W consumption; or 5x AA batteries (alkaline 1.5 V, or rechargeable NiCad/NiMH 1.2 V). Note: the instrument does not provide a recharging circuit. |
| Size / Weight: | 12.59in W x 8.76in D x 3.18in H (32 x 22.3 x 8.1 cm); 2.55 lbs (1.16 kg) with 5 AA batteries |
| Compliance Standards: | ANSI S3.6 (2004) Specification for Audiometers — Type 4, IEC 60645-1 (2002) Pure Tone Audiometers — Type 4, IEC 60601-1 (2003) Medical Electrical Equipment Safety, UL 60601-1, CAN/CSA-C22.2 No. 601.1-M90 (2003), IEC/EN 60601-1-2 (2001) Electromagnetic Compatibility |
| Intended Use: | Screening audiometry for identification of hearing loss; used by audiologists, ENTs, or trained technicians for hearing conservation and OSHA compliance testing |
Kit Contents
Manufacturer Resources
Documents
User manuals, safety guides, and technical documentation from the manufacturer:
Videos
No manufacturer videos are currently available for this product. Check back later or contact us for more information.
