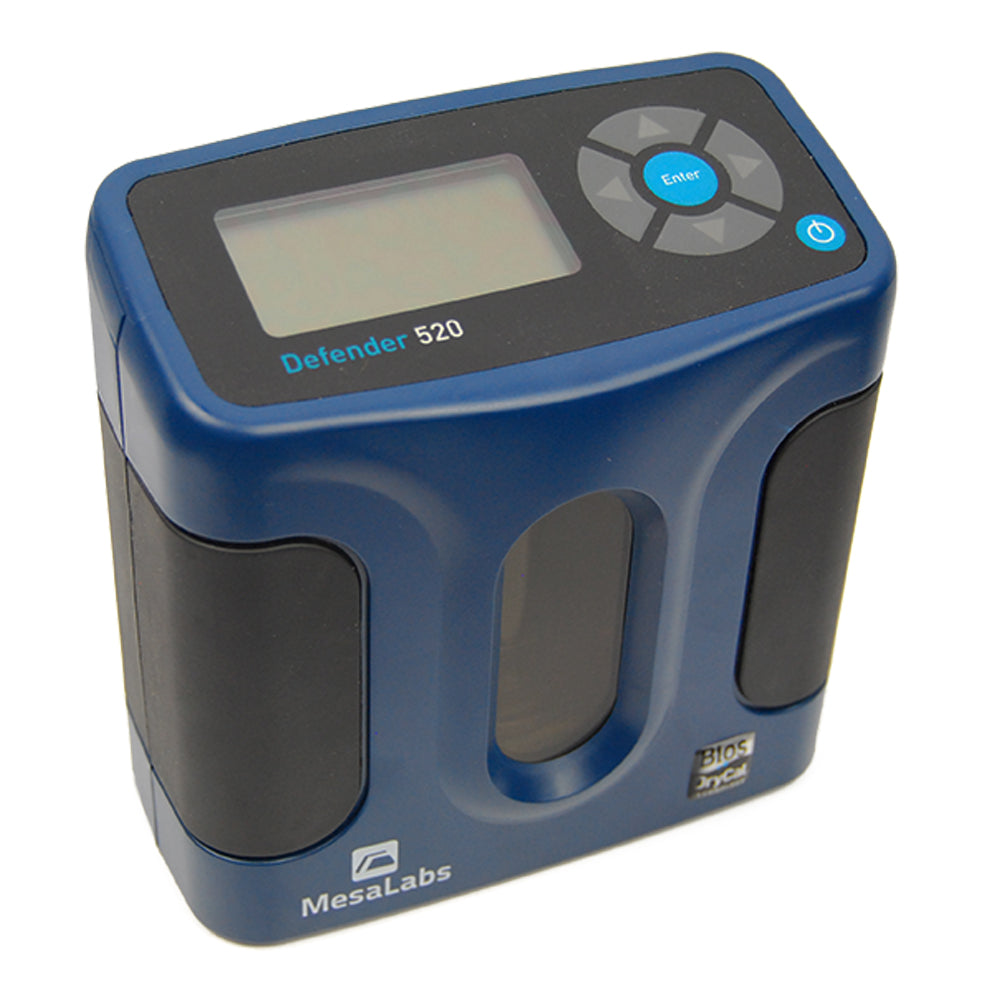

Bios Defender 520M (0.05-5LPM) by Mesa Labs Bios

Personal Monitoring
Air Sampling Flow Calibrator Manufacturer: Mesa Labs Bios
Bios Defender 520M (0.05-5LPM) by Mesa Labs Bios
Training
Available
Bios Defender 520M (0.05-5LPM) by Mesa Labs Bios
Bios Defender 520M (0.05-5LPM) by Mesa Labs Bios
Training
How to Calibrate a Gilair Plus Air Sampling Pump Using BIOS Defender 520: Step-by-Step Guide

The Bios Defender 520M by Mesa Labs is a primary liquid-free gas flow calibration standard offering a measurement range of 0.05–5 LPM, providing traceable volumetric flow verification without the need for bubbles or liquids. Its pushbutton interface allows users to set engineering units, temperature compensation, and continuous or burst measurement modes in seconds, and it simultaneously records ambient temperature and pressure for a complete audit trail. It is the preferred calibration standard for industrial hygiene air sampling programs, verifying pump flow rates for compliance sampling of chemical vapors, dust, and other occupational exposures.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent
Purchase
Rental Rates
Daily
$65.00
Weekly
$160.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
See more product details
Need Help Choosing?
Our rental specialists can help you select the right equipment for your specific application.
Call 866-736-8347
1
Choose Purchase Option
Rent short-term or buy to own
Required
Rental Period What are these dates?

No rental period selected

Set your dates to see pricing.

Rental Period What are these dates?
—
Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.

Need equipment sooner than the dates shown? We can often accommodate rush rentals. Call us at 866-736-8347 to confirm availability.

Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Your Configuration

Bios Defender 520M (0.05-5LPM) by Mesa Labs Bios
unit quantity
× $65.00
$65.00 Select dates
Subtotal:
$65.00
Select dates
Technician verified and tested instrumentation before every rental
Expert support available by phone and email
Fast delivery and flexible rental terms
What flow range does the Defender 520M cover, and which pumps suit it?
50 to 5,000 mL/min (0.05 to 5 LPM). That covers most personal sampling pumps running filter cassettes and cyclones in the 1 to 4 L/min band. Below 50 mL/min, for low-flow sorbent tube sampling, you need the 520L. Above 5 L/min, for area and high-volume samplers, you need the 520H.
Is the Defender 520M a primary standard calibrator?
Yes. It measures volumetric flow directly rather than inferring it from pressure or velocity, and its percent-of-reading accuracy is supported by NVLAP NIST ISO 17025 accreditation. That makes it suitable as the reference instrument for calibrating and verifying sampling pumps rather than something that itself needs checking against another device in the field.
How do the Defender 520L, 520M and 520H differ?
Only in flow range. The 520L covers 5 to 500 mL/min, the 520M covers 50 to 5,000 mL/min, and the 520H covers 300 to 30,000 mL/min. Interface, accuracy basis, selectable units and PC software are identical across all three, so choose purely on the flow rate your pump runs at.
Can it take readings without someone holding it?
Yes. You can take single readings, run continuous hands-free readings, or set it to read automatically at intervals from 1 to 60 minutes. The interval mode is useful when you want to document flow stability over a sampling period rather than just capture pre- and post-shift checks.
Which flow units can the Defender display?
mL, L, cc or cfm, selectable on the instrument. This matters when your sampling method specifies one unit and your pump reads in another, since it removes a manual conversion step from the calibration record.
Can I get the readings onto a computer?
Yes. An integrated serial PC interface and accompanying software transfer flow data to a computer, then record and graph the measurements automatically. That gives you a documented calibration trail without transcribing readings by hand.
Does the rental include calibration documentation?
Every RAECO Rents instrument ships NIST-traceable calibrated. If your project requires the certificate to fall within a specific window relative to your sampling dates, let us know before the rental so we can confirm the calibration date on the unit you receive.

Features & Capabilities

Calibration Certificate Available: ✓ Yes
Monitoring Scope: Personal Monitoring

Equipment Specifications

Measurement Type: Primary standard volumetric flow calibration
Measurement Range: 50 to 5,000 mL/min (0.05 to 5 LPM)
Accuracy: Percent-of-reading accuracy supported by NVLAP NIST ISO 17025 accreditation
Sampling Modes: Individual readings, continuous hands-free readings, or timed intervals from 1 to 60 minutes between readings
Calibration Standard: NVLAP NIST ISO 17025 accredited
Connectivity: Integrated serial PC interface with software for transferring flow data, automatic recording and graphing of flow measurements
Parameters Displayed: Selectable flow units: mL, L, cc or cfm
Intended Use: Medium-flow calibration of personal and area air sampling pumps

Kit Contents

Bios Defender Calibrator, Inlet/Outlet Caps (2), Tubing for Calibration (1) 1/4” ID & (1) 1/8” ID, Luer Adapter (To Connect to Cassette), AC Power Cable for Charging, Calibration Certificates (emailed)

Manufacturer Resources

Documents

User manuals, safety guides, and technical documentation from the manufacturer:

Videos

Product demonstrations and instructional videos from the manufacturer:
