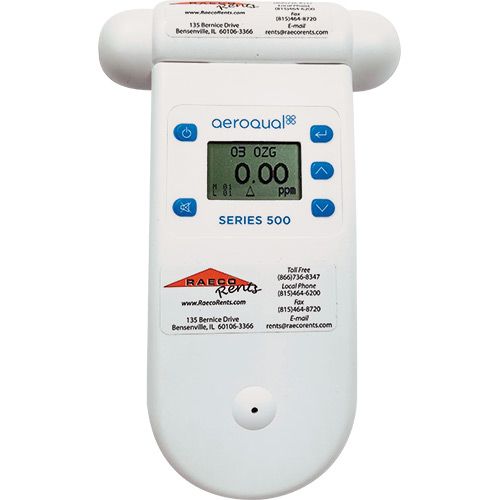

AeroQual Series 500 - Portable Ozone Monitor
AeroQual Series 500 - Portable Ozone Monitor
The AeroQual Series 500 is a portable ozone monitoring platform compatible with interchangeable sensor modules for ozone and other gas measurements. This gently used unit is available for sale and comes with a charger, hard plastic carrying case, PC communication cables, and a flash drive with software and manuals. Sensors are not included with this sale. For rental applications, the AeroQual Series 500 has been replaced by the Aeroqual Ranger Portable Ozone Monitor.
Choose Your Option
Rent for flexible short-term use or purchase to own
What is this AeroQual Series 500 listing?
This is a used AeroQual Series 500 base monitor platform — a portable monitor body that normally works with removable sensor heads. It's sale-only and does not include any sensor head, so it isn't a ready-to-measure ozone monitor out of the box. If you need an ozone rental, the AeroQual Ranger is the replacement.
Is the AeroQual Series 500 available to rent?
No — it's for sale only, and the S500 rental has been replaced by the Ranger Portable Ozone Monitor. For a short-term IAQ, remediation, or ozone generator job, renting the Ranger avoids the sensor-selection and calibration uncertainty of buying a used base unit.
Does the used Series 500 sale include any sensors?
No — the sale does not include any sensors. The Series 500 is a platform; without a sensor head installed, you won't get gas readings. Before purchase, confirm which sensor head you need, its availability, and whether its calibration status meets your reporting requirements.
What's included with the used Series 500 base unit?
A charger, hard plastic carrying case, PC communication cables, and a flash drive with software and manuals. That powers the base unit and manages data workflows, but provides no measurement capability without a sensor head.
Is calibration guaranteed on the used Series 500 units?
No — calibration is not guaranteed. Some units may still be within calibration, but that isn't assured. If you need defensible documentation, plan to verify calibration status and budget time for recalibration after purchase.
AeroQual Series 500 vs. AeroQual Ranger — which should I choose?
Choose the Series 500 if you want to own a modular platform and are prepared to manage sensor selection and calibration. Choose the Ranger when you need an ozone-focused tool for a project with a ready-to-use workflow, correct sensor heads, and documentation included. The Ranger is the rental replacement.
How much does the used AeroQual Series 500 cost?
The listed used purchase price is $1,000, but posted pricing can change. Confirm the live product page for current pricing at the time you order.
Exposure Hazards This Equipment Detects
Ozone (O₃)
CAS:
10028-15-6
Learn More
Updated on March 09, 2026
PEL TWA
0.1 ppm (0.2 mg/m³)
REL TWA
N/A
TLV TWA
Heavy work: 0.05 ppm (0.10 mg/m³); Moderate work: 0.08 ppm (0.16 mg/m³); Light work: 0.10 ppm (0.20 mg/m³) [1995]
Features & Capabilities
| Datalogging: | ✓ Yes |
Equipment Specifications
| Detection Method / Sensor Type: | Interchangeable sensor head — OZL gas-sensitive semiconductor (GSS) for low range, or EOZ gas-sensitive electrochemical (GSE) for high range |
| Target Gas/Analyte: | Ozone (O3) |
| Measurement Range: | OZL (GSS, low range): 0 to 0.5 ppm. EOZ (GSE, high range): 0 to 10 ppm |
| Relative Humidity Range: | Monitor: 0% to 95% non-condensing. OZL sensor head: 10% to 90% RH. EOZ sensor head: 15% to 90% RH |
| Response Time: | 60 seconds |
| Resolution: | OZL: 0.001 ppm. EOZ: 0.01 ppm |
| Accuracy: | OZL: <±0.008 ppm from 0-0.1 ppm, <±10% from 0.1-0.5 ppm. EOZ: <±0.01 ppm + 7.5% of reading. Minimum detection limit OZL 0.001 ppm, EOZ 0.01 ppm |
| Sampling Modes: | Real-time reading with minimum, maximum and average measurement cycle |
| Alarm Features: | Audible low and high alarm with user-set alarm points; temporary or permanent mute |
| Additional Features: | Sensor warm-up: 3 minutes warming up then 7 minutes stabilising. New or long-unused ozone sensors may require up to 24 hours to burn off contaminants |
| Calibration Method: | Factory calibration with certificate, or field zero and span calibration via the Series 500 base. Ozone span calibration requires an ozone generator — ozone cannot be supplied from a cylinder |
| Connectivity: | RS232 with USB converter; 0-5V analogue output; external transistor outputs for alarm and control (12 VDC or switch to GND, 150 mA max) |
| Display: | LCD with status indicators for battery, sensor, standby, mute, high/low alarm, monitor ID and location ID |
| Operating Temperature Range: | Monitor: 23°F to 113°F (-5°C to 45°C). Sensor heads: 32°F to 104°F (0°C to 40°C) |
| Protection Class: | IP20 and NEMA 1 equivalent; PC and ABS enclosure |
| Data Logging Interval: | User-selectable in 1-minute increments |
| Data Storage Capacity: | 8,188 data points total, divided by the number of parameters logged |
| Battery Run Time: | Approximately 8 hours depending on sensor head; 3 hours to full charge. Ni-MH 9.6V 2100mA/h or Lithium 11.1V |
| Power Supply: | 12V DC via supplied 100-250V AC adaptor/charger |
| Size / Weight: | 195 x 122 x 54 mm with sensor head; under 460 g with sensor head and battery |
| Regulatory Certifications: | FCC Part 15, EN 50082-1:1997, EN 50081-1:1992 |
