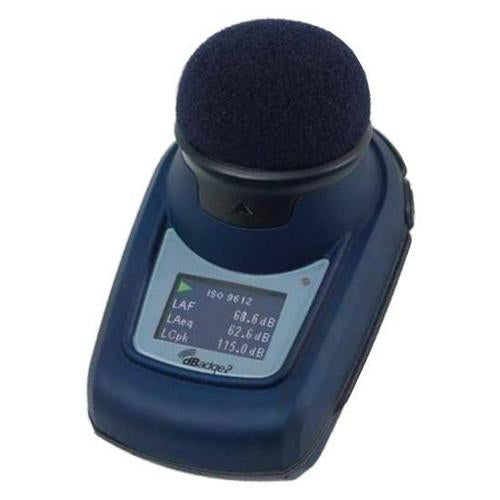

dBadge2IS by Casella - Personal Noise Dosimeter
dBadge2IS by Casella - Personal Noise Dosimeter
The Casella dBadge2IS is an intrinsically safe personal noise dosimeter with Bluetooth connectivity for Android and Apple devices, designed for personal noise assessment in hazardous environments including oil and gas, petrochemical, and pharmaceutical industries. Using the Airwave app, users can remotely view status and start, stop, or pause measurements from a mobile phone, while the dashboard display provides data at a glance with the ability to email data with photos and notes directly to a PC. Battery life is about 35+ hours per charge.
Unless a specific configuration request is made prior to rental, all dBadge2IS units are preconfigured with OSHA HC, OSHA PEL, and ACGIH settings.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$70.00
Weekly
$185.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the Casella dBadge2IS and why is intrinsic safety important for noise dosimetry?
The Casella dBadge2IS is an intrinsically safe personal noise dosimeter certified for use in ATEX Zone 1/Zone 2 and NEC Class I, Div 1/Div 2 classified hazardous locations. Most noise dosimeters are not intrinsically safe and cannot be used in flammable/explosive environments such as refineries, chemical plants, and oil and gas facilities. The dBadge2IS allows workers in classified areas to be monitored for noise exposure simultaneously with gas hazard monitoring.
What noise measurement parameters does the dBadge2IS record?
The dBadge2IS records Lavg/Leq, Lmax, Lpk, TWA, dose, and STEL with configurable exchange rates (3 dB, 4 dB, 5 dB) and criterion levels. It supports both OSHA and international noise standards.
How does the dBadge2IS compare to the TSI Quest Edge 5?
The Edge 5 offers octave band analysis and Bluetooth wireless data download via TSI DMS software, but is not intrinsically safe. The dBadge2IS is intrinsically safe for Zone 1 environments and provides standard dosimetry measurements but without octave band capability. For hazardous classified areas, the dBadge2IS is the compliant choice.
Is the dBadge2IS MSHA-approved?
Yes. The dBadge2IS carries MSHA approval, making it suitable for underground and surface mining operations in addition to chemical and oil/gas classified areas.
How long does the dBadge2IS battery last?
The dBadge2IS provides approximately 40 hours of runtime, suitable for multi-shift noise sampling campaigns.
What is the dBadge2IS rental rate from RAECO Rents?
Contact RAECO Rents at 866-736-8347 for current dBadge2IS daily and weekly rental pricing. Rental includes the dosimeter, windscreen, calibrator, Casella Insight software, and documentation.
Exposure Hazards This Equipment Detects
Noise (dBA)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
90 dBA
REL TWA
85 dBA
TLV TWA
85 dBA
Features & Capabilities
| Calibration Certificate Available: | ✓ Yes |
| Datalogging: | ✓ Yes |
| Intrinsically Safe: | ✓ Yes |
| Monitoring Scope: | Personal Monitoring |
Equipment Specifications
| Type/Class Rating: | Type 2 |
| Measurement Range: | Linear operating range 54.0 to 140.3 dB(A) RMS; Peak 90.0 to 143.3 dB (C or Z) |
| Relative Humidity Range: | 30% to 90% RH, non-condensing (within ±0.5 dB) |
| Pressure Range: | 85 to 112 kPa (within ±0.5 dB) |
| Frequency Weighting: | A, C, Z |
| Time Weighting: | Fast, Slow, Impulse |
| Response Time: | Fast, Slow, Impulse |
| Exchange Rate: | 3 dB, 5 dB |
| Octave Filters: | Not available on this model |
| Dynamic Range: | 96 dB |
| Virtual Dosimeters: | Up to 3 (D1, D2, D3 - OSHA PEL, OSHA HC, ACGIH, ISO, or custom) |
| Additional Measurements: | Sound exposure range 0.0 to 6,100.0 Pa²h; 0.00 to 22,000,000.00 Pa²s; 0.0 to 100,000.0% dose |
| Additional Features: | Threshold and criterion level each 70 to 90 dB in 1 dB steps (set via Casella Insight Data Management Software). Under-range indication below 54 dB; overload indication 140.4 dB RMS; peak overload 143.4 dB Peak linear. Stabilisation under 3 seconds after power-up. Real-time clock accurate to better than 1 minute per month. Magnetic field effect negligible |
| Bluetooth: | ✓ Yes |
| Voice & Audio Recording: | Up to 15 seconds voice notes |
| Operating Temperature Range: | 0°C to +40°C (IEC 61252 compliance); -10°C to +50°C (within ±0.8 dB); -20°C to +45°C (intrinsic safety ambient); +5°C to +45°C (battery charging) |
| Storage Temperature Range: | -10°C to +50°C |
| Data Logging Interval: | 1-second time history profiling |
| Data Storage Capacity: | 300 hours of run data (including 1-second profile data), plus up to 90 minutes of event audio recording |
| Battery Run Time: | Typically 55 hours (broadband mode). Internal NiMH, 800 mAh |
| Compliance Standards: | ANSI S1.25:1991 (R2007), IEC 61252 Ed. 1.1 (2002-3) |
Kit Contents
Manufacturer Resources
Documents
User manuals, safety guides, and technical documentation from the manufacturer:
- DBadge 2 Brochure PDF
- DBadge 2 Manual PDF
- DBadge 2 Quick Start Guide PDF
- DBadge 2: What's in the box PDF
- Casella Airwave Manual PDF
- DBadge 2 Download Utility PDF
Videos
No manufacturer videos are currently available for this product. Check back later or contact us for more information.
