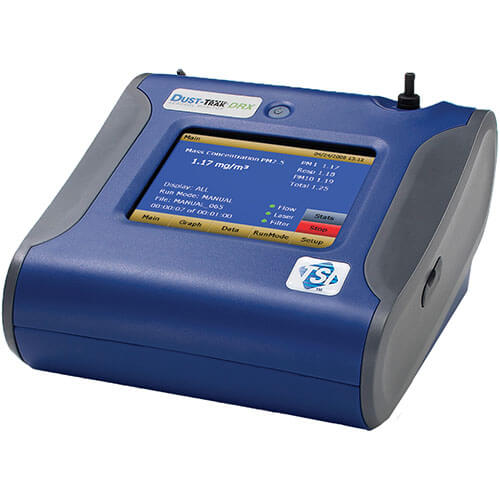

DustTrak DRX 8533 by TSI - Aerosol Monitor

Area Monitoring Datalogging
Particle Counter Manufacturer: TSI
DustTrak DRX 8533 by TSI - Aerosol Monitor
Training
Available
DustTrak DRX 8533 by TSI - Aerosol Monitor
DustTrak DRX 8533 by TSI - Aerosol Monitor
Training
How to ensure the TSI DustTrak is recording data
Training
How to Download Data From TSI Instruments Using Standard TrakPro Software
Training
How to set up TSI DustTrak Enclosures

The DustTrak DRX 8533 by TSI is a desktop aerosol monitor that simultaneously measures PM1, PM2.5, PM4, PM10, and total particulate mass concentrations in real time, with a measurement range of 0.001–150 mg/m³ and a resolution of 0.001 mg/m³. With a 13-hour battery life, it is well-suited for stationary indoor air quality monitoring, industrial hygiene exposure assessments, HVAC filter performance testing, and research applications requiring multi-fraction aerosol data from a single instrument. Widely used in support of EPA PM2.5 equivalent method studies and SCAQMD Rule 1466 compliance monitoring for fugitive dust control.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent
Purchase
Rental Rates
Daily
$225.00
Weekly
$635.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
See more product details
Need Help Choosing?
Our rental specialists can help you select the right equipment for your specific application.
Call 866-736-8347
1
Choose Purchase Option
Rent short-term or buy to own
Required
Rental Period What are these dates?

No rental period selected

Set your dates to see pricing.

Rental Period What are these dates?
—
Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.
Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Your Configuration

DustTrak DRX 8533 by TSI - Aerosol Monitor
unit quantity
× $225.00
$225.00 Select dates
Subtotal:
$225.00
Select dates
Technician verified and tested instrumentation before every rental
Expert support available by phone and email
Fast delivery and flexible rental terms
What is the TSI DustTrak DRX 8533 used for?
It's a desktop area monitor for real-time simultaneous measurement of PM1, PM2.5, PM4, PM10, and total PM mass concentration using laser photometry. It's used for indoor air quality investigations, construction and demolition dust monitoring, occupational dust exposure screening, and industrial hygiene ambient characterization.
DustTrak DRX 8533 vs. DustTrak DRX 8534 — what's the difference?
The 8533 is a desktop/area unit for fixed or tripod placement. The 8534 is the handheld/portable version of the same platform for mobile surveys and walking inspections. Use the 8533 when you need stationary continuous monitoring; use the 8534 when you need to move between sampling locations.
DustTrak DRX 8533 vs. SidePak AM520i — which should I use?
The DustTrak DRX 8533 is an area monitor for fixed-location ambient characterization. The SidePak AM520i is worn on the body for worker-specific personal exposure monitoring. Use both together in a comprehensive dust survey.
Is DustTrak DRX 8533 data sufficient for OSHA PEL compliance?
The DustTrak uses real-time photometry calibrated to Arizona Test Dust — it provides screening-level data. For OSHA PEL compliance determinations for specific aerosols (e.g., respirable crystalline silica), gravimetric filter sampling with lab analysis is the reference method.
What's included in the DustTrak DRX 8533 rental kit?
The DustTrak DRX 8533 monitor, zero filter, power supply, USB cable, and TrakPro software.
What does it cost to rent the TSI DustTrak DRX 8533?
$225/day and $635/week. Pricing beyond two weeks is by quote. For construction dust monitoring or IAQ investigations spanning multiple days, the weekly rate is significantly more economical — most meaningful particulate assessments require more than one day of data.

Exposure Hazards This Equipment Detects

Particulate Matter (PM₂.₅ / PM₁₀)

CAS: N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A

Features & Capabilities

Calibration Certificate Available: ✓ Yes
Datalogging: ✓ Yes
Monitoring Scope: Area Monitoring

Equipment Specifications

Measurement Capabilities

  • Simultaneous measurement of PM1, PM2.5, PM4, PM10, and Total PM
  • Real-time aerosol mass concentration monitoring
  • Photometric light-scattering technology

Operating Range

  • Measurement Range: 0.001 to 150 mg/m³
  • Resolution: +/-0.1% of 0.001 mg/m³
  • Particle Size Range: 0.1 to 15 μm

Power Requirements

  • Rechargeable Lithium-ion Battery
  • Battery Life: Up to 13 hours continuous operation
  • AC Power Adapter: 100-240 VAC, 50/60 Hz

Standards Compliance

  • EPA PM2.5 Equivalent Method
  • ISO 12103-1, A1 Test Dust Certified
  • Compliant with SCAQMD Rule 1466

Environmental Operating Conditions

  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Relative Humidity: 0 to 95% non-condensing

Data Logging & Display

  • Internal Memory: Stores up to 45 days at 1-minute samples
  • Data Download available through PC Software or Flash Drive Export

Flow Rate

  • Sample Flow Rate: 3.0 L/min
  • Flow Control: Active flow control maintains constant flow rate

Kit Contents

DustTrak DRX Desktop 8533, Lithium-Ion Battery (2), Charger/Power Cable, Mesh bag with Accessories, Zero Filter, Inlet Cap, Stylus, Internal Filters (2), A – B USB Cable, Filter Cassette (1 installed, 1 spare), Black-Handled Spanner Driver, 2.5u Impactor with Spare Impactor Disc and Impactor Oil, Trakpro Software, Manual, Calibration Certificate (May be on flash drive only)
