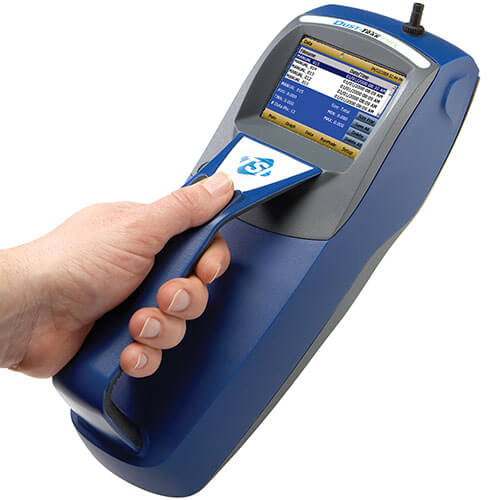

The DustTrak DRX 8534 by TSI is a portable, handheld aerosol monitor that simultaneously measures PM1, PM2.5, PM4, PM10, and total particulate mass concentrations in real time, with a measurement range of 0.001–150 mg/m³. With a 6-hour battery life, it is ideal for mobile industrial hygiene surveys, construction dust monitoring, indoor air quality assessments, and field investigations where multi-fraction aerosol data is needed across multiple locations or zones.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent
Purchase
Rental Rates
Daily
$225.00
Weekly
$635.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
See more product details
Need Help Choosing?
Our rental specialists can help you select the right equipment for your specific application.
Call 866-736-8347
1
Choose Purchase Option
Rent short-term or buy to own
Required
Rental Period What are these dates?

No rental period selected

Set your dates to see pricing.

Rental Period What are these dates?
—
Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.
Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Your Configuration

DustTrak DRX 8534 by TSI - Handheld Particulate Monitor
unit quantity
× $225.00
$225.00 Select dates
Subtotal:
$225.00
Select dates
Technician verified and tested instrumentation before every rental
Expert support available by phone and email
Fast delivery and flexible rental terms
What is the TSI DustTrak DRX 8534 used for?
It's a handheld portable real-time aerosol monitor for field dust and particulate matter measurements. It simultaneously measures PM1, PM2.5, PM4, PM10, and total PM using laser photometry, and runs on battery for approximately 12–13 hours — enough for full-shift field surveys.
DustTrak DRX 8534 vs. 8533 — what's the difference?
The 8534 is the handheld battery-operated version for mobile surveys and walking inspections. The 8533 is a desktop area unit for fixed or tripod placement. Both measure the same PM fractions simultaneously. Use the 8534 when you need to move between locations; use the 8533 for continuous stationary monitoring.
DustTrak DRX 8534 vs. SidePak AM520i — which do I need?
The DustTrak DRX 8534 is carried in the hand for spatial mapping and mobile surveys. The SidePak AM520i is worn on the body in the breathing zone for worker-specific personal exposure monitoring. Use both together for a complete dust survey.
Is DustTrak DRX 8534 data sufficient for OSHA PEL compliance?
The DustTrak uses real-time photometry calibrated to Arizona Test Dust — it provides screening-level data. For OSHA PEL compliance determinations for specific aerosols (e.g., respirable crystalline silica), gravimetric filter sampling with lab analysis is the reference method.
What's included in the DustTrak DRX 8534 rental kit?
The DustTrak DRX 8534 handheld monitor, zero filter, inlet cap, spare internal filter, impactor assembly, USB cable, TrakPro software, and carrying case.
What does it cost to rent the TSI DustTrak DRX 8534?
$225/day and $635/week. Pricing beyond two weeks is by quote. For facility-wide dust surveys or multi-shift industrial hygiene assessments, the weekly rate provides better value — portable handheld surveys across a large facility typically take several days to complete properly.

Exposure Hazards This Equipment Detects

Particulate Matter (PM₂.₅ / PM₁₀)

CAS: N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A

Features & Capabilities

Calibration Certificate Available: ✓ Yes
Datalogging: ✓ Yes
Monitoring Scope: Area Monitoring

Equipment Specifications

Measurement Parameters

  • Particulate matter concentrations: PM1, PM2.5, PM4, PM10, Total PM
  • Measurement range: 0.001 to 150 mg/m³
  • Resolution: 0.001 mg/m³
  • Accuracy: ±0.1% of reading or ±0.001 mg/m³, whichever is greater

Sensor Technology

  • Detection method: 90-degree light-scattering photometer
  • Light source: Laser diode
  • Response time: 1 second

Sampling

  • Flow rate: 3.0 L/min
  • Sampling modes: Continuous, average, and time-weighted average (TWA)
  • Data logging interval: User-selectable from 1 second to 1 hour

Memory & Storage

  • Internal memory: Stores up to 45 days at 1-minute samples
  • Data download available through PC software or flash drive export

Power Requirements

  • Battery: Rechargeable lithium-ion battery pack
  • Battery life: Up to 6 hours continuous operation
  • AC power: 100–240 VAC, 50/60 Hz via included adapter/charger

Standards Compliance

  • Meets industry requirements for aerosol monitoring; suitable for OSHA, NIOSH, and ACGIH exposure assessments

Environmental Operating Conditions

  • Operating temperature: 32°F to 122°F (0°C to 50°C)
  • Storage temperature: -4°F to 140°F (-20°C to 60°C)
  • Relative humidity: 0 to 95% non-condensing

Kit Contents

DustTrak DRX Handheld 8534, (2) Lithium-Ion Battery, Charger / Power Cable & Wall charger with Spare Battery, Mesh bag with Accessories, Zero Filter, Inlet Cap installed on instrument, Stylus in stylus slot on instrument, Internal Filters (2), USB A-B Cable, Black-Handled Spanner Driver, Flathead Screwdriver, 2.5u Impactor with Spare Impactor Disc and Impactor Oil, Trakpro Software, Manual, Calibration Certificate (May be on flash drive only)
