E76 by Flir - Infrared Thermal Imaging Camera

Area Monitoring Datalogging
Visual Inspection Cameras Manufacturer: Flir
E76 by Flir - Infrared Thermal Imaging Camera
E76 by Flir - Infrared Thermal Imaging Camera
E76 by Flir - Infrared Thermal Imaging Camera

Note: This unit does not include a calibration certificate.

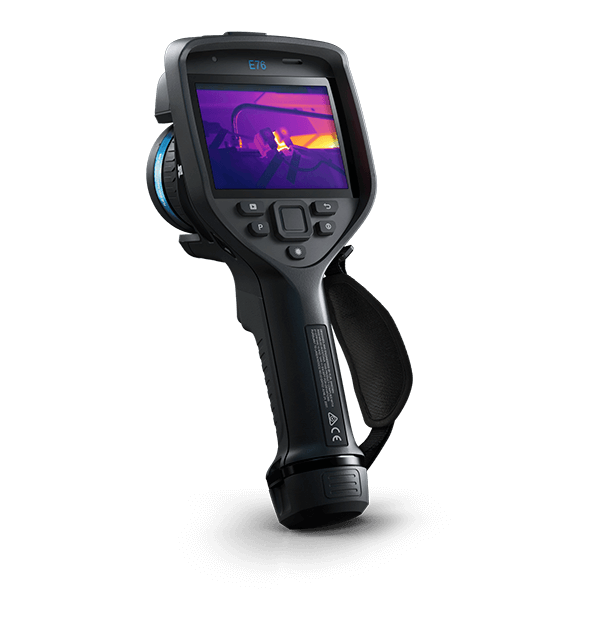

The FLIR E76 is a professional thermal imaging camera with 320 x 240 IR resolution enhanced by MSX technology for crisp thermal-visual overlay and accurate fault detection. Features laser-assisted autofocus, interchangeable AutoCal lenses (14°, 24°, and 42°), and a temperature measurement range of -20°C to 650°C (-4°F to 1202°F). Includes a built-in 5 MP visual camera with LED lamp and Wi-Fi, Bluetooth, and USB-C connectivity. Rated IP54 and drop-tested to 2 m. Suited for building diagnostics, electrical inspection, and predictive maintenance.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent
Purchase
Rental Rates
Daily
$115.00
Weekly
$395.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
See more product details
Need Help Choosing?
Our rental specialists can help you select the right equipment for your specific application.
Call 866-736-8347
1
Choose Purchase Option
Rent short-term or buy to own
Required
Rental Period What are these dates?
No dates set, use the "Set Dates" button above to select your rental period.
—
Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.
Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Your Configuration

E76 by Flir - Infrared Thermal Imaging Camera
× $115.00
$115.00 Select dates
Subtotal:
$115.00
Select dates
Technician verified and tested instrumentation before every rental
Expert support available by phone and email
Fast delivery and flexible rental terms

About This Product

The FLIR E76 is a professional thermal imaging camera with 320 x 240 IR resolution enhanced by MSX technology for crisp thermal-visual overlay and accurate fault detection. Features laser-assisted autofocus, interchangeable AutoCal lenses (14°, 24°, and 42°), and a temperature measurement range of -20°C to 650°C (-4°F to 1202°F). Includes a built-in 5 MP visual camera with LED lamp and Wi-Fi, Bluetooth, and USB-C connectivity. Rated IP54 and drop-tested to 2 m. Suited for building diagnostics, electrical inspection, and predictive maintenance.

Exposure Hazards This Equipment Detects

Temperature (°C / °F)

CAS: N/A
Learn More
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A

Features & Capabilities

Calibration Certificate Available: ✓ Yes
Datalogging: ✓ Yes
Monitoring Scope: Area Monitoring

Equipment Specifications

Key Specs

  • Thermal Resolution:320 × 240 (UltraMax® super-resolution available)
  • NETD (Thermal Sensitivity):<40 mK
  • Temperature Range:–20 to 120°C, 0 to 650°C, optional 300–1000°C (±2°C or ±2%)
  • Field of View (standard lens):24° × 18° (other lenses available: 14° narrow, 42° wide)
  • Focus:Manual, one-shot LDM, continuous laser, or contrast
  • Digital Zoom:1–4× continuous
  • Image Frequency:30 Hz refresh rate
  • Visual Camera:5 MP with LED lamp
  • Video Recording:Radiometric (RTRR .csq), non-radiometric H.264
  • Connectivity:Wi-Fi, Bluetooth, USB-C, DisplayPort, FLIR Ignite cloud
  • Protection:IP54, drop tested to 2 m
  • Weight:1 kg (2.2 lbs)

Battery Life & Data Storage

  • Rechargeable Li-ion battery, >2.5 hours typical use
  • Dual-bay charger, ~2.5 hours to 90% capacity
  • Storage on removable SD card (8 GB included) + FLIR Ignite cloud backup

Kit Contents

FLIR E76 camera, 2 rechargeable batteries, battery charging pack, USB-C AC adapter for camera, AC adapter for charging pack, wrist strap/lanyard/spare lens cover, 2 USB cables (Type A-C and Type C-C), lens cleaning cloth, and USB flash drive with software and manuals
