GilAir Plus by Sensidyne Gilian - Personal Air Sampling Pump
Tubing is NOT automatically included but can be upon request. Please use Optional Equipment & Accessories to review what we offer

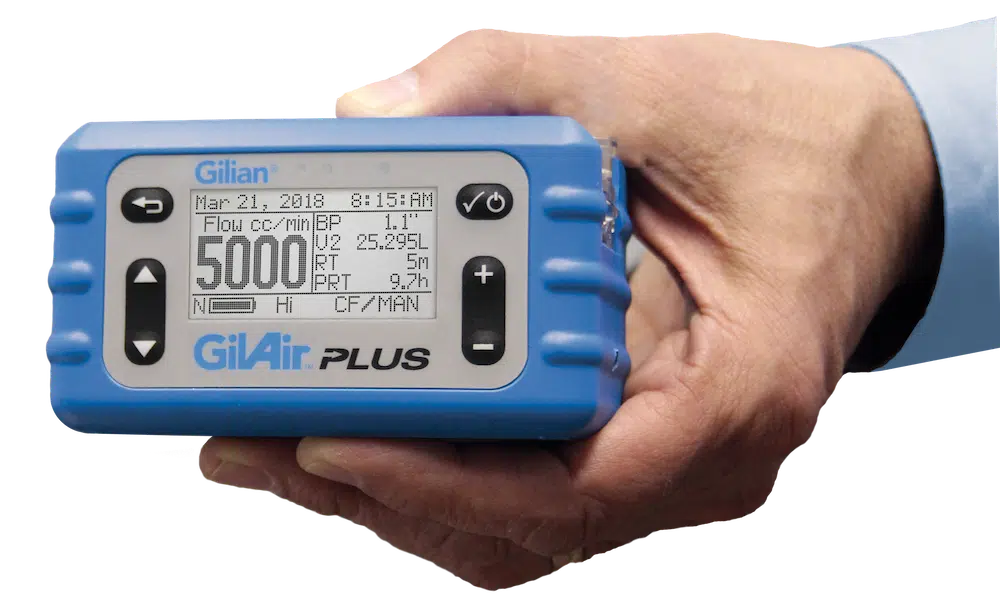

The GilAir Plus by Sensidyne Gilian is a versatile personal air sampling pump designed for industrial hygiene professionals requiring reliable, long-term sample collection. It delivers a constant flow range of 20–5,000 cc/min and a constant pressure range of 1–5,000 cc/min, with ±5% flow accuracy to ensure compliant sample integrity. Rated intrinsically safe for Class I, Division 1 hazardous environments, the pump weighs just 20.5 oz and features auto fault recovery and onboard datalogging, making it well-suited for applications including solvent vapor, dust, and chemical exposure monitoring in industrial, construction, and laboratory settings.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$45.00
Weekly
$120.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the Gilian GilAir Plus used for?
It's a personal air sampling pump for worker exposure sampling using OSHA and NIOSH methods. It supports constant-flow (20–5,000 cc/min) and constant-pressure (1–5,000 cc/min) modes without external adapters, covering most personal IH methods — filter cassettes, sorbent tubes, and impactors — in a single unit.
What's the difference between constant-flow and constant-pressure modes?
Constant-flow maintains a set flow rate as media resistance changes during sampling. Constant-pressure maintains a set pressure, which some sampling methods or tube types require. Your written method specifies which mode to use — when in doubt, check with your lab before sampling.
GilAir Plus vs. SKC AirChek Touch — which should I choose?
Both cover similar personal sampling applications. The GilAir Plus handles constant-flow and constant-pressure in one unit without adapters, making it versatile across method types. The AirChek Touch is favored for its touchscreen interface and ISO 13137:2022 certification. Match the choice to your method requirements, site classification, and team's workflow.
Is the GilAir Plus intrinsically safe?
Yes — it's rated intrinsically safe for Class I, Division 1 hazardous locations. Confirm the specific area classification before deploying in classified zones and keep certification documentation with the sampling kit.
How do I set up for a standard filter cassette sample?
Connect your cassette and tubing to the pump inlet, set the method-required flow, and verify with a primary flow calibrator. Clip the pump on the worker, route tubing to the breathing zone without kinks, and document start time, flow set point, and cassette ID. Treat any mid-run change — tubing pinch, media swap — as a new sampling event and document it.
What causes a sample to be rejected, and how do I prevent it?
Incomplete documentation is the most common reason — if you can't tie the result to a known air volume and a specific worker/task, it's unusable for compliance. Record media ID, worker ID, location/task, start/stop times, and verified flow. Keep chain-of-custody clean from field to lab. A technically valid sample with missing paperwork still fails.
What's included in the rental kit?
The kit includes the GilAir Plus pump, charging dock, AC adapter, carrying case, and a USB flash drive with software and manuals. Tubing depends on your method requirements — confirm at dispatch. Sampling media (filters, cassettes, tubes) and lab analysis are not included.
What does it cost to rent the GilAir Plus?
$45/day and $120/week. Pricing beyond two weeks is by quote. The pump rate is the same regardless of method — your total project cost scales with sample count, media type, and lab analysis fees, not the pump itself.
Exposure Hazards This Equipment Detects
Asbestos (Fibrous Silicate)
CAS:
1332-21-4
Learn More
Updated on March 09, 2026
PEL TWA
0.1 f/cc (8-hr) [29 CFR 1910.1001]
REL TWA
Lowest feasible concentration. 0.1 f/cc for fibers >5 µm
TLV TWA
N/A
Diesel Particulate Matter (DPM)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Particulate Matter (PM₂.₅ / PM₁₀)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Welding Fumes (Mixed Fumes)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Crystalline Silica Dust (RCS)
CAS:
14808-60-7
Learn More
Updated on March 09, 2026
PEL TWA
50 µg/m³ [25 µg/m³ Action Level] [29 CFR 1910.1053]
REL TWA
0.05 mg/m³ (Ca — carcinogen, reduce to lowest feasible concentration)
TLV TWA
0.025 mg/m³ (respirable particulate matter) [2009]
Features & Capabilities
| Datalogging: | ✓ Yes |
| Intrinsically Safe: | ✓ Yes |
| Monitoring Scope: | Personal Monitoring |
Equipment Specifications
| Flow Rate: | Constant flow: 20–5,000 cc/min; Constant pressure: 1–5,000 cc/min |
| Back-Pressure Capability: | 5000 cc/min up to 12" H2O; 4000 cc/min up to 20" H2O; 3000 cc/min up to 30" H2O; 2000 cc/min up to 30" H2O; 1000 cc/min up to 35" H2O; 450-1000 cc/min up to 40" H2O; 20-449 cc/min up to 25" H2O |
| Fault Recovery: | Automatically restarts to recover from temporary fault conditions |
| Connectivity: | GilAir Plus Dock provides a single connection for charging and PC/calibrator communication |
| Display: | Backlit, easy-to-read display with keypad interface; battery level shown via on-screen icon |
| Intrinsically Safe Rating: | Class I, Division 1, Groups A-G; Class II, Division 1, Zone 0 |
| Data Logging Capacity: | Yes |
| Power Supply: | Removable rechargeable NiMH battery pack, optional alkaline battery pack, or DC power |
| Size / Weight: | Approximately 1/3 the size of comparable sampling pumps; 20.5 oz |
| Variants Available: | Standardized temperature/pressure version also available |
Interchangeable Module Specifications
Key specifications are determined by which of the 6 modules below is fitted. Select one when configuring your rental. Expand any module to view its specifications.
Bios Defender 520L (0.005-0.5LPM) by Mesa Labs Bios
Range
5 to 500 mL/min (0.005 to 0.5 LPM)
Accuracy
Percent-of-reading accuracy supported by NVLAP NIST ISO 17025 accreditation
Bios Defender 520M (0.05-5LPM) by Mesa Labs Bios
Range
50 to 5,000 mL/min (0.05 to 5 LPM)
Accuracy
Percent-of-reading accuracy supported by NVLAP NIST ISO 17025 accreditation
Bios Defender 520H (0.3-30LPM) by Mesa Labs Bios
Range
300 to 30,000 mL/min (0.3 to 30 LPM)
Accuracy
Percent-of-reading accuracy supported by NVLAP NIST ISO 17025 accreditation
Chek-Mate Low Flow (0.02-0.5 LPM) by SKC
Range
20 to 500 mL/min (0.02 to 0.5 LPM volumetric)
Resolution
0.01 mL/min from 0 to 99.99 mL/min; 0.1 mL/min from 100 to 500 mL/min
Accuracy
±1% of reading from 50 to 500 mL/min; ±2.5% of reading from 20 to 50 mL/min
Operating Temp
32°F to 104°F (0°C to 40°C)
Chek-Mate Medium Flow (0.5-5 LPM) by SKC
Range
0.5 to 5 L/min (medium flow)
Resolution
0.001 L/min
Accuracy
±1% of reading from 0.75 to 5 L/min; ±2.5% at the extreme ends of the range
Operating Temp
32°F to 104°F (0°C to 40°C)
4146 (0.01-20 LPM) by TSI - Primary Calibrator
Range
10 to 20,000 mL/min (0.01 to 20 LPM)
Kit Contents
