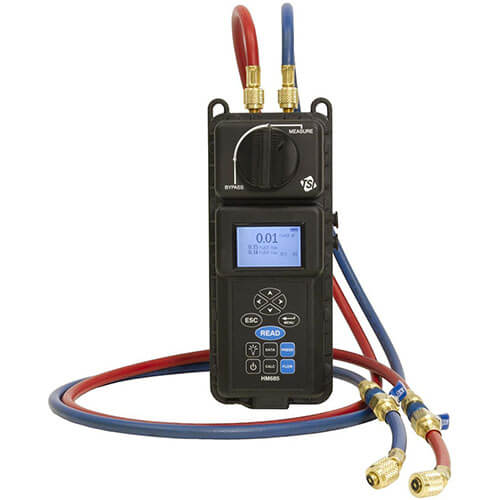

The TSI Alnor HM685 is a professional-grade hydronic manometer that simultaneously measures and displays differential pressure, high-side gauge pressure, and low-side gauge pressure, all without changing hose connections or valve settings. By entering a valve manufacturer's Cv or Kv flow factor, the HM685 calculates volumetric flow rates up to 99,999 GPM. Additional capabilities include built-in data logging, dual temperature measurement ports, USB connectivity, and advanced calculation modes for pump laws and heat flow analysis. Ideal for balancing and troubleshooting steam and hot water heating, chilled water cooling, and hydronic pump performance systems.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent
Purchase
Rental Rates
Daily
$175.00
Weekly
$475.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
See more product details
Need Help Choosing?
Our rental specialists can help you select the right equipment for your specific application.
Call 866-736-8347
1
Choose Purchase Option
Rent short-term or buy to own
Required
Rental Period What are these dates?

No rental period selected

Set your dates to see pricing.

Rental Period What are these dates?
—
Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.

Need equipment sooner than the dates shown? We can often accommodate rush rentals. Call us at 866-736-8347 to confirm availability.

Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Your Configuration

Hydronic Manometer HM685 by TSI Alnor - Pressure & Flow Measurement
unit quantity
× $175.00
$175.00 Select dates
Subtotal:
$175.00
Select dates
Technician verified and tested instrumentation before every rental
Expert support available by phone and email
Fast delivery and flexible rental terms
What is the TSI Alnor HM685 Hydronic Manometer used for?
It's a digital differential pressure manometer for measuring pressure differential, flow rate, and temperature in hydronic HVAC systems. It's used during commissioning, balancing, and troubleshooting of chilled water, hot water, and condenser water systems to verify coil and valve flow rates.
How does the HM685 calculate flow in a hydronic system?
It measures differential pressure across a coil, valve, or other component with known pressure-flow characteristics, then uses the pressure-flow relationship for that component to calculate flow. It includes a built-in library of common coil and valve data for direct flow calculation.
HM685 vs. ultrasonic clamp-on flow measurement — when should I use each?
Use the HM685 when pressure taps are already installed on coils or valves you're balancing, and you want fast direct flow readings using the instrument's coil/valve database. Use an ultrasonic clamp-on meter (like the Panametrics PT900) when taps aren't available or when you need non-intrusive pipe flow measurement across the broader system.
What's a common mistake when measuring hydronic flow with the HM685?
Using an incorrect coil or valve selection from the instrument's library, or connecting to the wrong pressure taps. Verify the component ID and confirm you're connected to the correct supply and return taps for the specific coil or valve being measured.
What should I confirm before deploying the HM685?
That pressure taps are installed and accessible on your target coils/valves, that the component is in the instrument's library, and the expected flow range is within the instrument's measurement capability.
What does it cost to rent the TSI Alnor HM685?
Contact RAECO Rents for current daily and weekly rates. For hydronic balancing projects covering multiple AHUs, coils, or buildings, the weekly rate is typically more economical than daily — most meaningful balancing campaigns span several days.

Features & Capabilities

Datalogging: ✓ Yes
Monitoring Scope: Area Monitoring

Equipment Specifications

Type/Class Rating: Hydronic Differential Pressure Manometer
Measured Parameters: Differential Pressure, High-Side Gauge Pressure, Low-Side Gauge Pressure, Flow Rate (calculated), Temperature (with probes)
Measurement Range: Differential Pressure: ±300 psi (±2068 kPa); Gauge Pressure: -20 to 300 psi (-138 to 2068 kPa); Flow: up to 99,999 USGPM (calculated via Cv/Kv valve flow factor); Temperature Probe: -40 to 250°F (-40 to 121°C)
Resolution: 0.001 psi, 0.0001 USGPM, 0.1°F (0.1°C)
Accuracy: ±1% of reading +0.072 psi; Flow: ±0.5% of reading +1.2°F
Connectivity: USB via TSI CompuDat software (included free with rental)
Compatible Probes / Accessories: Dual temperature measurement ports, Built-in coil/valve Cv/Kv library
Data Logging Capacity: 100 test IDs, up to 4,000 readings with time/date stamp
Battery Run Time: 4 AA batteries (alkaline or NiMH); ~12 hours with backlight, ~18 hours without

Kit Contents

TSI HM685 Hydronic Manometer, blue and red hose kit, shut-off valves (1 red, 1 blue), two blue flow restrictor connectors, HMFIT accessory kit with various adapters, B&G readout probes and P/T gauge adapter probes, temperature probe, AC adapter, mini USB cable, CompuDat software/manual/quick start guide on flash drive, and 4 spare AA batteries
