ILT2400 by International Light Technologies - Handheld UV Radiometer
ILT2400 by International Light Technologies - Handheld UV Radiometer

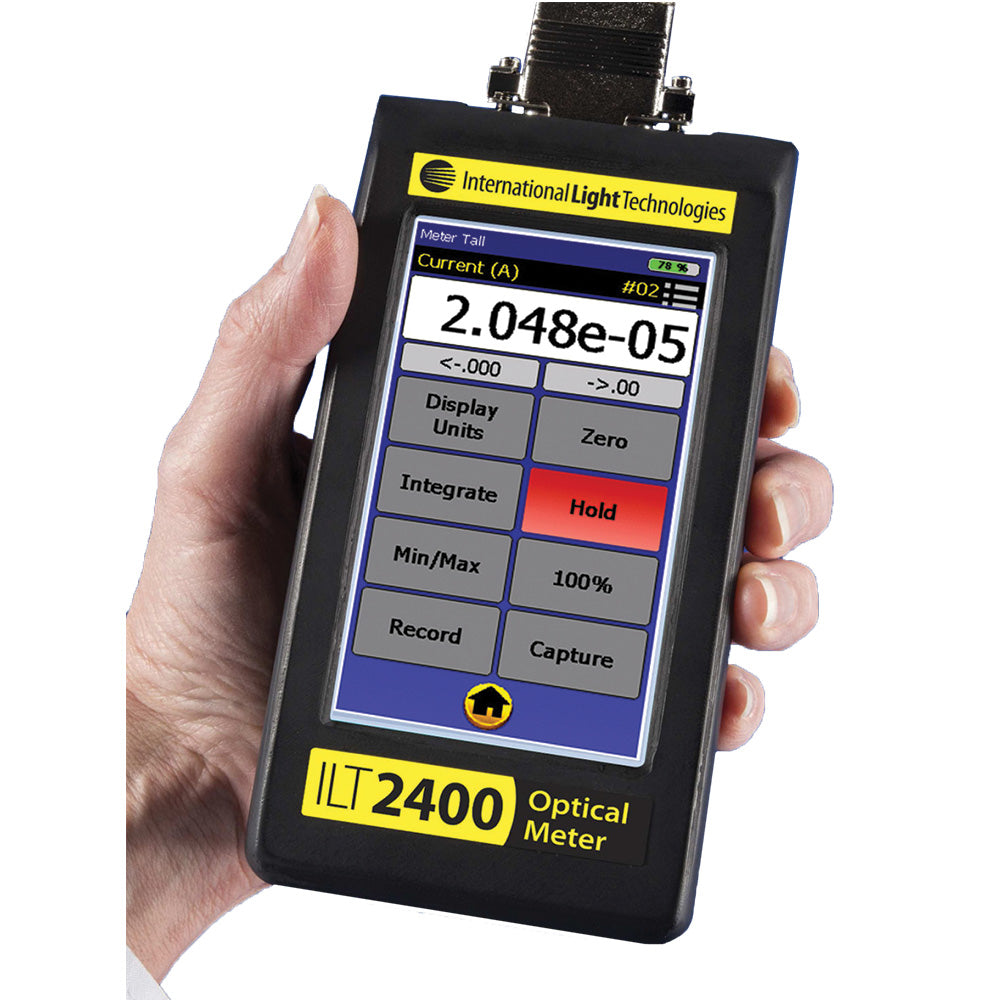

The ILT2400 is a research-grade handheld light meter and optometer designed for precise UV and optical radiation measurement across a broad UV band. It features automatic ranging across 8 decades of intensity with internal Accuspan smart averaging, and can capture peak events as brief as 100 µs while logging up to 16 readings per second with time/date stamping. The 4.3" touchscreen display operates in portrait or landscape mode. All readings are ISO 17025 & NIST-traceable.
RAECO Rents provides two calibrated detector probes: SED005/WBS320/W (250–400 nm) for broadband UVA/UVB monitoring and sterilization studies, and XSD140T254 (249–259 nm) for narrowband germicidal UV-C validation and disinfection compliance. Suited for UVGI/sterilization compliance, photobiological safety assessments, phototherapy, and optical radiation hazard studies.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$120.00
Weekly
$325.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the ILT2400 used for?
It's a research-grade optometer for measuring UV and optical radiation with NIST-traceable calibration. It's used for UVGI system validation, photobiological safety assessments, UV-curing process monitoring, phototherapy output verification, and optical radiation hazard documentation — applications where a basic light meter isn't sufficient.
What UV wavelength bands do the available probes cover?
RAECO rents two calibrated probes: SED005/WBS320/W covering 250–400 nm (UVA/UVB broadband) and XSD140T254 covering 249–259 nm (germicidal UV-C around 254 nm).
Why does probe selection matter so much for UV measurements?
UV hazards and performance are wavelength-specific. A UVA/UVB broadband probe gives invalid results for germicidal UV-C, and vice versa. Match the probe to the lamp type and the decision you need to make — wrong probe means wrong answer regardless of how accurate the meter is.
ILT2400 vs. a basic light meter — what's the difference?
A basic light meter measures visible illumination (Lux/Fc). The ILT2400 measures UV and optical radiation with wavelength-specific probes and traceable calibration — required for UVGI validation, safety documentation, and any application where the wavelength band and measurement accuracy matter.
What's a common mistake when measuring UVGI or UV-curing intensity?
Using the wrong probe wavelength band, and taking a single reading at one distance and treating it as representative of the work zone. Use a defined measurement plan: consistent probe orientation, documented distance to source, and multiple points across the exposure area.
Does the ILT2400 datalog?
Yes — up to 16 readings per second with 4 GB internal memory, and it can capture peaks as brief as 100 µs. Confirm your export format and reporting workflow before the measurement event.
What's included in the rental kit?
The ILT2400 meter with touchscreen display, one or two calibrated probes, USB cables with AC adapter, USB flash drive with software/firmware/manuals, flat-head screwdriver, and NIST-traceable calibration certificates.
What does it cost to rent the ILT2400?
$120/day and $325/week. Pricing beyond two weeks is by quote. Probe configuration (UVA/UVB broadband, UV-C 254 nm, or both) is confirmed at booking — having both probes available is recommended for UVGI validation projects covering multiple lamp types.
Exposure Hazards This Equipment Detects
Ultraviolet Radiation (UV)
CAS:
N/A
Learn More
Updated on October 07, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Features & Capabilities
| Calibration Certificate Available: | ✓ Yes |
| Datalogging: | ✓ Yes |
Equipment Specifications
| Measurement Type: | UV irradiance (W/cm²) and UV dose (J/cm² in Integrate mode) |
| Measurement Range: | UVA/UVB probe (SED005/WBS320/W): 1×10⁻⁷ to 1 W/cm²; UV-C probe (XSD140T254): 2×10⁻⁷ to 2 W/cm² |
| Spectral Range: | UVA/UVB probe (SED005/WBS320/W): 250–400 nm broadband; UV-C probe (XSD140T254): 249–259 nm narrowband, centered on the 254 nm germicidal line |
| Dynamic Range: | Meter: 1 pA to 1 mA (calibrated 50 pA to 1 mA), 8 decades with Accuspan auto-ranging and smart averaging |
| Sampling Rate: | Stores up to 16 readings per second; display updates up to 50 samples per second; sample time 100 ms to 5 s or Auto |
| Additional Features: | Integrate (dose summation), dark and ambient Zero, Hold, Min/Max, % mode, Record and Capture with date-time stamp; Light Stack green/yellow/red indicator levels; Cloak mode for dark environments; LightCalc unit converter; 5V bias for silicon sensors; smart sensors store their own calibration |
| Peak Capture: | 100 µs |
| Calibration Standard: | NIST-traceable, ISO 17025 accredited calibration for meter and sensors |
| Connectivity: | Micro USB (data download and charging); Mini USB (PC connection and remote logging with DataLight III software, Windows 7/8) |
| Display: | 4.3-inch capacitive color touchscreen; flips 90° for portrait or landscape |
| Probe/Accessory Options: | Rent with one probe or both. SED005/WBS320/W (250–400 nm, 1×10⁻⁷ to 1 W/cm²): broadband UVA/UVB for UV curing lamps and general UV output; cable about 6 ft. XSD140T254 (249–259 nm, 2×10⁻⁷ to 2 W/cm²): silicon sensor with a narrowband UV-C filter for germicidal 254 nm lamps; low-profile housing for tight clearances. Both probes measure UV only and cannot read lux or footcandles |
| Compatible Instruments: | ILT1700 and ILT1350 D-style sensors (except PMT and SHD low-light sensors) |
| Operating Temperature Range: | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature Range: | 14°F to 113°F (-10°C to 45°C) |
| Data Storage Capacity: | 4 GB internal microSD memory |
| Battery Run Time: | 4 to 8 hours continuous use, depending on display brightness. Internal rechargeable 3.7V 5,500 mAh Li-Po battery; 12 to 14 hour full charge |
| Size / Weight: | 1.6 x 3 x 6 in |
