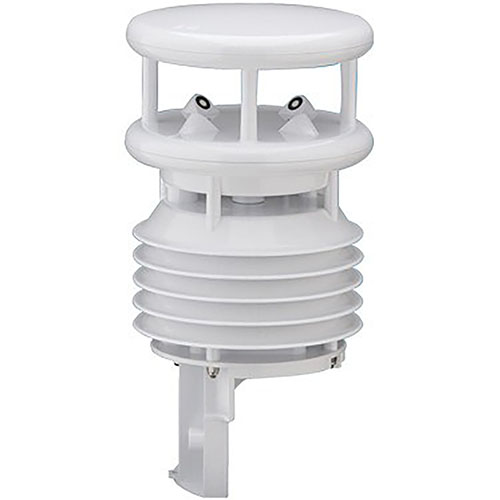

Lufft WS500-UMB Smart Weather Station

Area Monitoring

Weather Station Manufacturer: Lufft

Note: This unit does not record or store data internally. A telemetry device such as the Thiamis 4G is required for data logging.

The Lufft WS500-UMB is an all-in-one weather station for environmental monitoring, industrial safety, air quality networks, transportation systems, and research applications. Its integrated ventilated housing and ultrasonic wind technology provide reliable, maintenance-free measurement of five core parameters: air temperature, relative humidity, barometric pressure, wind speed, and wind direction. Measurement accuracy includes ±0.2°C temperature, ±2% RH, ±0.5 hPa barometric pressure, and ±0.3 m/s wind speed. Data is accessible via multiple protocols, UMB-ASCII, UMB-Binary, SDI-12, and MODBUS, for easy integration into monitoring networks and data loggers. External sensor inputs support optional accessories such as a rain gauge or road surface temperature probe. Features a rugged IP66-rated housing suited for long-term unattended outdoor monitoring in harsh environments.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent

Rental Rates

Daily

$125.00

Weekly

$255.00

Monthly

Contact for pricing

Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.

When do rental charges start? On the Rental Start Date you choose, not the day we ship. See how renting works

See more product details

Need Help Choosing?

Our rental specialists can help you select the right equipment for your specific application.

Call 866-736-8347

Rent

No rental period selected

Set your dates to see pricing.

Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.

Need equipment sooner than the dates shown? We can often accommodate rush rentals. Call us at 866-736-8347 to confirm availability.

Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Price $125.00 for 1 Day Loading...

Thiamis 4G by Aethair - IoT Communications Device Loading...

Please select exactly 1 module(s).

Custom Outdoor Enclosure Loading...

AC Power Adapter 8535 Loading...

Lithium External Battery for Weatherproof Enclosures - 12V 20Ah LiFePO4 Loading...

Your Configuration

Lufft WS500-UMB Smart Weather Station

unit quantity

× $125.00

$125.00 Select dates

Subtotal:

$125.00

Select dates

Technician verified and tested instrumentation before every rental

Expert support available by phone and email

Fast delivery and flexible rental terms

It's an all-in-one smart weather station measuring wind speed, wind direction, air temperature, relative humidity, barometric pressure, and precipitation in a single compact sensor. It's used for fixed outdoor environmental monitoring in construction, industrial, and research applications.

The UMB (Universal Measurement Bus) digital protocol, plus analog outputs. Confirm compatibility with your data logger or monitoring platform before deploying.

Yes — it uses ultrasonic wind measurement with no moving parts, improving reliability in wet, icy, or dusty conditions compared to traditional cup anemometers. Confirm operating temperature range and protection ratings against your specific site conditions.

The WS500-UMB integrates multiple sensors into one unit, reducing installation complexity, calibration overhead, and potential failure points. It's particularly well-suited for temporary monitoring deployments and sites with limited installation infrastructure.

UMB protocol compatibility with your data logger, power supply requirements, mounting hardware needs, and whether the sensor's measurement ranges meet your project's meteorological reporting requirements.

Contact RAECO Rents for current daily and weekly rates. For construction or environmental monitoring projects requiring continuous weather data over weeks or months, contact us for a long-term project rate.

Exposure Hazards This Equipment Detects

PEL TWA

N/A

REL TWA

N/A

TLV TWA

N/A

PEL TWA

N/A

REL TWA

N/A

TLV TWA

N/A

PEL TWA

no limits assigned

REL TWA

no limits assigned

TLV TWA

no limits assigned

Features & Capabilities

Monitoring Scope:

Area Monitoring

Equipment Specifications

Measured Parameters:	Air Temperature, Relative Humidity, Barometric Pressure, Wind Speed, Wind Direction
Humidity Range:	0–100% RH (capacitive); ±2% RH
Temperature Range:	-50 to +60°C (NTC); ±0.2°C (–20 to +50°C), otherwise ±0.5°C (>–30°C)
Pressure Range:	300–1200 hPa (MEMS capacitive); ±0.5 hPa (0–40°C)
Wind Speed Range:	0–75 m/s (ultrasonic); ±0.3 m/s or ±3% (0–35 m/s), ±5% (>35 m/s) RMS; 0.1 m/s resolution
Wind Direction Range:	0–359.9° (ultrasonic); <3° RMSE (>1.0 m/s); 0.1° resolution
Connectivity:	RS485 (2-wire, half-duplex); MODBUS, SDI-12, UMB-ASCII/Binary
Protection Class:	IP66; operating range -50 to +60°C (with heater), 0–100% RH; compliant to IEC 61724-1:2021
Requires External Data Logger:	✓ Yes
Power Supply:	External battery or power source only (no internal battery); 11–32 VDC (5–11 VDC supported with limited measurement precision); heater requires 24 VDC ±10% (20 VA)
Size / Weight:	~1.2 kg, 287 mm height, 150 mm diameter; mounts on 60–76 mm diameter masts

Interchangeable Module Specifications

Key specifications are determined by the module below, included with this configuration. Expand it to view its specifications.

Operating Temp

-30°C to 75°C (-22°F to 167°F)

Battery

None — the Thiamis 4G has no onboard battery. It operates on continuous external power (12VDC or USB-C).

Manufacturer Resources

Documents

User manuals, safety guides, and technical documentation from the manufacturer:

Videos

No manufacturer videos are currently available for this product. Check back later or contact us for more information.
