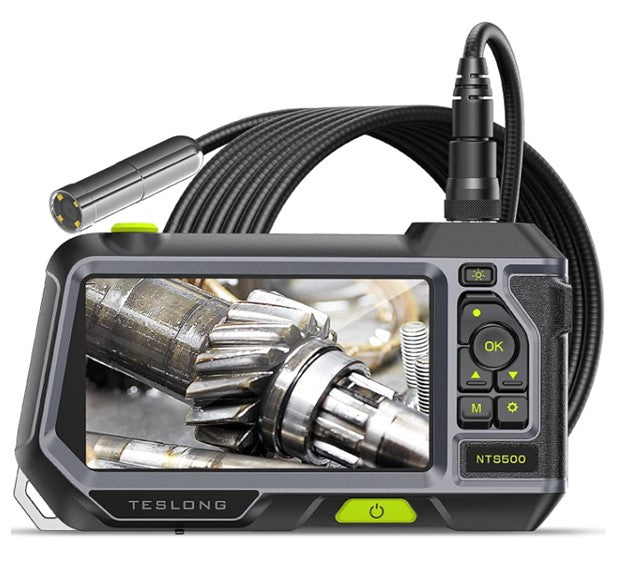

NTS500 by Teslong - Inspection Camera
NTS500 by Teslong - Inspection Camera
Note: This unit does not include a calibration certificate.
The Teslong NTS500 is a high-performance industrial endoscope featuring a 5-inch HD color LCD monitor (1280 × 720) with an ergonomic, one-handed design. It includes a forward-facing camera and a short-focus side-view camera for improved visibility in tight and hard-to-reach spaces. The probe carries an IP67 waterproof rating via a 5-pronged aerospace connector, making it suitable for wet environments, plumbing, HVAC, and confined space inspections. Four high-brightness LED lights at the probe tip illuminate dark areas, and the camera-tipped probe is interchangeable, supporting different lengths, diameters, and view angles for different applications. Snapshot photos are captured at 1920 × 1080 and video is recorded at 1280 × 720, saved to a TF/Micro-SD card. The built-in 3500 mAh rechargeable lithium battery provides up to 4 hours of continuous operation. The monitor housing uses industrial-grade plastic with toughened glass for drop and impact resistance. Ideal for industrial visual inspections, confined space surveys, vehicle engine inspection, and general infrastructure assessments.
Choose Your Option
Rent for flexible short-term use or purchase to own
About This Product
The Teslong NTS500 is a high-performance industrial endoscope featuring a 5-inch HD color LCD monitor (1280 × 720) with an ergonomic, one-handed design. It includes a forward-facing camera and a short-focus side-view camera for improved visibility in tight and hard-to-reach spaces. The probe carries an IP67 waterproof rating via a 5-pronged aerospace connector, making it suitable for wet environments, plumbing, HVAC, and confined space inspections. Four high-brightness LED lights at the probe tip illuminate dark areas, and the camera-tipped probe is interchangeable, supporting different lengths, diameters, and view angles for different applications. Snapshot photos are captured at 1920 × 1080 and video is recorded at 1280 × 720, saved to a TF/Micro-SD card. The built-in 3500 mAh rechargeable lithium battery provides up to 4 hours of continuous operation. The monitor housing uses industrial-grade plastic with toughened glass for drop and impact resistance. Ideal for industrial visual inspections, confined space surveys, vehicle engine inspection, and general infrastructure assessments.
Features & Capabilities
| Datalogging: | ✓ Yes |
| Monitoring Scope: | Area Monitoring |
Equipment Specifications
Kit Contents
Manufacturer Resources
Documents
User manuals, safety guides, and technical documentation from the manufacturer:
Videos
No manufacturer videos are currently available for this product. Check back later or contact us for more information.
