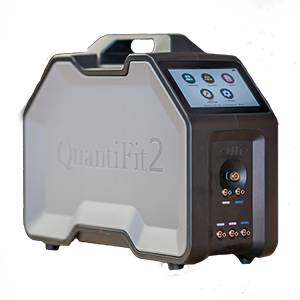

QuantiFit2 by OHD - Mask Fit Test System

Datalogging
Mask Fit Testing Manufacturer: OHD
QuantiFit2 by OHD - Mask Fit Test System
QuantiFit2 by OHD - Mask Fit Test System
QuantiFit2 by OHD - Mask Fit Test System

The OHD QuantiFit2 uses patented Controlled Negative Pressure (CNP) technology to directly measure respirator leakage. Delivering the fastest, easiest, and most precise quantitative fit test available for both Full & Half-face respirators. Unlike particle-counting systems, CNP eliminates the need for ambient aerosol, making it suitable for clean room and controlled environments. Ideal for healthcare, industrial hygiene, and emergency response programs requiring rapid, reliable fit testing results.

Click here to verify the right Adapter Kit for your Respirator!

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent
Purchase
Rental Rates
Daily
$240.00
Weekly
$610.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
See more product details
Need Help Choosing?
Our rental specialists can help you select the right equipment for your specific application.
Call 866-736-8347
1
Choose Purchase Option
Rent short-term or buy to own
Required
Rental Period What are these dates?

No rental period selected

Set your dates to see pricing.

Rental Period What are these dates?
—
Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.
Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Your Configuration

QuantiFit2 by OHD - Mask Fit Test System
unit quantity
× $240.00
$240.00 Select dates
Subtotal:
$240.00
Select dates
Technician verified and tested instrumentation before every rental
Expert support available by phone and email
Fast delivery and flexible rental terms

About This Product

The OHD QuantiFit2 uses patented Controlled Negative Pressure (CNP) technology to directly measure respirator leakage. Delivering the fastest, easiest, and most precise quantitative fit test available for both Full & Half-face respirators. Unlike particle-counting systems, CNP eliminates the need for ambient aerosol, making it suitable for clean room and controlled environments. Ideal for healthcare, industrial hygiene, and emergency response programs requiring rapid, reliable fit testing results.

Click here to verify the right Adapter Kit for your Respirator!

Features & Capabilities

Calibration Certificate Available: ✓ Yes
Datalogging: ✓ Yes

Equipment Specifications

  • Calibration: NIST Traceable
  • Input Voltage: 12VDC, Centre Positive, 3A Max
  • Power Supply: Universal, 100-240VAC, 50/60Hz 1A Max
  • Operating Temperature: 5 to 45C
  • Humidity Range: 20 to 80% Non-Condensing
  • Setup Memory: 20GB
  • Dimension: 28cm (H) x 11cm (W) x 38cm (D)
  • Weight: 3.9kg
  • Touchscreen: Capacitive Touch (800x480 pixel display)
  • Connectivity: 4 Type A Ports, 1 Type B Port
  • Leak Test Measurement: 2-5000 cc/min
  • Leak Test Resolution: 0.1 cc/min
  • Fit Factor Computation: 6-53,000
  • Fit Factor Resolution: 1

Kit Contents

OHD Quantifit2, A/C Power Cable, Triple Tube Assembly, A-B USB Cable, Mask Valve Props (2), OHD Logic Software, Manuals, Guides (On Flash Drive), Carrying Case
