Ranger by AeroQual - Portable Ozone Monitor
Ranger by AeroQual - Portable Ozone Monitor

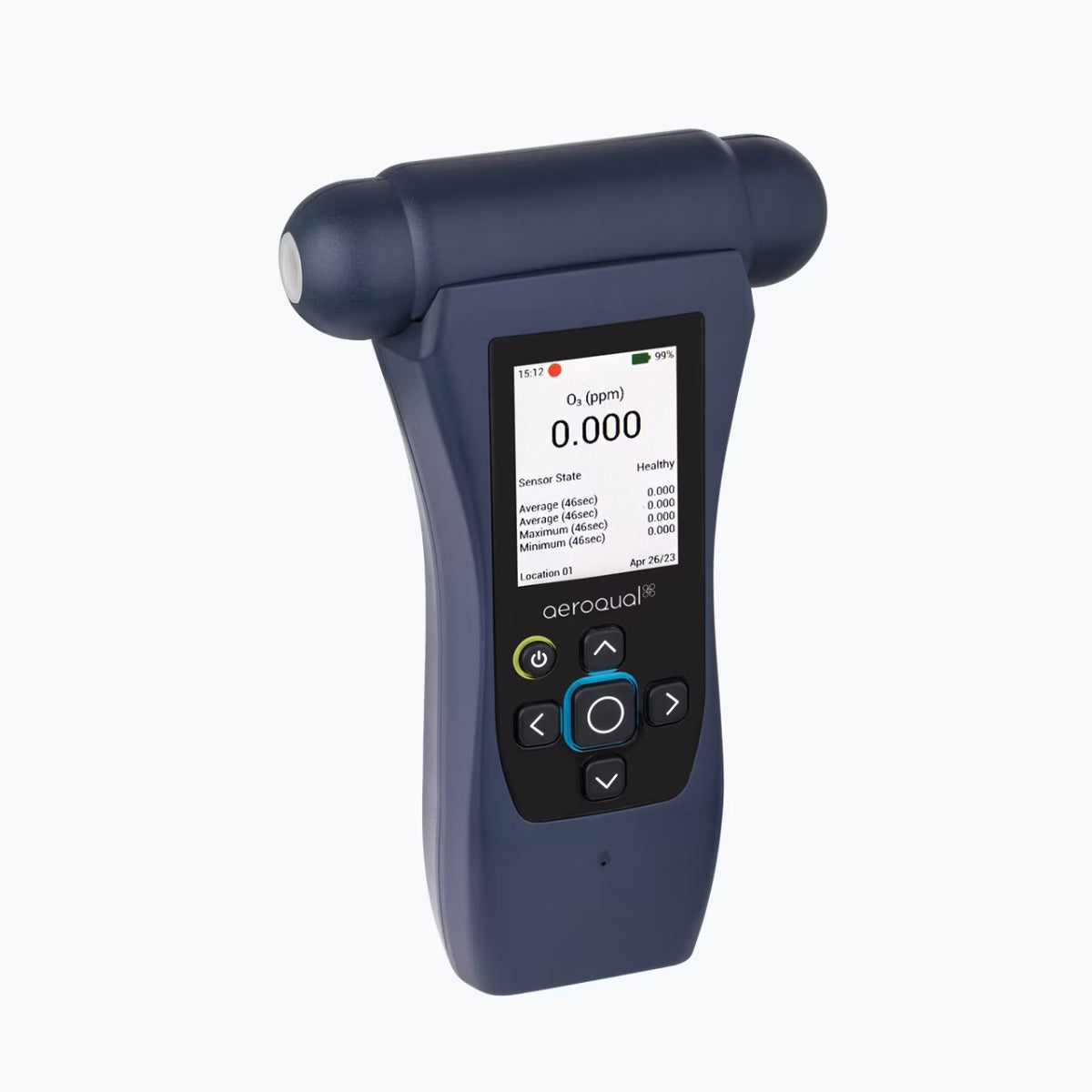

The AeroQual Ranger is a portable ozone monitor designed for real-time O₃ detection in indoor air quality assessments, environmental monitoring, remediation site perimeter monitoring, wildfire smoke exposure studies, and personal exposure tracking. It supports two interchangeable sensor heads: the OZL low-range sensor with a range of 0–0.5 ppm and the EOZ high-range sensor with a range of 0–10 ppm, allowing flexible deployment in both low-level and elevated ozone environments. The monitor features USB-C charging, data logging capability, and can be paired with a lightweight tripod for stationary monitoring deployments.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$115.00
Weekly
$315.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the AeroQual Ranger used for?
It's a portable ozone (O3) monitor used for real-time ozone measurements in environmental monitoring, indoor air quality checks, perimeter monitoring for remediation sites, vapor intrusion studies, wildfire smoke exposure, and ozone generator safety evaluations.
What ozone ranges do the Ranger sensors cover?
It measures ozone using a low-range OZL sensor (0 to 0.5 ppm) or a high-range EOZ sensor (0 to 10 ppm). Choose the range based on whether you expect ambient/low-level ozone or higher industrial levels.
When should I use the low-range sensor vs. the high-range sensor?
Use the low-range OZL when you need sensitivity at low concentrations and are watching smaller changes. Use the high-range EOZ when you expect higher ozone levels and don't want to saturate the instrument. The right choice is driven by expected conditions and the decisions you must make onsite.
Ranger vs. a wearable ozone detector — what's the difference?
A wearable detector is for personal breathing-zone exposure. The Ranger is typically used for area checks, surveys, and mapping. If you need worker exposure data, use personal monitoring; if you need to understand where ozone is highest in a space, area mapping is the better workflow.
Ranger vs. Dräger PAC 8000 O3 — which should I choose?
Use the PAC 8000 O3 for personal continuous monitoring with alarms on a worker. Use the Ranger when you need a survey-style instrument for mapping and comparing areas using different sensor ranges.
How do I set up the Ranger for a consistent area monitoring session?
Place the monitor where it represents the air people are exposed to — not directly in a jet of supply air or next to the source. Let readings stabilize, then document location, time, ventilation status, and any ozone-generating equipment state. If you move it, treat it as a new measurement point.
What's included in the rental kit?
A carrying case, Ranger monitor base, low-range OZL ozone sensor, high-range EOZ ozone sensor, USB-C charger, USB-C data cable, USB-C to USB-A adapter, and calibration certificates for the ozone sensor heads. A lightweight tripod mount can be added to the rental.
How much does it cost to rent the AeroQual Ranger?
Listed rental rates are $115/day and $315/week. Pricing beyond two weeks is quoted — contact RAECO Rents.
Exposure Hazards This Equipment Detects
Ozone (O₃)
CAS:
10028-15-6
Learn More
Updated on March 09, 2026
PEL TWA
0.1 ppm (0.2 mg/m³)
REL TWA
N/A
TLV TWA
Heavy work: 0.05 ppm (0.10 mg/m³); Moderate work: 0.08 ppm (0.16 mg/m³); Light work: 0.10 ppm (0.20 mg/m³) [1995]
Features & Capabilities
| Datalogging: | ✓ Yes |
Equipment Specifications
| Detection Method / Sensor Type: | Swappable sensor heads — OZL gas-sensitive semiconductor (GSS) or EOZ gas-sensitive electrochemical (GSE) |
| Target Gas/Analyte: | Ozone (O3) |
| Measurement Range: | OZL: 0 to 0.5 ppm. EOZ: 0 to 10 ppm |
| Relative Humidity Range: | OZL sensor head: 10% to 90%. EOZ sensor head: 15% to 90% |
| Resolution: | OZL: 0.001 ppm. EOZ: 0.01 ppm |
| Accuracy: | OZL: <±0.008 ppm from 0-0.1 ppm, <±10% from 0.1-0.5 ppm. EOZ: <±0.01 ppm + 7.5%. Minimum detection limit OZL 0.001 ppm, EOZ 0.01 ppm |
| Alarm Features: | Audible alarms |
| Additional Features: | Lightweight, portable design with real-time ozone monitoring. Note: RAECO Rents does not offer Cloud data service with the Aeroqual Ranger |
| Connectivity: | USB-C charging and data transfer |
| Display: | Backlit display for reading in all environments |
| Data Logging Interval: | 1-minute intervals |
| Battery Run Time: | 24 hours for all-day monitoring |
| Charging: | Approximately 4-5 hours |
Kit Contents
Manufacturer Resources
Documents
User manuals, safety guides, and technical documentation from the manufacturer:
- Aeroqual Ranger Brochure PDF
- Aeroqual Ranger Spec Sheet PDF
- Aeroqual Ozone Sensor Specs - EOZ and OZL DOCX
- Aeroqual Ranger Manual PDF
- Aeroqual Ranger Tips and Tricks for Ozone Monitoring DOCX
