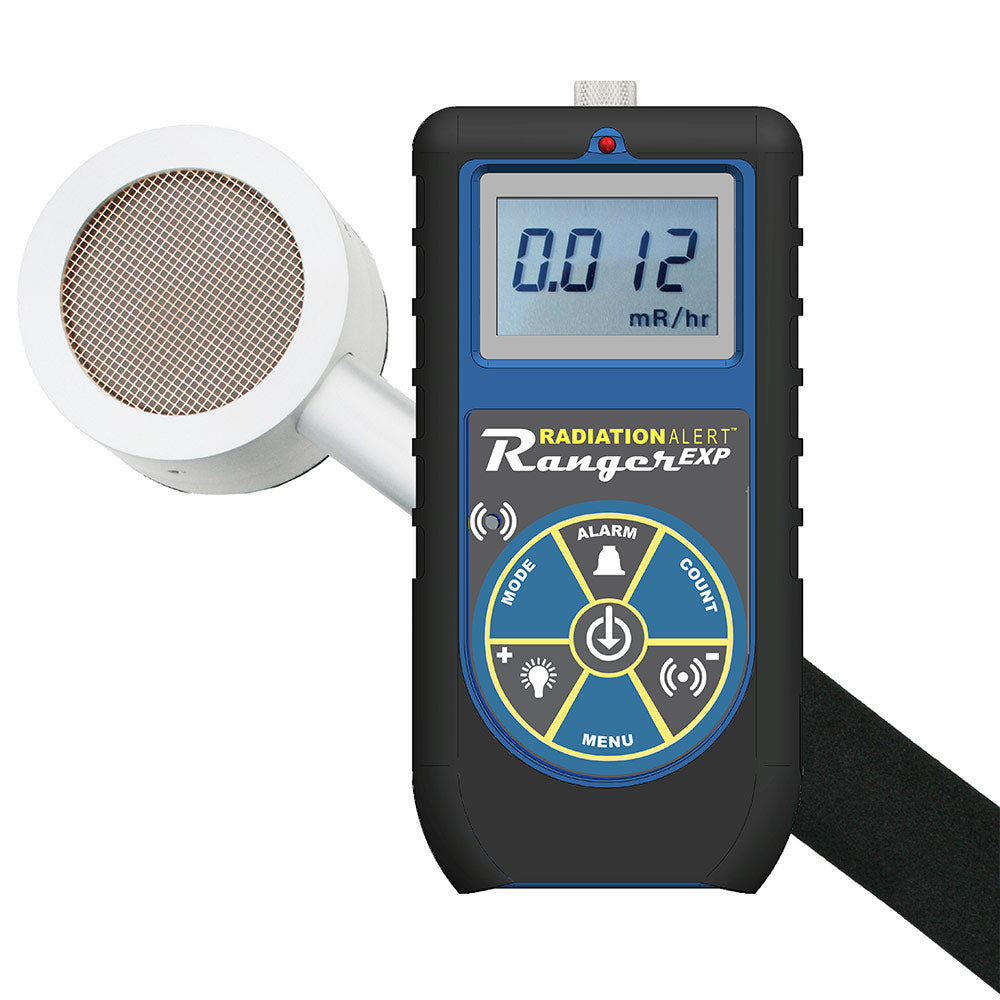

Ranger EXP with Pancake Probe by SE International - Geiger Counter
Ranger EXP with Pancake Probe by SE International - Geiger Counter
The SE International Ranger EXP builds on the standard Ranger with an external pancake probe for broader-area sensitivity in tough field environments. It detects alpha, beta, gamma, and X-ray radiation with a digital readout, red light indicator, silenceable audible beeper, adjustable alert threshold, and built-in timer. Observer USB Software supports data logging, computer alarms, and calibration. Operating range covers 0.001–100 mR/hr, 0–350,000 CPM, 0.01–1000 µSv/hr, and 0–5,000 CPS, with ±10% accuracy referenced to Cs-137 (NIST calibrated). Ideal for surface contamination surveys, environmental screening, and field radiation monitoring.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$60.00
Weekly
$175.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the Radiation Alert Ranger EXP with Pancake Probe used for?
It's a portable Geiger-Müller survey meter for detecting alpha, beta, gamma, and X-ray radiation. Common uses include health physics surveys, surface contamination checks, radiation work area monitoring, and field verification of radiological boundaries.
What radiation types does the pancake probe detect?
The GM end-window pancake probe detects alpha particles (when held close to the surface), beta particles, gamma radiation, and X-rays. Alpha detection requires close proximity since alpha particles have limited range in air.
Ranger EXP vs. standard Ranger: what's the difference?
Both use the same meter, the same 2-inch pancake GM tube and the same ranges and accuracy. The EXP puts the tube in an external probe on a 3 ft cable, so you can reach into tight spaces or scan a surface without moving the meter. The standard Ranger has the tube built into the back. Rental rates are the same.
Pancake probe vs. NaI scintillation detector — when should I use each?
Use the pancake probe for surface contamination surveys and portable beta/gamma checks where detecting surface activity matters. Use a NaI scintillator when you need higher sensitivity to low-level gamma radiation at ambient dose rates or when energy discrimination is needed. The Ranger EXP ships with a GM pancake probe and is not available with a NaI scintillation detector.
What should I confirm before deploying for a radiation survey?
Confirm the radiation type and energy range expected at your site, whether surface contamination or area dose rate measurement is the objective, and that the instrument's measurement range is appropriate for expected activity levels.
What does it cost to rent the Ranger EXP with Pancake Probe?
$60 for 1 day, $120 for 2 days, $175 for 3–5 days. Rentals longer than 14 days are available by quote.
Can I rent it for a month or longer?
Yes. Rentals longer than 14 days are by quote and billed monthly. We send a unit whose calibration stays valid past your return date, and if a unit comes due mid-rental we swap it before you have to send it back.
Can you download the data for me?
Yes. The meter logs readings you can download with the Observer USB software on the flash drive we include. If your company doesn't allow flash drives or third-party software, add a data download to your rental and we'll pull the data and email it to you.
Is this a dosimeter?
No. It's a handheld survey meter that shows the radiation level where you hold it. It isn't worn and doesn't track a person's accumulated dose. For a person's dose over time, use a personal dosimeter.
Exposure Hazards This Equipment Detects
Beta Particles (β)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Gamma Rays (γ)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Alpha Particles (α)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Features & Capabilities
| Calibration Certificate Available: | ✓ Yes |
| Datalogging: | ✓ Yes |
| Monitoring Scope: | Area Monitoring |
Equipment Specifications
| Detection Method / Sensor Type: | External 2-inch pancake Geiger-Müller probe, RAP-RS2 (halogen-quenched, uncompensated) with thin mica window: 1.4–2.0 mg/cm² areal density, 45 mm (1.75 in.) effective diameter; 3 ft BNC cable |
| Target Parameter / Analyte: | Alpha, beta, gamma and X-ray radiation |
| Grade Library: | Built-in isotope efficiencies for sulfur-35, strontium-90/yttrium-90, cesium-137, phosphorus-32, carbon-14, iodine-131, cobalt-60 and alpha |
| Measurement Range: | 0.001 mR/hr (1 µR/hr) to 100 mR/hr; 0 to 350,000 CPM; 0.01 to 1,000 µSv/hr; 0 to 5,000 CPS |
| Response Time: | Display updates every second. Auto-averaging uses the last 30 seconds below 6,000 CPM, 6 seconds from 6,000 to 12,000 CPM and 3 seconds above 12,000 CPM; a fast-response mode can be selected |
| Accuracy: | ±15% typical from the factory; ±10% with NIST source calibration (referenced to Cs-137). RAECO Rents units ship NIST calibrated. Dose-rate readings (mR/hr, µSv/hr) use a Cs-137 conversion and are less accurate for other isotopes |
| Alarm Setpoints: | Adjustable alert from 0.001 to 100 mR/hr and 1 to 350,000 CPM (also µSv/hr and CPS) |
| Alarm Features: | Audible alarm 70 dB at 1 m with flashing radiation icon; red LED flashes with each count; per-count clicks can be muted without muting the alarm |
| Calibration Standard: | Referenced to Cesium-137 (Cs-137); NIST source calibration |
| Recalibration Interval: | Annual; calibration certificate included |
| Connectivity: | Mini-USB to a PC with Observer USB software for data download, computer alarms and calibration. Software is included free with the rental on a flash drive |
| Display: | Backlit graphic LCD |
| Parameters Displayed: | mR/hr, µR/hr, µSv/hr, CPM, CPS and timed total counts (1 to 9,999,000); activity in DPM and Bq using built-in isotope efficiencies |
| Operating Temperature Range: | 14°F to 122°F (-10°C to 50°C) |
| Data Logging Interval: | Default 1 minute; adjustable in Observer USB software |
| Data Logging Capacity: | About 90 hours at 1-minute logging; about 888 hours at 10-minute logging |
| Battery Run Time: | 2 AA alkaline batteries; approx. 800 hours at background |
| Size / Weight: | Meter 140 × 68 × 33 mm (5.5 × 2.7 × 1.3 in.); probe 260 × 70 × 25 mm (10.25 × 2.75 × 1 in.) |
| Intended Use: | Surface contamination surveys, monitoring while working with radionuclides, environmental screening and noble gas detection, especially where the probe needs to reach into tight spaces |
| Variants Available: | Same meter, pancake GM tube, ranges and accuracy as the standard Ranger. The EXP puts the tube in an external probe on a 3 ft cable; the standard Ranger has it built into the back of the meter |
