The Wavecontrol SMP2 configured with WPH-DC, WP400, and WPF18 probes provides electromagnetic field measurement from DC to 18 GHz. It measures static and time-variable magnetic fields (DC–40 kHz), low-frequency electric and magnetic fields (1 Hz–400 kHz), and RF electric fields (300 kHz–18 GHz) with high sensitivity and ISO 17025 calibration.
Used to measure DC magnetic flux, ELF/power-frequency EMF, and RF exposure across telecommunications, power grid, railway, industrial, and research applications. This high-sensitivity kit enables comprehensive static through RF assessments with enhanced low-level detection.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$140.00
Weekly
$490.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the WaveControl SMP2 DC Kit (WPH-DC, WP400, WPF18) used for?
It measures DC and ELF magnetic fields and low-frequency electric fields for occupational EMF exposure assessment — particularly in MRI suites, rail traction systems, and industrial DC equipment environments where both DC and low-frequency AC fields are present.
What does each probe measure?
WPH-DC measures DC and ELF magnetic fields. WP400 is a broadband AC/DC magnetic probe covering a wider frequency range. WPF18 measures ELF electric fields up to 18 Hz. Together they characterize both field components across DC through low-frequency ranges.
SMP2 DC Kit with WPF18 vs. WPF60 — what's the difference?
The WPF60 extends electric field measurement to 60 Hz, covering power-frequency (50/60 Hz) electric fields. The WPF18 is limited to 18 Hz. Choose WPF60 if your assessment includes power-frequency electric field characterization; WPF18 is sufficient for sub-power-frequency applications.
What EMF standards does this kit support?
ICNIRP guidelines, EU Directive 2013/35/EU, and applicable national workplace EMF standards. Confirm which standard and frequency range apply to your jurisdiction before interpreting results.
What should I confirm before deploying?
The field type and frequency range of your source, which compliance standard applies, and whether the WPF18 electric field range is sufficient for your assessment or whether the WPF60 configuration is needed.
What does it cost to rent the WaveControl SMP2 DC Kit?
Contact RAECO Rents for current daily and weekly rates. EMF assessment projects vary in scope from single-source spot checks to multi-area facility surveys — contact us with your site type and measurement objectives for an accurate quote.
Exposure Hazards This Equipment Detects
Electromagnetic Fields (EMF)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Radio Frequency Radiation (RF)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Features & Capabilities
| Calibration Certificate Available: | ✓ Yes |
| Datalogging: | ✓ Yes |
| Monitoring Scope: | Area Monitoring |
Equipment Specifications
| Component Role: | Base meter — supplied with the WPH-DC, WP400 and WPF18 probes. Automatic probe recognition; fit one probe at a time |
| Sensor-Dependent Specifications: | Measured field types, frequency coverage and measurement ranges are determined entirely by the probe fitted. See the probe specifications below. |
| Detection Method / Sensor Type: | Dual-mode EMF meter — static, low-frequency and high-frequency measurement in one device |
| Measured Parameters: | Electric field (E), Magnetic field (H), Static (DC) magnetic field |
| Frequency Range: | DC to 18 GHz across the supplied probe set |
| Sampling Modes: | Broadband (field strength) and selective (FFT spectrum) measurement. RMS, peak, average, max, min and time-series graphing; X, Y, Z and total field. Log interval 0.5 seconds to 6 minutes; measurement time from 1 second to 100 hours |
| Alarm Features: | 2,400 Hz audible alarm with adjustable threshold |
| Additional Features: | Built-in Weighted Peak Method (WPM) for real-time comparison against exposure limits. High-pass filters at 10 Hz, 25 Hz and 100 Hz with the WP400 probe. Spatial averaging. Pairs the 0.5 V/m WPF18 RF probe with DC capability for low-level RF measurement |
| Calibration Standard: | ISO 17025 accredited calibration on each probe, with automatic probe recognition |
| Connectivity: | Mini-USB data download and screenshot capture |
| Operating Temperature Range: | 14°F to 122°F (-10°C to 50°C); 5% to 95% RH, non-condensing |
| Data Storage Capacity: | More than 1 million samples; up to 1,000 measurements |
| Battery Run Time: | More than 15 hours in broadband mode; more than 4.5 hours with FFT spectrum analysis. Internal rechargeable Li-ion battery, 5 to 7 hour charge |
| Size / Weight: | Meter 3.9 x 8.4 x 1.5 in (100 x 215 x 40 mm); 22.4 oz (635 g) |
| Compliance Standards: | ICNIRP, EU Directive 2013/35/EU, FCC, Safety Code 6 (2015), BGV B11 |
| Intended Use: | DC magnetic flux, ELF/power-frequency EMF and RF exposure assessment across telecommunications, power grid, railway, industrial and research applications |
Interchangeable Module Specifications
Key specifications are determined by which of the 3 modules below is fitted. Select one when configuring your rental. Expand any module to view its specifications.
WPH-DC Isotropic Probe
Triaxial Hall sensor with true 3-axis measurement
Range
10 µT to 10 T; overload protection to 20 T
Accuracy
Linearity 0.6% (100 µT-1 T), 1% (100 µT-2.4 T)
Frequency Range
DC (0 Hz) to 40 kHz
Measures
Magnetic field (static and time-varying)

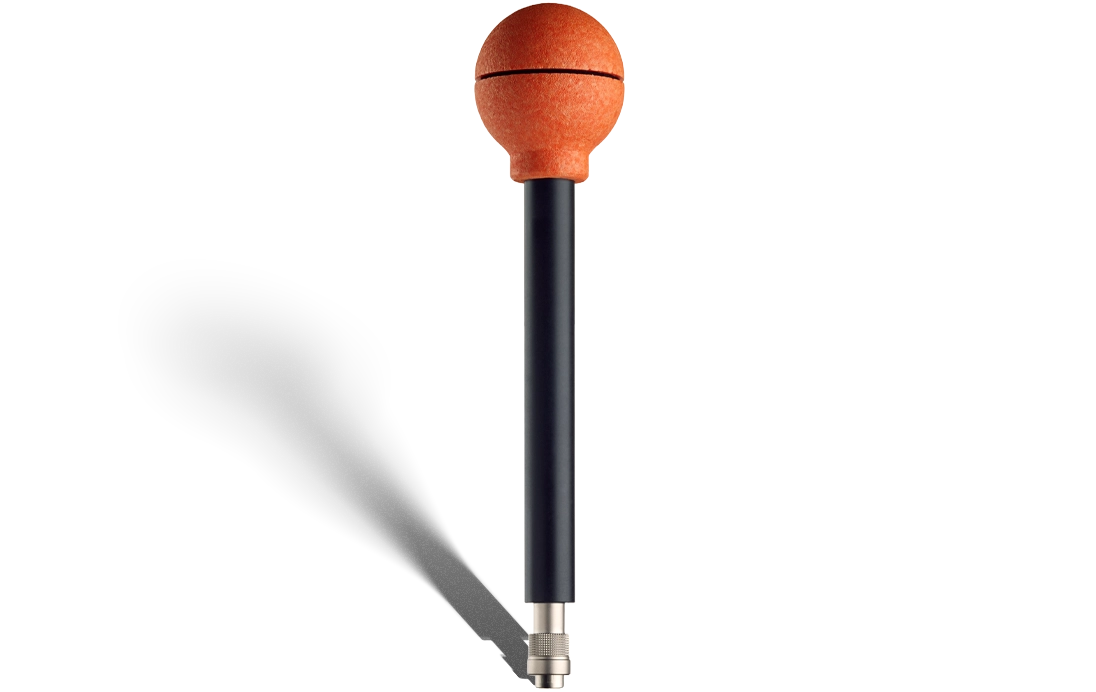

WPF18 Field Probe
Isotropic, true RMS diode technology
Range
Standard: 0.5 to 250 V/m (CW), 0.5 to 30 V/m (RMS). WPF18-HP version: 0.5 to 1,000 V/m (CW), 0.5 to 30 V/m (RMS)
Resolution
Sensitivity 0.5 V/m; resolution <5%
Accuracy
Frequency response ±2 dB (1 MHz-5 GHz), +0/-6 dB (5-18 GHz). Linearity ±0.5 dB (1-150 V/m). Isotropic deviation ±1.2 dB up to 10 GHz, ±3 dB from 10-18 GHz
Frequency Range
300 kHz to 18 GHz
WP400 FIELD PROBE
Isotropic, true RMS measurement with patented E and H field sensors; digital real-time peak detection
Range
Electric field: 1 V/m to 100 kV/m. Magnetic field: 50 nT to 10 mT (100 Hz to 10 kHz), up to 30 mT at 50 Hz; the upper limit rises below 100 Hz and falls above 10 kHz
Resolution
Electric field: <0.4 mV/m above 8 Hz. Magnetic field: <0.1 nT at 50 Hz, <0.05 nT above 100 Hz
Accuracy
Typical uncertainty: E-field 0.67 dB, H-field 0.60 dB. Isotropy: E-field ±5%, H-field ±4%. Linearity ±1% typical, ±2% maximum
Frequency Range
1 Hz to 400 kHz
