SMP2 DC Kit by WaveControl - EMF Meter with WPH-DC, WP400, and WPF60 Probes
SMP2 DC Kit by WaveControl - EMF Meter with WPH-DC, WP400, and WPF60 Probes
The Wavecontrol SMP2 configured with WPH-DC, WP400, and WPF60 probes provides complete electromagnetic field measurement from DC to 60 GHz. It measures static and time-variable magnetic fields (DC–40 kHz), low-frequency electric and magnetic fields (1 Hz–400 kHz), and RF electric fields (1 MHz–60 GHz) with true RMS detection and ISO 17025 calibration.
Used to measure DC magnetic flux, ELF/power-frequency EMF, and RF exposure across telecommunications, power grid, railway, industrial, defense, and research applications. This full-spectrum kit enables comprehensive workplace compliance assessments, site surveys, and troubleshooting in a single rental.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$140.00
Weekly
$490.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the WaveControl SMP2 DC Kit (WPH-DC, WP400, WPF60) used for?
It measures DC/ELF magnetic fields and power-frequency electric fields for occupational EMF exposure assessment in environments with DC machinery, rail traction systems, MRI suites, and industrial DC equipment.
What does each probe measure?
WPH-DC measures DC and ELF magnetic fields. WP400 is a broadband AC/DC magnetic probe covering a wider frequency range. WPF60 measures ELF electric fields up to 60 Hz, covering power-frequency (50/60 Hz) electric field surveys.
This kit vs. the SMP2 DC Kit with WPF18 — what's the difference?
The WPF60 covers electric field measurement up to 60 Hz, making it appropriate for power-frequency (50/60 Hz) electric field characterization. The WPF18 is limited to 18 Hz. Choose this configuration when your assessment includes power-frequency electric fields.
What EMF standards does this kit support?
ICNIRP guidelines, EU Directive 2013/35/EU, and applicable national workplace EMF standards. Confirm which standard and frequency range apply to your jurisdiction.
What should I confirm before deploying?
The field type, frequency range, and source type at your site, and whether this probe configuration covers the measurement frequencies required by your compliance standard.
What does it cost to rent the WaveControl SMP2 DC Kit (WP400 + WPF60)?
Contact RAECO Rents for current daily and weekly rates. For occupational EMF assessments covering multiple work areas or source types, contact us with your site scope for an accurate project quote.
Exposure Hazards This Equipment Detects
Radio Frequency Radiation (RF)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Electromagnetic Fields (EMF)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Features & Capabilities
| Calibration Certificate Available: | ✓ Yes |
| Datalogging: | ✓ Yes |
| Monitoring Scope: | Area Monitoring |
Equipment Specifications
| Component Role: | Base meter — supplied with the WPH-DC, WP400 and WPF60 probes. Automatic probe recognition; fit one probe at a time |
| Sensor-Dependent Specifications: | Measured field types, frequency coverage and measurement ranges are determined entirely by the probe fitted. See the probe specifications below. |
| Detection Method / Sensor Type: | Dual-mode EMF meter — static, low-frequency and high-frequency measurement in one device |
| Measured Parameters: | Electric field (E), Magnetic field (H), Static (DC) magnetic field |
| Frequency Range: | DC to 400 kHz and 1 MHz to 60 GHz across the supplied probe set (no coverage from 400 kHz to 1 MHz) |
| Sampling Modes: | Broadband (field strength) and selective (FFT spectrum) measurement. RMS, peak, average, max, min and time-series graphing; X, Y, Z and total field. Log interval 0.5 seconds to 6 minutes; measurement time from 1 second to 100 hours |
| Alarm Features: | 2,400 Hz audible alarm with adjustable threshold |
| Additional Features: | Built-in Weighted Peak Method (WPM) for real-time comparison against exposure limits. High-pass filters at 10 Hz, 25 Hz and 100 Hz with the WP400 probe. Spatial averaging. Covers DC magnetic fields, power-frequency fields and RF through millimetre-wave 5G in a single rental |
| Calibration Standard: | ISO 17025 accredited calibration on each probe, with automatic probe recognition |
| Connectivity: | Mini-USB data download and screenshot capture |
| Operating Temperature Range: | 14°F to 122°F (-10°C to 50°C); 5% to 95% RH, non-condensing |
| Data Storage Capacity: | More than 1 million samples; up to 1,000 measurements |
| Battery Run Time: | More than 15 hours in broadband mode; more than 4.5 hours with FFT spectrum analysis. Internal rechargeable Li-ion battery, 5 to 7 hour charge |
| Size / Weight: | Meter 3.9 x 8.4 x 1.5 in (100 x 215 x 40 mm); 22.4 oz (635 g) |
| Compliance Standards: | ICNIRP, EU Directive 2013/35/EU, FCC, Safety Code 6 (2015), BGV B11 |
| Intended Use: | DC magnetic flux, ELF/power-frequency EMF and RF exposure assessment across telecommunications, power grid, railway, industrial, defence and research applications |
Interchangeable Module Specifications
Key specifications are determined by which of the 3 modules below is fitted. Select one when configuring your rental. Expand any module to view its specifications.
WPH-DC Isotropic Probe
Triaxial Hall sensor with true 3-axis measurement
Range
10 µT to 10 T; overload protection to 20 T
Accuracy
Linearity 0.6% (100 µT-1 T), 1% (100 µT-2.4 T)
Frequency Range
DC (0 Hz) to 40 kHz
Measures
Magnetic field (static and time-varying)
WP400 FIELD PROBE
Isotropic, true RMS measurement with patented E and H field sensors; digital real-time peak detection
Range
Electric field: 1 V/m to 100 kV/m. Magnetic field: 50 nT to 10 mT (100 Hz to 10 kHz), up to 30 mT at 50 Hz; the upper limit rises below 100 Hz and falls above 10 kHz
Resolution
Electric field: <0.4 mV/m above 8 Hz. Magnetic field: <0.1 nT at 50 Hz, <0.05 nT above 100 Hz
Accuracy
Typical uncertainty: E-field 0.67 dB, H-field 0.60 dB. Isotropy: E-field ±5%, H-field ±4%. Linearity ±1% typical, ±2% maximum
Frequency Range
1 Hz to 400 kHz
WPF60 FIELD PROBE
Isotropic, true RMS diode technology
Range
1 to 1,000 V/m (CW); 1 to 55 V/m (RMS)
Resolution
Sensitivity 1 V/m
Accuracy
Frequency response ±2 dB (2 MHz-17 GHz), ±3 dB (17-40 GHz), ±6 dB (40-60 GHz), -3 dB at 1 MHz. Linearity ±2 dB (1-2 V/m), ±1 dB (2-250 V/m). Isotropic deviation ±1.1 dB below 12 GHz, ±2.2 dB typical 12-60 GHz
Frequency Range
1 MHz to 60 GHz
Kit Contents
Manufacturer Resources
Documents
User manuals, safety guides, and technical documentation from the manufacturer:

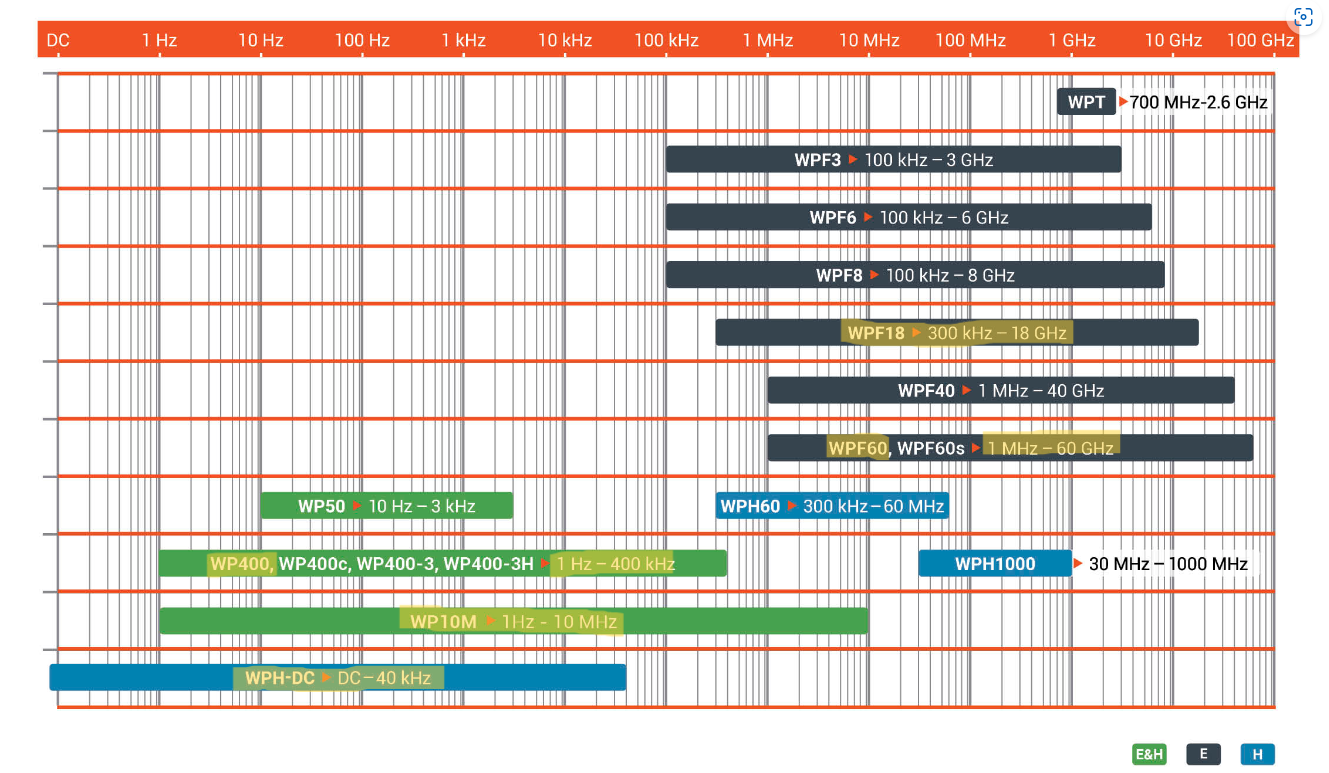

- SMP Probe Range Chart PNG
- SMP3 User Manual PDF
- SMP WPF60 Probe Spec Sheet PDF
- SMP WP400 Probe Spec Sheet PDF
- SMP DC Probe Spec Sheet PDF
- SMP2 Manual PDF
- SMP2 Quick Guide PDF
- SMP2 Specs PDF
