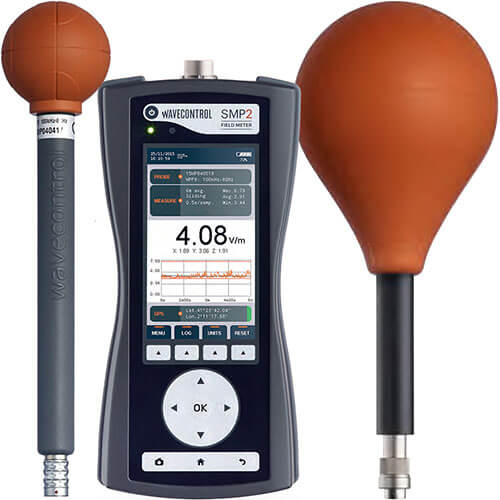

SMP2 by WaveControl - EMF Meter with WP400 and WPF60 Probes
SMP2 by WaveControl - EMF Meter with WP400 and WPF60 Probes
The Wavecontrol SMP2 configured with WP400 and WPF60 probes provides electromagnetic field measurement from 1 Hz to 60 GHz. It measures power-frequency electric and magnetic fields (1 Hz–400 kHz) and RF electric fields (1 MHz–60 GHz) with true RMS detection and ISO 17025 calibration.
Used to measure ELF exposure and RF field strength across power utilities, railway systems, telecommunications, broadcasting, and industrial applications. This versatile kit covers the most common EMF assessment needs in a single rental.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$140.00
Weekly
$490.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the WaveControl SMP2/SMP3 with WP400 and WPF60 used for?
This configuration measures broadband AC magnetic fields (WP400) and power-frequency ELF electric fields (WPF60) for occupational EMF exposure assessment around electrical infrastructure — power lines, transformers, motors, switchgear, and industrial equipment.
What does each probe measure?
WP400 is a broadband isotropic magnetic field probe for AC field characterization across a wide frequency range. WPF60 measures ELF electric fields up to 60 Hz, covering 50/60 Hz power-frequency electric field surveys.
This configuration vs. a DC-focused kit — when do I use which?
Use this configuration for AC source characterization (power lines, transformers, motors) where both magnetic and electric field data are needed. Use a DC kit configuration for static or very low frequency sources such as DC traction systems, MRI static fields, or DC industrial equipment.
What EMF standards does this configuration support?
ICNIRP guidelines, EU Directive 2013/35/EU, and applicable national occupational EMF standards. Confirm the applicable standard and frequency range for your jurisdiction and industry.
What should I confirm before deploying?
Source type (AC vs. DC), the relevant frequency range, applicable compliance standard, and whether you need both magnetic and electric field data or just one field component.
What does it cost to rent the WaveControl SMP2/SMP3 with WP400 + WPF60?
Contact RAECO Rents for current daily and weekly rates. For power-frequency EMF surveys across multiple work areas or electrical infrastructure zones, contact us with your scope for a project quote.
Exposure Hazards This Equipment Detects
Electromagnetic Fields (EMF)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Radio Frequency Radiation (RF)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Features & Capabilities
| Calibration Certificate Available: | ✓ Yes |
| Datalogging: | ✓ Yes |
| Monitoring Scope: | Area Monitoring |
Equipment Specifications
| Component Role: | Base meter — supplied with the WP400 and WPF60 probes. Automatic probe recognition; fit one probe at a time |
| Sensor-Dependent Specifications: | Measured field types, frequency coverage and measurement ranges are determined entirely by the probe fitted. See the probe specifications below. |
| Detection Method / Sensor Type: | Dual-mode EMF meter — low-frequency and high-frequency measurement in one device |
| Measured Parameters: | Electric field (E), Magnetic field (H) |
| Frequency Range: | 1 Hz to 400 kHz and 1 MHz to 60 GHz across the supplied probe set (no coverage from 400 kHz to 1 MHz) |
| Sampling Modes: | Broadband (field strength) and selective (FFT spectrum) measurement. RMS, peak, average, max, min and time-series graphing; X, Y, Z and total field. Log interval 0.5 seconds to 6 minutes; measurement time from 1 second to 100 hours |
| Alarm Features: | 2,400 Hz audible alarm with adjustable threshold |
| Additional Features: | Built-in Weighted Peak Method (WPM) for real-time comparison against exposure limits. High-pass filters at 10 Hz, 25 Hz and 100 Hz with the WP400 probe. Spatial averaging. Covers power-frequency fields and RF through millimetre-wave 5G |
| Calibration Standard: | ISO 17025 accredited calibration on each probe, with automatic probe recognition |
| Connectivity: | Mini-USB data download and screenshot capture |
| Operating Temperature Range: | 14°F to 122°F (-10°C to 50°C); 5% to 95% RH, non-condensing |
| Data Storage Capacity: | More than 1 million samples; up to 1,000 measurements |
| Battery Run Time: | More than 15 hours in broadband mode; more than 4.5 hours with FFT spectrum analysis. Internal rechargeable Li-ion battery, 5 to 7 hour charge |
| Size / Weight: | Meter 3.9 x 8.4 x 1.5 in (100 x 215 x 40 mm); 22.4 oz (635 g) |
| Compliance Standards: | ICNIRP, EU Directive 2013/35/EU, FCC, Safety Code 6 (2015), BGV B11 |
| Intended Use: | ELF exposure and RF field strength assessment across power utilities, railway systems, telecommunications, broadcasting and industrial applications |
Interchangeable Module Specifications
Key specifications are determined by which of the 2 modules below is fitted. Select one when configuring your rental. Expand any module to view its specifications.
WP400 FIELD PROBE
Isotropic, true RMS measurement with patented E and H field sensors; digital real-time peak detection
Range
Electric field: 1 V/m to 100 kV/m. Magnetic field: 50 nT to 10 mT (100 Hz to 10 kHz), up to 30 mT at 50 Hz; the upper limit rises below 100 Hz and falls above 10 kHz
Resolution
Electric field: <0.4 mV/m above 8 Hz. Magnetic field: <0.1 nT at 50 Hz, <0.05 nT above 100 Hz
Accuracy
Typical uncertainty: E-field 0.67 dB, H-field 0.60 dB. Isotropy: E-field ±5%, H-field ±4%. Linearity ±1% typical, ±2% maximum
Frequency Range
1 Hz to 400 kHz

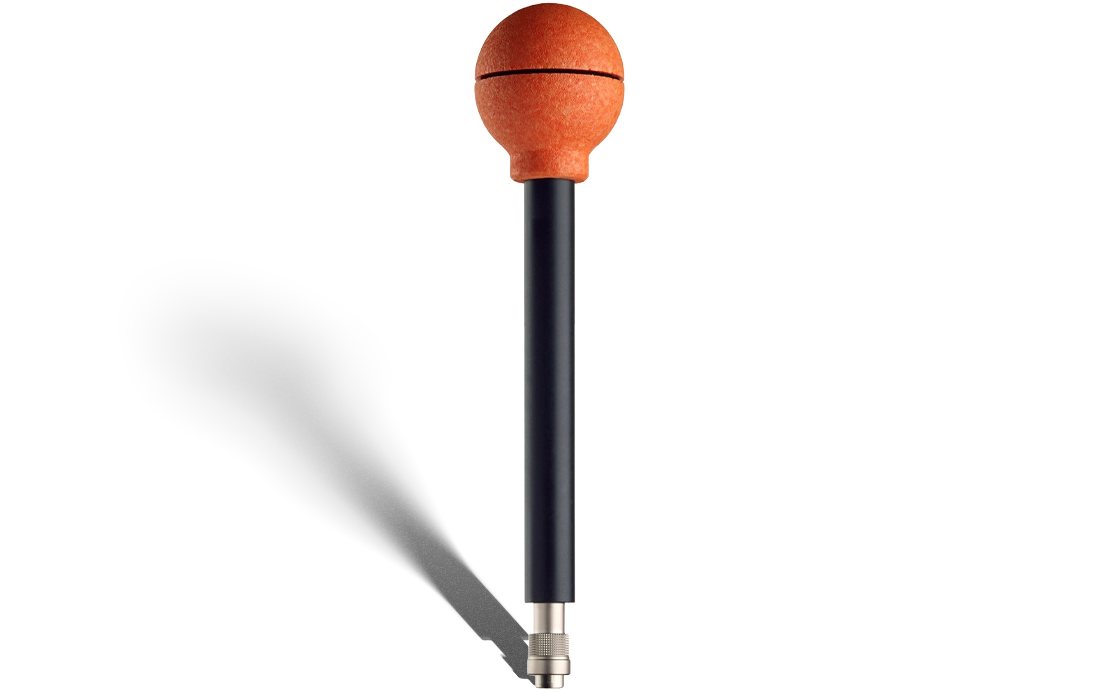

WPF60 FIELD PROBE
Isotropic, true RMS diode technology
Range
1 to 1,000 V/m (CW); 1 to 55 V/m (RMS)
Resolution
Sensitivity 1 V/m
Accuracy
Frequency response ±2 dB (2 MHz-17 GHz), ±3 dB (17-40 GHz), ±6 dB (40-60 GHz), -3 dB at 1 MHz. Linearity ±2 dB (1-2 V/m), ±1 dB (2-250 V/m). Isotropic deviation ±1.1 dB below 12 GHz, ±2.2 dB typical 12-60 GHz
Frequency Range
1 MHz to 60 GHz
Kit Contents
Manufacturer Resources
Documents
User manuals, safety guides, and technical documentation from the manufacturer:
- SMP Probe Range Chart PNG
- SMP3 User Manual PDF
- SMP WP400 Probe Spec Sheet PDF
- SMP WPF60 Probe Spec Sheet PDF
- SMP2 Quick Guide PDF
- SMP3 Quick Start Guide PDF
- Wavecontrol SMP2 Manual PDF
- SMP2 Manual PDF
