SV100A by Svantek - Whole-Body Vibration Exposure Meter

Datalogging
Vibration Meter Manufacturer: Svantek
SV100A by Svantek - Whole-Body Vibration Exposure Meter
SV100A by Svantek - Whole-Body Vibration Exposure Meter
SV100A by Svantek - Whole-Body Vibration Exposure Meter

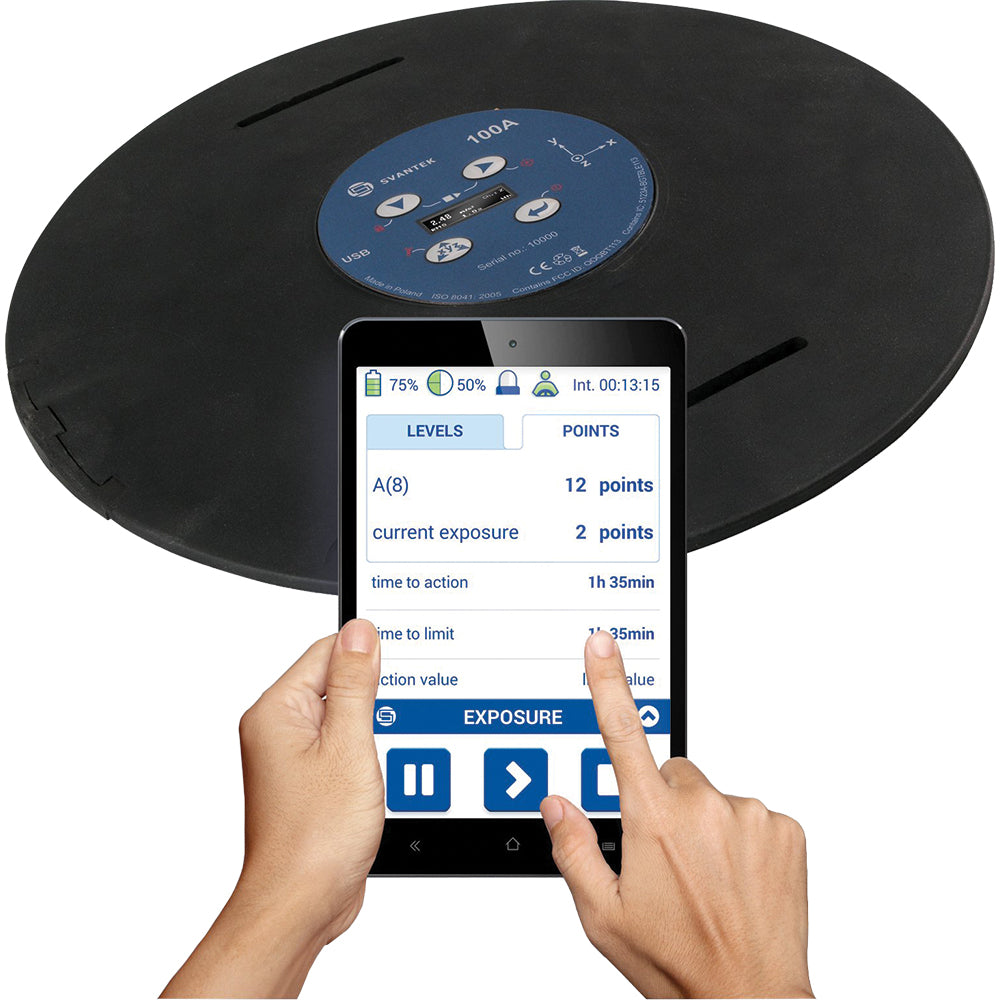

The Svantek SV100A is a whole-body vibration exposure meter compliant with ISO 2631-1, designed to measure vibration on the seat or seat-back in vehicles and industrial equipment. It features Bluetooth connectivity for real-time viewing and alarm management via an Android or iOS app, 8 GB of internal datalogging memory for continuous long-term recording, and a full suite of measurement modes including RMS, VDV (Vibration Dose Value), MTVV, A(8) Daily Exposure, and ELV/EAV time-to-limit calculations. The default horizontal orientation automatically adjusts axis directions and weighting filters when switched to vertical, making it adaptable for a wide range of operator positions and workplace vibration assessments.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent
Purchase
Rental Rates
Daily
$300.00
Weekly
$750.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
See more product details
Need Help Choosing?
Our rental specialists can help you select the right equipment for your specific application.
Call 866-736-8347
1
Choose Purchase Option
Rent short-term or buy to own
Required
Rental Period What are these dates?

No rental period selected

Set your dates to see pricing.

Rental Period What are these dates?
—
Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.

Need equipment sooner than the dates shown? We can often accommodate rush rentals. Call us at 866-736-8347 to confirm availability.

Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Your Configuration

SV100A by Svantek - Whole-Body Vibration Exposure Meter
unit quantity
× $300.00
$300.00 Select dates
Subtotal:
$300.00
Select dates
Technician verified and tested instrumentation before every rental
Expert support available by phone and email
Fast delivery and flexible rental terms
What is the Svantek SV100A used for?
It's a whole-body vibration (WBV) exposure meter for measuring and documenting vibration transmitted to workers through seats or platforms on vehicles and heavy equipment — forklifts, construction machinery, trucks, and industrial vehicles. It supports exposure assessments against EU Directive 2002/44/EC, ISO 2631-1, and ACGIH WBV TLV criteria.
Whole-body vibration vs. hand-arm vibration — when do I need each?
Use whole-body vibration monitoring when vibration is transmitted through a seat, floor, or platform (vehicles and equipment operators). Use hand-arm vibration monitoring for powered hand tools where vibration enters through the hands and wrists. The exposure pathways, standards, and health effects are different.
How is WBV measured with the SV100A?
A tri-axial accelerometer is placed on the seat surface (using a seat pad mount) to measure vibration in three axes simultaneously. The meter calculates frequency-weighted RMS accelerations and daily vibration exposure values (A(8)) per ISO 2631-1.
What details should I confirm before deploying the SV100A?
The vehicle or equipment type, planned monitoring duration, how you'll mount the sensor (seat pad placement), and which exposure standard or action/limit values apply to your program.
Does the SV100A datalog results?
Yes — it logs time-history vibration data for A(8) calculation and exposure documentation. Confirm the logging interval and data download workflow before deployment so results are ready for your report.
What does it cost to rent the Svantek SV100A?
$300/day and $750/week. Pricing beyond two weeks is by quote. WBV assessments covering multiple vehicle or equipment types typically extend across several days — the weekly rate is more economical for any program measuring more than two or three assets.

Exposure Hazards This Equipment Detects

Vibration (m/s²)

CAS: N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A

Features & Capabilities

Datalogging: ✓ Yes

Equipment Specifications

Type/Class Rating: Whole-Body Vibration (ISO 2631-1)
Measurement Axes: Tri-axial, built-in MEMS accelerometer
Measurement Range: 0.01 m/s² RMS to 157 m/s² Peak
Frequency Range: 0.1 Hz to 180 Hz
Frequency Weighting: Wd, Wk, Wm, Wb, Wf (optional, motion sickness)
Exposure Action/Limit Values: A(8) Daily Exposure, ELV/EAV Time to Limit/Action per ISO 2631-1
Bluetooth: ✓ Yes
Data Storage Capacity: 8 GB
Battery Run Time: >24 hours (Ni-MH rechargeable cells, configuration dependent)
Compliance Standards: ISO 8041:2005, ISO 2631-1:1997

Kit Contents

SV100A meter, charge/power supply for SV100A, mini-USB 2.0 cable, mounting belt, Flash Drive with user manual, Supervisor Software, application for Android or iOS, waterproof carrying case.
