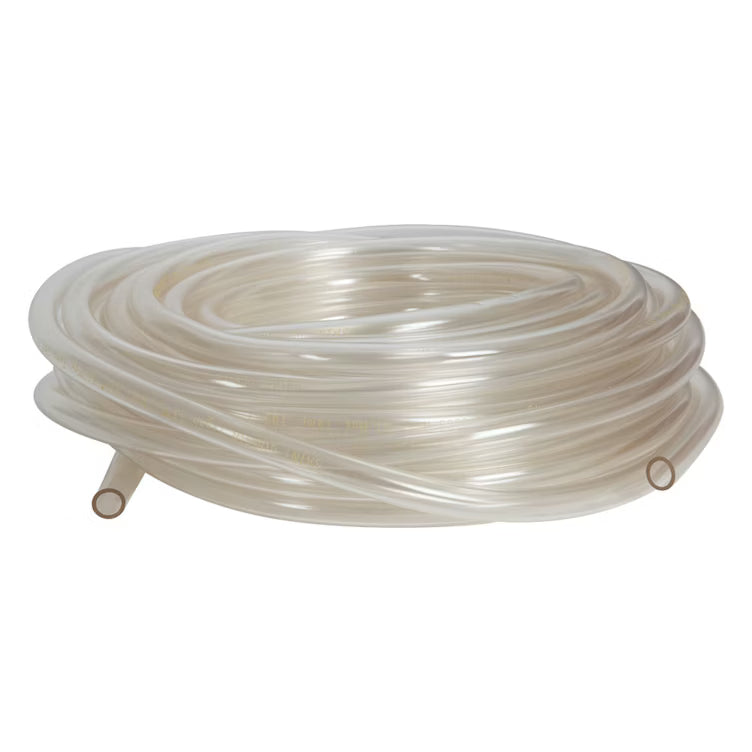

Tygon S3 E-3603 Laboratory Tubing (1/4" ID x 3/8" OD)
Tygon S3 E-3603 Laboratory Tubing (1/4" ID x 3/8" OD)

Sold by the foot. Tygon S3 E-3603 laboratory tubing with 1/4" inner diameter (ID) and 3/8" outer diameter (OD). Designed for air sampling applications requiring superior chemical resistance, low permeability, and non-contaminating performance. Outperforms standard rubber tubing in service life and purity, making it an essential consumable for use with personal air sampling pumps. Coils are marked at 1-foot (30.4 cm) intervals for easy measuring and cutting.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent
Purchase
See more product details
Need Help Choosing?
Our rental specialists can help you select the right equipment for your specific application.
Call 866-736-8347
1
Choose Purchase Option
Rent short-term or buy to own
Required
Rental Period What are these dates?
No dates set, use the "Set Dates" button above to select your rental period.
—
Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.
Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Your Configuration

Tygon S3 E-3603 Laboratory Tubing (1/4" ID x 3/8" OD)
× $2.00
$2.00 Select dates
Subtotal:
$2.00
Select dates
Technician verified and tested instrumentation before every rental
Expert support available by phone and email
Fast delivery and flexible rental terms

About This Product

Sold by the foot. Tygon S3 E-3603 laboratory tubing with 1/4" inner diameter (ID) and 3/8" outer diameter (OD). Designed for air sampling applications requiring superior chemical resistance, low permeability, and non-contaminating performance. Outperforms standard rubber tubing in service life and purity, making it an essential consumable for use with personal air sampling pumps. Coils are marked at 1-foot (30.4 cm) intervals for easy measuring and cutting.

Features & Capabilities

Intrinsically Safe: ✓ Yes
Monitoring Scope: Personal Monitoring

Equipment Specifications

Dimensional Specifications:

  • Inner Diameter (ID):1/4" (0.250")
  • Outer Diameter (OD):3/8" (0.375")
  • Wall Thickness:1/16" (0.062")
  • Color:Clear

Physical Properties:

  • Tensile Strength:1,750 psi
  • Ultimate Elongation:425%
  • Specific Gravity:1.21
  • Durometer Hardness:56 Shore A

Operating Parameters:

  • Temperature Range:-51°F to 165°F (-46°C to 74°C)
  • Maximum Working Pressure @ 73°F:20 psi
  • Maximum Vacuum Rating @ 73°F:20" Hg
  • Minimum Bend Radius:1"

Certifications & Compliance:

  • FDA compliant
  • NSF certified
  • 3-A Sanitary Standards
  • USP Class VI

Material Safety Features:

  • BPA-free– No bisphenol A
  • Phthalate-free– Contains non-DEHP plasticizer
  • Autoclavable– Suitable for steam sterilization
  • Ethylene oxide sterilizable– Compatible with EtO sterilization methods
  • Non-oxidizing– Maintains integrity over time
  • Non-contaminating– Safe for sensitive applications
