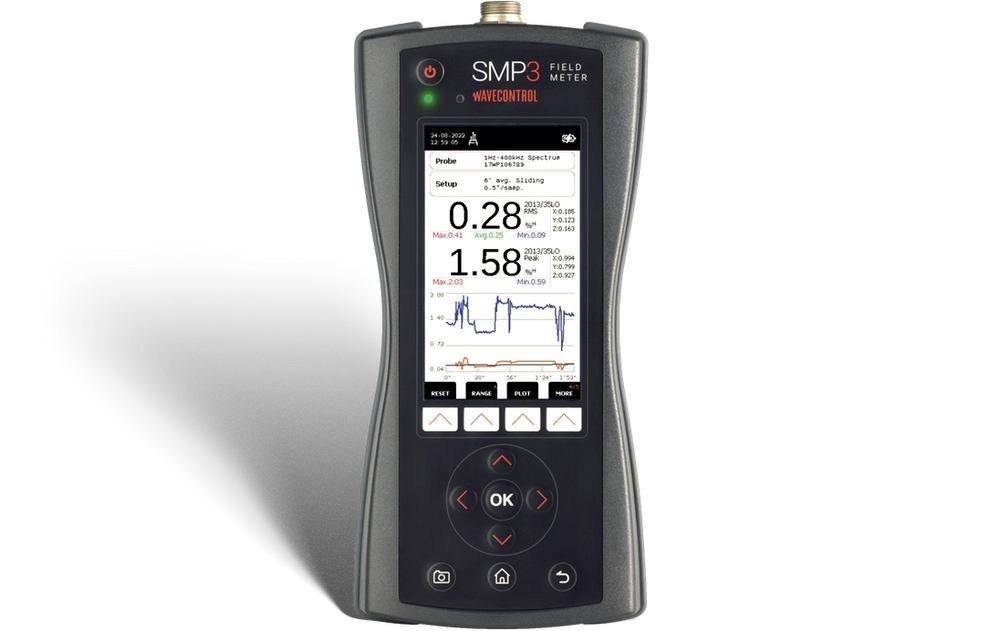

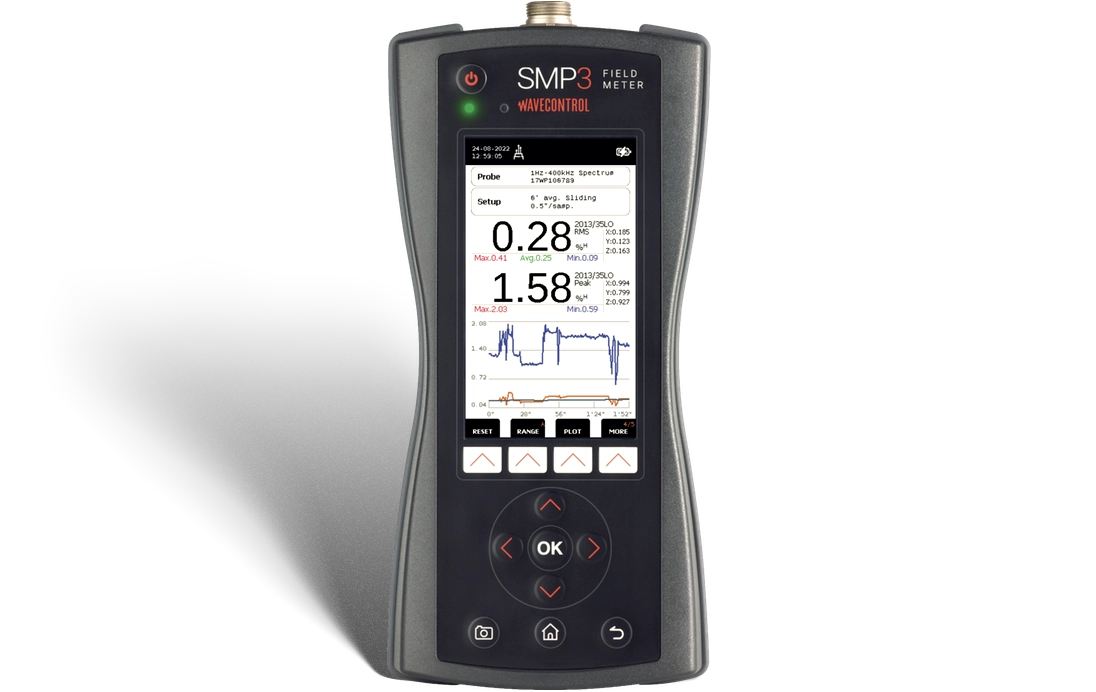

SMP3 DC Kit by WaveControl - EMF Meter with WPH-DC, WPF60 & WP10M Probes
SMP3 DC Kit by WaveControl - EMF Meter with WPH-DC, WPF60 & WP10M Probes
The Wavecontrol SMP3 configured with WPH-DC, WP10M, and WPF60 probes provides complete electromagnetic field measurement from DC to 60 GHz. It measures static and time-variable magnetic fields (DC–40 kHz), extended low-frequency electric and magnetic fields (1 Hz–10 MHz), and RF electric fields (1 MHz–60 GHz) with true RMS detection and ISO 17025 calibration.
Used to measure DC magnetic flux, power-frequency through VLF/LF EMF, and RF exposure across power utilities, railway systems, industrial manufacturing, telecommunications, defense, and research applications. This ultimate full-spectrum kit enables DC through 5G assessments with extended frequency coverage in a single rental.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$140.00
Weekly
$490.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the WaveControl SMP DC Kit used for?
It measures static (DC) electric and magnetic fields and ELF (extremely low frequency) fields for occupational EMF exposure assessment in environments with DC machinery, rail traction systems, MRI suites, and industrial DC equipment.
What does each probe measure?
The WPH-DC probe measures DC and ELF magnetic fields. The WPF60 probe measures ELF electric fields up to 60 Hz. The WP10M probe extends magnetic field measurement to higher frequency ranges. Together they characterize both E-field and H-field components across the DC through ELF range.
SMP DC Kit vs. SMP2 or SMP3 — when should I use this one?
The SMP DC Kit targets static and ELF field measurement (DC machinery, MRI, rail). The SMP2 and SMP3 support broader AC and RF frequency ranges. Choose the DC Kit for DC/ELF sources; choose SMP2/SMP3 for AC power-frequency or higher-frequency sources.
What EMF standards does this kit support?
It supports evaluation against ICNIRP guidelines, EU Directive 2013/35/EU, and national workplace EMF exposure standards. Confirm which standard applies to your jurisdiction and application before interpreting results.
What should I confirm before deploying?
Confirm the field type and frequency range of your source, which probe configuration is needed, and which compliance standard applies to your site and industry.
What does it cost to rent the WaveControl SMP DC Kit?
Contact RAECO Rents for current daily and weekly rates. EMF survey projects typically require one to several days depending on the number of measurement locations and source types — contact us with your site scope for an accurate project quote.
Exposure Hazards This Equipment Detects
Radio Frequency Radiation (RF)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Electromagnetic Fields (EMF)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Features & Capabilities
| Calibration Certificate Available: | ✓ Yes |
| Datalogging: | ✓ Yes |
| Monitoring Scope: | Area Monitoring |
Equipment Specifications
| Component Role: | Base meter — supplied with the WPH-DC, WP10M and WPF60 probes. Automatic probe recognition; fit one probe at a time |
| Sensor-Dependent Specifications: | Measured field types, frequency coverage and measurement ranges are determined entirely by the probe fitted. See the probe specifications below. |
| Detection Method / Sensor Type: | Dual-mode EMF meter — static, low-frequency and high-frequency measurement in one device, with dual-band FFT analysis |
| Measured Parameters: | Electric field (E), Magnetic field (H), Static (DC) magnetic field |
| Frequency Range: | DC to 60 GHz across the supplied probe set |
| Sampling Modes: | Broadband (field strength) and selective (FFT spectrum) measurement. RMS, peak, average, max, min and time-series graphing; X, Y, Z and total field. Log interval 0.5 seconds to 6 minutes; measurement time from 1 second to 100 hours |
| Alarm Features: | 2,400 Hz audible alarm with adjustable threshold |
| Additional Features: | Built-in Weighted Peak Method (WPM) for real-time comparison against exposure limits. Spatial averaging. The widest coverage in the range — DC through millimetre-wave 5G with the low-frequency probe reaching 10 MHz |
| Calibration Standard: | ISO 17025 accredited calibration on each probe, with automatic probe recognition |
| Connectivity: | USB-C data download and screenshot capture |
| Operating Temperature Range: | 14°F to 122°F (-10°C to 50°C); 5% to 95% RH, non-condensing |
| Data Storage Capacity: | More than 1 million samples; up to 1,000 measurements |
| Battery Run Time: | Up to 24 hours in broadband mode; about 10 hours with FFT spectrum analysis. Internal rechargeable Li-ion battery |
| Size / Weight: | Meter 3.9 x 8.4 x 1.5 in (100 x 215 x 40 mm); 22.4 oz (635 g) |
| Compliance Standards: | ICNIRP, EU Directive 2013/35/EU, IEEE, FCC, Safety Code 6 (2015), BGV B11 |
| Intended Use: | DC magnetic flux, power-frequency through VLF/LF EMF, and RF exposure assessment across power utilities, railway systems, industrial manufacturing, telecommunications, defence and research applications |
Interchangeable Module Specifications
Key specifications are determined by which of the 3 modules below is fitted. Select one when configuring your rental. Expand any module to view its specifications.
WPH-DC Isotropic Probe
Triaxial Hall sensor with true 3-axis measurement
Range
10 µT to 10 T; overload protection to 20 T
Accuracy
Linearity 0.6% (100 µT-1 T), 1% (100 µT-2.4 T)
Frequency Range
DC (0 Hz) to 40 kHz
Measures
Magnetic field (static and time-varying)
WPF60 FIELD PROBE
Isotropic, true RMS diode technology
Range
1 to 1,000 V/m (CW); 1 to 55 V/m (RMS)
Resolution
Sensitivity 1 V/m
Accuracy
Frequency response ±2 dB (2 MHz-17 GHz), ±3 dB (17-40 GHz), ±6 dB (40-60 GHz), -3 dB at 1 MHz. Linearity ±2 dB (1-2 V/m), ±1 dB (2-250 V/m). Isotropic deviation ±1.1 dB below 12 GHz, ±2.2 dB typical 12-60 GHz
Frequency Range
1 MHz to 60 GHz

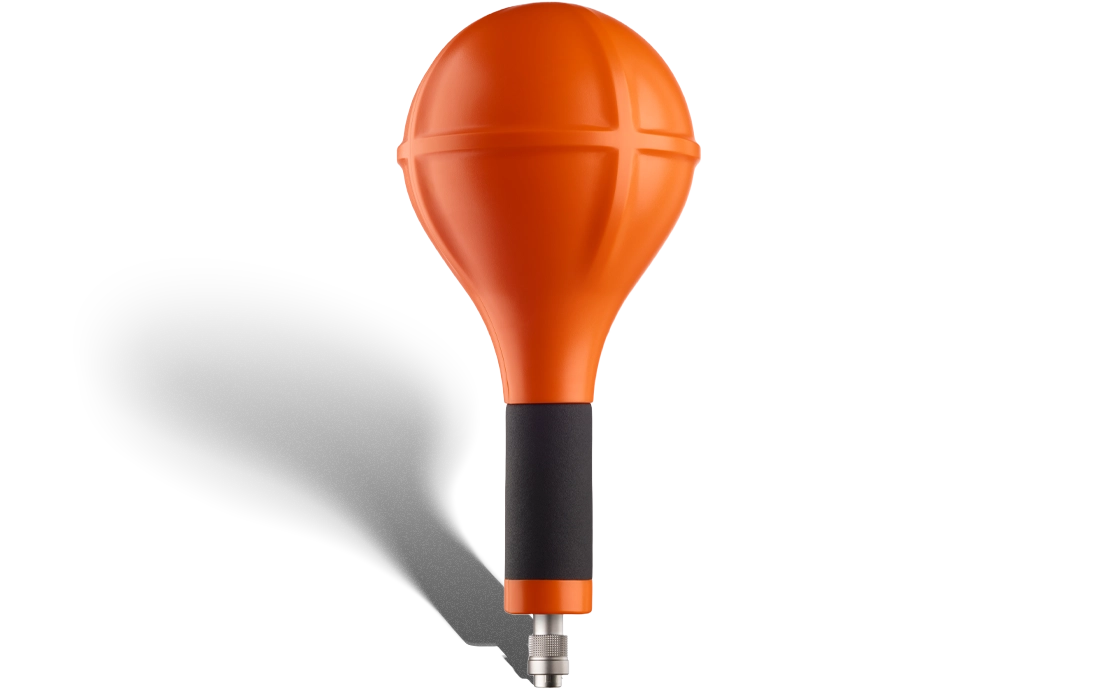

WP10M Field Probe
Isotropic patented coil (100 cm² effective area) with dipole arrangement; true RMS with digital real-time peak detection on both E and H
Range
Electric field: 2 V/m to 100 kV/m up to 80 kHz, 2 V/m to 47 kV/m from 80 kHz to 10 MHz. Magnetic field: 100 nT to 47 mT at 50 Hz, 100 nT to 4.7 mT from 500 Hz to 10 MHz
Resolution
Electric field: <0.4 mV/m above 8 Hz. Magnetic field: <0.1 nT at 50 Hz, <0.05 nT above 100 Hz
Accuracy
Typical uncertainty: E-field 0.67 dB, H-field 0.60 dB. Isotropy: E-field ±5%, H-field ±4%
Frequency Range
Full band: 1 Hz to 10 MHz. Low band: 1 Hz to 400 kHz
