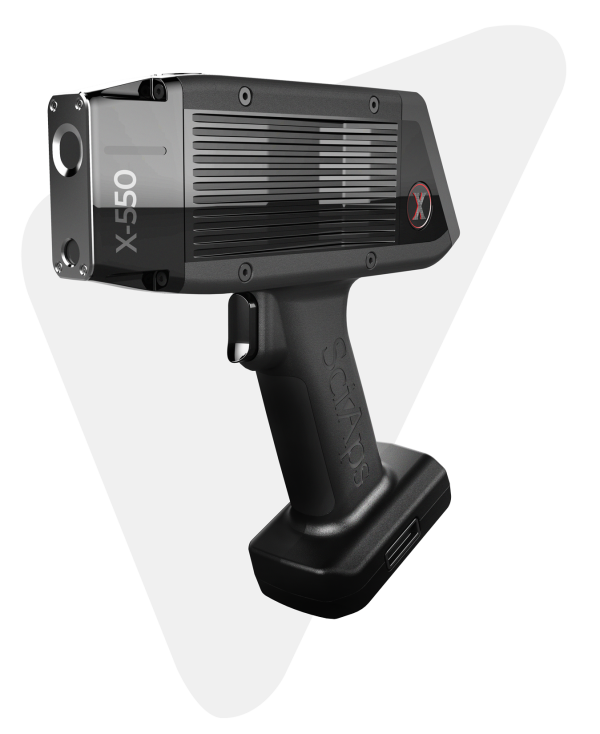

SciAps X-550 XRF Analyzer - Lead Paint

Area Monitoring Datalogging

X-Ray Fluorescence (XRF) Manufacturer: SciAps

Training
Available

Training

Training

How to set precision and non-detection results with the Sciaps X-550

The SciAps X-550 (Lead Paint) is a handheld XRF analyzer configured exclusively for HUD-compliant lead-based paint testing. Using a high-resolution silicon drift detector (SDD), it delivers initial results in 1 second with automatic updates for increased precision. Substrate correction and GPS-tagged results support HUD/EPA compliance documentation. An integrated micro and macro camera enables photo-documentation of test areas. Runs on Android OS with built-in Wi-Fi and Bluetooth. Well-suited for pre-renovation screening, LEED testing, and lead paint compliance programs.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent

Rental Rates

Daily

$630.00

Weekly

$1,495.00

Monthly

Contact for pricing

Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.

When do rental charges start? On the Rental Start Date you choose, not the day we ship. See how renting works

See more product details

Need Help Choosing?

Our rental specialists can help you select the right equipment for your specific application.

Call 866-736-8347

Rent

No rental period selected

Set your dates to see pricing.

Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.

Need equipment sooner than the dates shown? We can often accommodate rush rentals. Call us at 866-736-8347 to confirm availability.

Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Price $630.00 for 1 Day Loading...

Your Configuration

SciAps X-550 XRF Analyzer - Lead Paint

unit quantity

× $630.00

$630.00 Select dates

Subtotal:

$630.00

Select dates

Technician verified and tested instrumentation before every rental

Expert support available by phone and email

Fast delivery and flexible rental terms

It's a handheld XRF analyzer for non-destructive elemental screening of painted surfaces. It identifies lead-based paint on-site in seconds — supporting pre-renovation assessments, clearance decisions, abatement planning, and compliance documentation under HUD, EPA RRP, and OSHA lead standards.

XRF is non-destructive and immediate — results in the field, no sampling or lab wait. Paint chip analysis is destructive and slower but may be required for dispute resolution or regulatory confirmation. Many programs use XRF for screening and lab analysis for confirmation where required.

Measure multiple representative points per component, document substrate, paint condition, and exact test location. One reading per component is not sufficient — lead content can vary by paint layer and location. Use a defined measurement plan with consistent dwell time.

Surface geometry, substrate type, multiple paint layers, and uneven film thickness. Use flat, stable contact where possible, repeat measurements near decision thresholds, and document conditions at each test point.

Re-test the same point, test adjacent points, and if the decision has regulatory or abatement consequences, confirm with your project's required method. Borderline readings require more data, not a snap decision.

This unit uses a rhodium (Rh) anode. Per its published HUD Performance Characteristic Sheet (PCS), at the 1.0 mg/cm² action level a rhodium anode uses a 0.9 mg/cm² threshold in either Timed or Quick mode, with no inconclusive range at that level. Always confirm the specific PCS document matches this unit's anode, action level, and mode before making a compliance determination — RAECO's other X-550 configurations may use a different anode.

Record instrument serial number and operator, calibration/verification checks, date/time, building component description, substrate, measurement results, and photo documentation. Consistent documentation is as important as the readings themselves.

$630/day and $2,390/week. Pricing beyond two weeks is by quote. For pre-renovation or abatement projects covering large buildings, the weekly rate represents significant savings over daily — most multi-unit or multi-floor lead surveys take several days to complete properly.

Exposure Hazards This Equipment Detects

PEL TWA

0.05 mg/m³ [0.03 mg/m³ Action Level] [29 CFR 1910.1025]

REL TWA

0.05 mg/m³ (as Pb)

TLV TWA

0.05 mg/m³ (Lead and inorganic compounds, as Pb) [1991]

Features & Capabilities

Datalogging:	✓ Yes
Monitoring Scope:	Area Monitoring

Equipment Specifications

Excitation Source:	5 W X-ray tube: 40 kV, 200 µA rhodium (Rh) anode
Detector Type:	20 mm² silicon drift detector (SDD), 140 eV resolution FWHM at 5.95 keV Mn K-alpha line
X-ray Filtering:	Standard 1-position filter (upgradeable to 5 positions with additional apps)
Analytical Range:	Pb (lead) standard - this unit is calibrated for Lead Paint testing only; up to 32 elements available with additional app upgrades (not installed on this unit)
Result Speed:	Lead paint: Quick mode about 2–6 seconds (stops once the result is above or below the action level at 95% confidence); Timed mode fixed 10 seconds
Available Apps:	Lead Paint
Exposure Action/Limit Values:	HUD Performance Characteristic Sheets (PCS) at 0.5, 0.7 and 1.0 mg/cm² action levels; no substrate correction. Rhodium anode: no inconclusive range at 0.5 or 1.0 mg/cm²; at 0.7 mg/cm², none in Quick mode and 0.6–0.7 mg/cm² in Timed mode
Calibration Method:	Calibrated/verified using the included metal calibration clip (stainless steel check standard) and wooden lead paint calibration standard block; no additional application-specific calibration standards included, regardless of installed apps
Calibration Standard:	External 316 stainless steel check standard for energy calibration; NIST 1.04 mg/cm² lead paint standard on a wooden block for the HUD PCS calibration check
Connectivity:	Wi-Fi, Bluetooth, GPS, USB, SciAps Profile Builder PC software
Camera:	Integrated micro and macro camera for photo-documentation
Display:	2.7-inch color capacitive touchscreen
Operating Temperature Range:	10°F to 130°F at 25% duty cycle
Battery Run Time:	6 to 8 hours on one battery; hot-swap battery (60 s maximum swap time); rechargeable in the analyzer or an external charger, or AC power
Size / Weight:	8.5 x 9.5 x 2.4 in; 2.98 lb with battery
Regulatory Certifications:	CE, RoHS, USFDA registered, Canada RED Act

Kit Contents

SciAps X-550 XRF w/ Wrist Strap, Li-Ion Battery Packs (2), Battery Charger, Calibration Clip, Lead Paint Standard for PCS Cal, Spare Prolene (Clear) or Kapton (Yellow) Windows, Micro USB Cable, Phillips-Head Screwdriver, Power Cable, Manuals and Calibration Certificate (On Flash Drive), Profile Builder Software (On USB Flash Drive)
