Jerome J405 by Ametek Arizona Instrument - Portable Mercury Vapor Analyzer

Area Monitoring Datalogging
Vapor Analyzer Manufacturer: Ametek Arizona Instrument
Jerome J405 by Ametek Arizona Instrument - Portable Mercury Vapor Analyzer
Jerome J405 by Ametek Arizona Instrument - Portable Mercury Vapor Analyzer
Jerome J405 by Ametek Arizona Instrument - Portable Mercury Vapor Analyzer

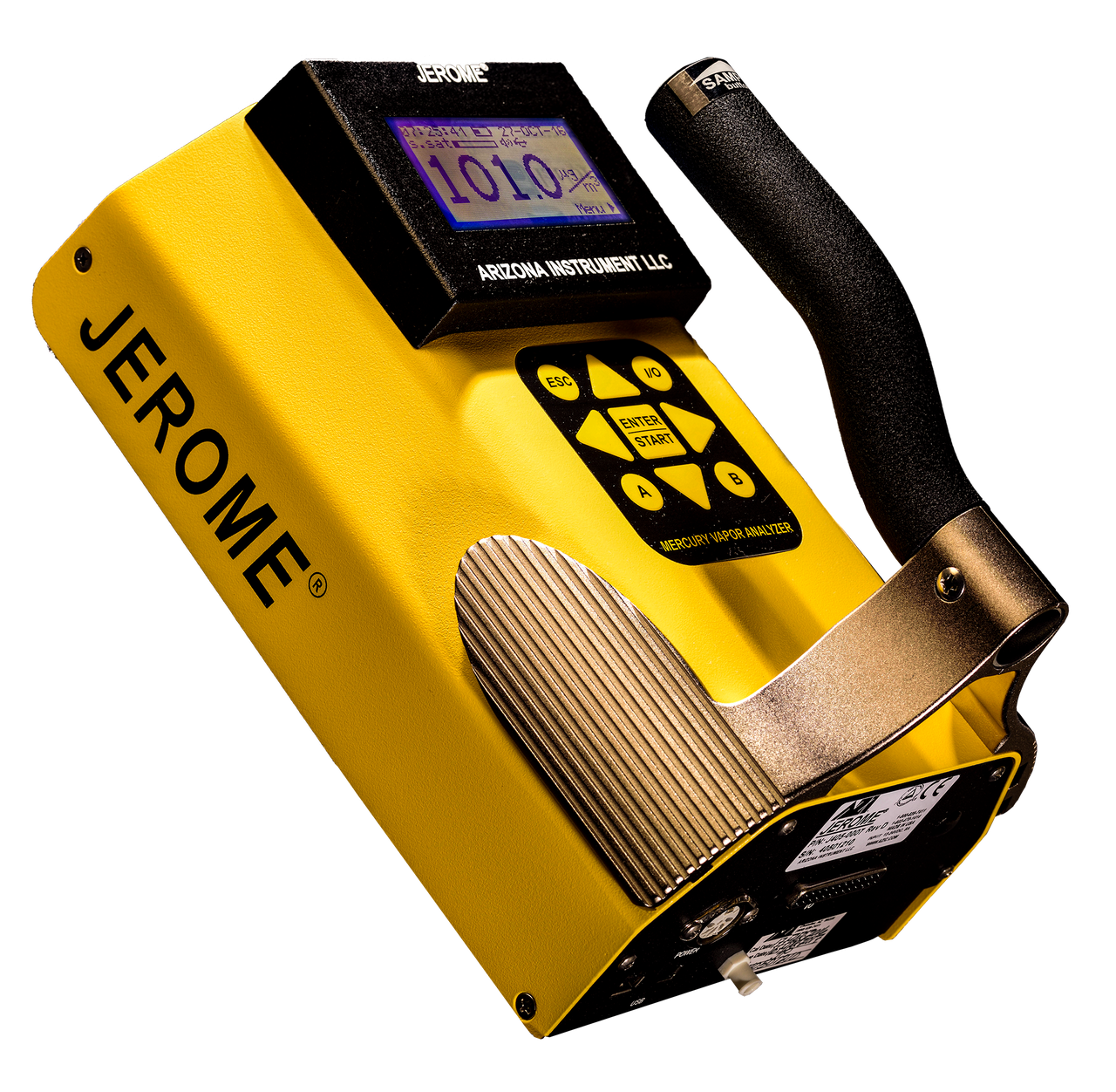

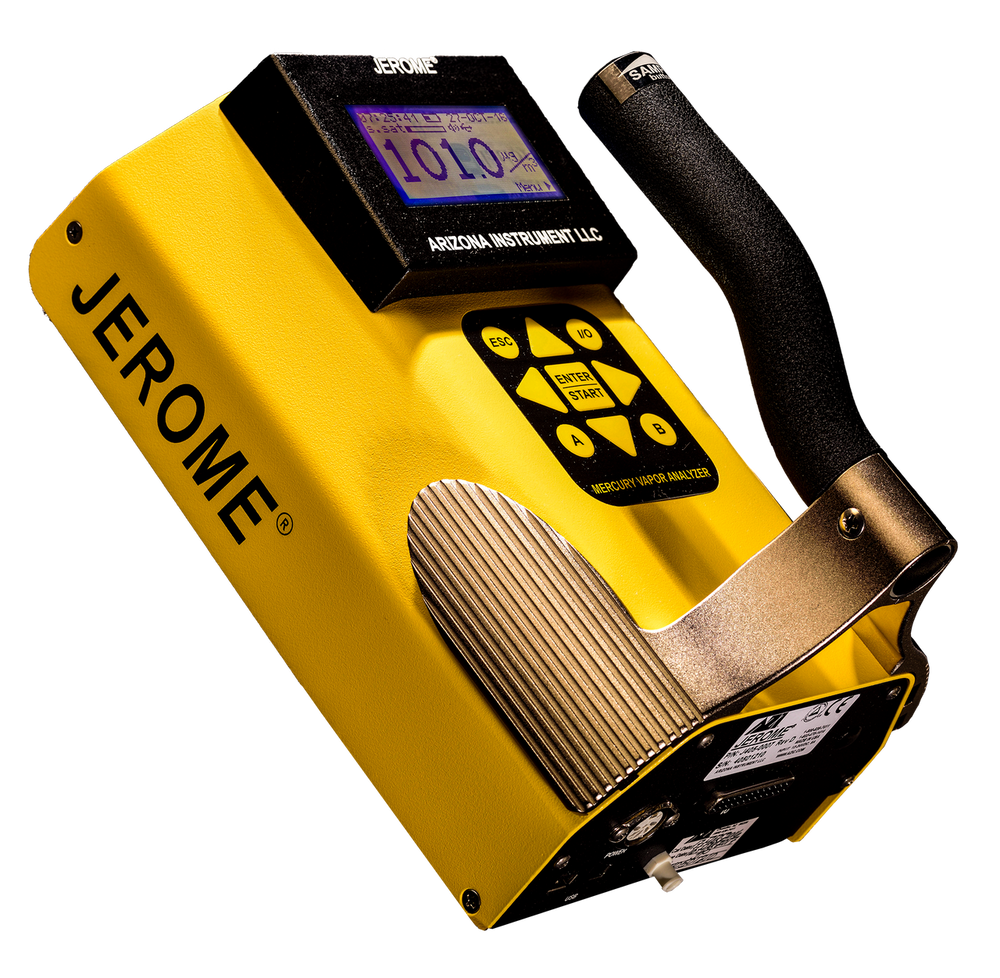

The Jerome J405 by Ametek Arizona Instruments is a portable mercury vapor analyzer designed for spill response, hazardous waste site monitoring, mercury exclusion testing, disposal and recycling, and worker safety applications. Using gold film sensor technology, it detects mercury concentrations from 0.5–999 µg/m³ with a resolution of 0.01 µg/m³, with a 16-second sample mode and 2-second survey mode for fast field screening. A rechargeable battery provides up to 24 hours of continuous operation, and onboard datalogging stores up to 20,000 time/date-stamped samples across 80 labeled sites with USB data transfer and analog 4–20 mA output for continuous monitoring. Accepted by EPA and ATSDR for cleanup applications in low-level mercury situations.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent
Purchase
Rental Rates
Daily
$315.00
Weekly
$910.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
See more product details
Need Help Choosing?
Our rental specialists can help you select the right equipment for your specific application.
Call 866-736-8347
1
Choose Purchase Option
Rent short-term or buy to own
Required
Rental Period What are these dates?
No dates set, use the "Set Dates" button above to select your rental period.
—
Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.
Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Your Configuration

Jerome J405 by Ametek Arizona Instrument - Portable Mercury Vapor Analyzer
× $315.00
$315.00 Select dates
Subtotal:
$315.00
Select dates
Technician verified and tested instrumentation before every rental
Expert support available by phone and email
Fast delivery and flexible rental terms

About This Product

The Jerome J405 by Ametek Arizona Instruments is a portable mercury vapor analyzer designed for spill response, hazardous waste site monitoring, mercury exclusion testing, disposal and recycling, and worker safety applications. Using gold film sensor technology, it detects mercury concentrations from 0.5–999 µg/m³ with a resolution of 0.01 µg/m³, with a 16-second sample mode and 2-second survey mode for fast field screening. A rechargeable battery provides up to 24 hours of continuous operation, and onboard datalogging stores up to 20,000 time/date-stamped samples across 80 labeled sites with USB data transfer and analog 4–20 mA output for continuous monitoring. Accepted by EPA and ATSDR for cleanup applications in low-level mercury situations.

Exposure Hazards This Equipment Detects

Mercury (Hg)

CAS: 7439-97-6
Learn More
PEL TWA
0.1 mg/m³ - Construction (1926) and Maritime (1925) only
REL TWA
0.05 mg/m³
TLV TWA
0.025 mg/m³ [1991]

Features & Capabilities

Datalogging: ✓ Yes
Monitoring Scope: Area Monitoring

Equipment Specifications

  • Detection Range:0.5 µg/m³ to 999 µg/m³
  • Resolution:0.01 µg/m³ (0.00001 mg/m³)
  • Accuracy:±10% at 1.0 µg/m³, ±5% at 25 µg/m³, ±5% at 100 µg/m³
  • Response Time:Sample Mode: 16 seconds, Survey Mode: 2 seconds
  • Flow Rate:750 ± 50 mL/min
  • Units of Measurement:µg/m³, mg/m³
  • Autosample Intervals:1, 2, 5, 10, 15, 30, 45, 60, 90, or 120 minutes
  • Data Logging (optional):Stores 20,000 results with timestamps and 80 location tags
  • Display:3.5" backlit LCD
  • Battery Life:24 hours; full charge in 3 hours

Kit Contents

Jerome J405 Mercury Analyzer with Probe, Zero Air Filter, Ammonia Filter, Chlorine Filter, Power Supply and Charger, Tubing Adapter, ¼" Fritware (3), USB A-B Cable, Flash Drive with Manuals and Specs
