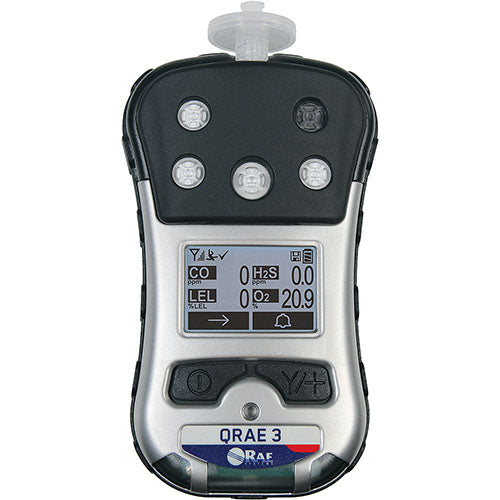

QRAE 3 by Honeywell RAE Systems - Personal Multigas Detector
Training
Available
Available
Training
QRAE 3 by Honeywell RAE Systems - Personal Multigas Detector
Cross-sensitivity warning: This instrument may react to gases beyond its primary target. Check the spec sheet to verify compatibility with your gas mixture before use.
The QRAE 3 by RAE Systems is a compact, wireless-enabled 4-gas monitor designed for personal safety and confined space applications. It simultaneously detects combustible gases, oxygen, hydrogen sulfide, and carbon monoxide with a LEL range of 0–100% (1% resolution), O₂ range of 0–30.0% (0.1% resolution), CO range of 0–500 ppm (1 ppm resolution), and H₂S range of 0–100 ppm (0.1 ppm resolution). Built-in datalogging records STEL, TWA, peak, and minimum values, storing up to three months of data at 1-minute intervals with a minimum 8-hour runtime. Compatible with Honeywell Safety Suite Device Configurator Software for simplified device setup and compliance tracking.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$70.00
Weekly
$210.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the QRAE 3 used for?
The QRAE 3 is a personal multigas detector used for worker protection in confined space and general industrial safety monitoring. It gives quick, continuous readings for the core hazards that drive most entry permits.
What gases does the QRAE 3 detect?
Up to four gases: LEL (combustible), oxygen (O2), hydrogen sulfide (H2S), and carbon monoxide (CO). Confirm your permit hazard list matches this sensor set before you rely on it.
What do LEL and oxygen readings tell me during an entry check?
LEL indicates flammability risk relative to the Lower Explosive Limit. Oxygen tells you whether the atmosphere is oxygen-deficient or enriched. Together they answer the first two permit questions: is it explosive, and is it breathable? Use your permit and SOP thresholds for pass/fail decisions.
What do TWA and STEL mean on a gas monitor?
TWA (time-weighted average) is an average exposure over time. STEL (short-term exposure limit) is a short averaging window meant to capture brief peaks. The QRAE 3 records STEL, TWA, peak, and minimum values so you can see both sustained exposure and spikes.
QRAE 3 vs. a pumped monitor — what's the difference?
Pumped monitors actively draw air through a sampling path and are useful for pre-entry checks through tubing or sampling from a distance. The QRAE 3 is commonly used as a personal monitor. If you need remote sampling before entry, choose a pumped unit or add the correct sampling accessories (a RAE Probe Kit is available).
QRAE 3 vs. MultiRAE — when do I need the bigger monitor?
Use the QRAE 3 when the core 4-gas hazards cover your risk. Use the MultiRAE when you need additional toxics and/or VOC screening (PID) in the same workflow. Start with the hazard assessment, not the instrument.
Can QRAE 3 logs support compliance documentation?
It records STEL, TWA, peak, and minimum values and stores up to three months of data at configurable intervals (1 to 3,600 seconds). That can support recordkeeping, but you still need permit documentation and a process for exporting and storing logs.
How much does it cost to rent the QRAE 3?
Listed rental rates are $70/day and $210/week. Pricing beyond two weeks is quoted — contact RAECO Rents.
Exposure Hazards This Equipment Detects
Oxygen (O₂)
CAS:
7782-44-7
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Carbon Monoxide (CO)
CAS:
630-08-0
Learn More
Updated on March 17, 2026
PEL TWA
50 ppm (55 mg/m³)
REL TWA
35 ppm (40 mg/m³)
TLV TWA
N/A
Lower Explosive Limit (LEL)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Hydrogen Sulfide (H₂S)
CAS:
7783-06-4
Learn More
Updated on March 17, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
1 ppm [2009]
Methane (CH₄)
CAS:
74-82-8
Learn More
Updated on March 09, 2026
PEL TWA
No established PEL
REL TWA
No established REL
TLV TWA
No established TLV
Features & Capabilities
| Calibration Certificate Available: | ✓ Yes |
| Datalogging: | ✓ Yes |
| Intrinsically Safe: | ✓ Yes |
| Monitoring Scope: | Personal Monitoring |
Equipment Specifications
| Detection Method / Sensor Type: | Up to four field-replaceable sensors: catalytic bead for combustibles (with built-in correction factor library), liquid electrolyte for oxygen, and electrochemical for toxic gases |
| Target Gas/Analyte: | Up to four gases simultaneously — combustibles (LEL), oxygen (O2), and toxics including H2S, CO, SO2 and HCN |
| Measurement Range: | O2: 0 to 30.0%; Combustible: 0 to 100% LEL; CO: 0 to 500 ppm; H2S: 0 to 100 ppm; SO2: 0 to 20 ppm; HCN: 0 to 50 ppm; NH3: 100 ppm; PH3: 20 ppm; Cl2: 0 to 50 ppm; NO2: 0 to 50 ppm |
| Relative Humidity Range: | 0% to 95% RH, non-condensing |
| Resolution: | O2: 0.1%; Combustible: 1% LEL; CO: 1 ppm; H2S: 0.1 ppm; SO2: 0.1 ppm; HCN: 0.2 ppm; NH3: 1 ppm; PH3: 0.01 ppm; Cl2: 0.05 ppm; NO2: 0.1 ppm |
| Sample Flow Rate: | Built-in pump or diffusion; samples through tubing up to 98 ft (30 m) |
| Alarm Features: | Multi-tone 95 dB buzzer (at 30 cm), vibration alarm, flashing red LEDs and on-screen indication; latching, non-latching or manual override; pump stall alarm on pumped version; Man Down alarm with pre-alarm and real-time remote wireless notification |
| Calibration Method: | Two-point calibration for zero and span; manual or automatic with AutoRAE 2 |
| Connectivity: | Optional built-in RF modem; RAE Systems Mesh Dedicated Wireless Network on ISM license-free 868 MHz or 900 MHz bands |
| Display: | Monochrome graphic display (128 x 80), 1.57in W x 1.06in H with backlighting; automatic or on-demand screen rotation |
| Controls: | Two-button operation |
| Operating Temperature Range: | -4°F to 122°F (-20°C to 50°C) for T4 temperature code |
| Water/Dust Ingress Rating: | IP-65 (pumped); IP-67 (diffusion) |
| Intrinsically Safe Rating: | US and Canada: Class I, Division 1, Groups A, B, C and D. Europe: IECEx/ATEX II 1G Ex ia IIC T4 |
| Data Logging Interval: | User-configurable, 1 to 3,600 seconds |
| Data Storage Capacity: | Continuous datalogging — 3 months for 4 sensors at 1-minute intervals, 24/7 |
| Battery Run Time: | Rechargeable Li-ion: 14 hours diffusion non-wireless; 11 hours pumped non-wireless; 10 hours diffusion wireless; 8 hours pumped wireless (at 68°F/20°C) |
| Size / Weight: | Diffusion: 5.5 x 3.2 x 1.5 in (140 x 82 x 42 mm), 12.9 oz (365 g). Pumped: 5.7 x 3.2 x 1.7 in (145 x 82 x 42 mm), 14.5 oz (410 g) |
