TSI Q-Trak XP 7585 - Indoor Air Quality Monitor

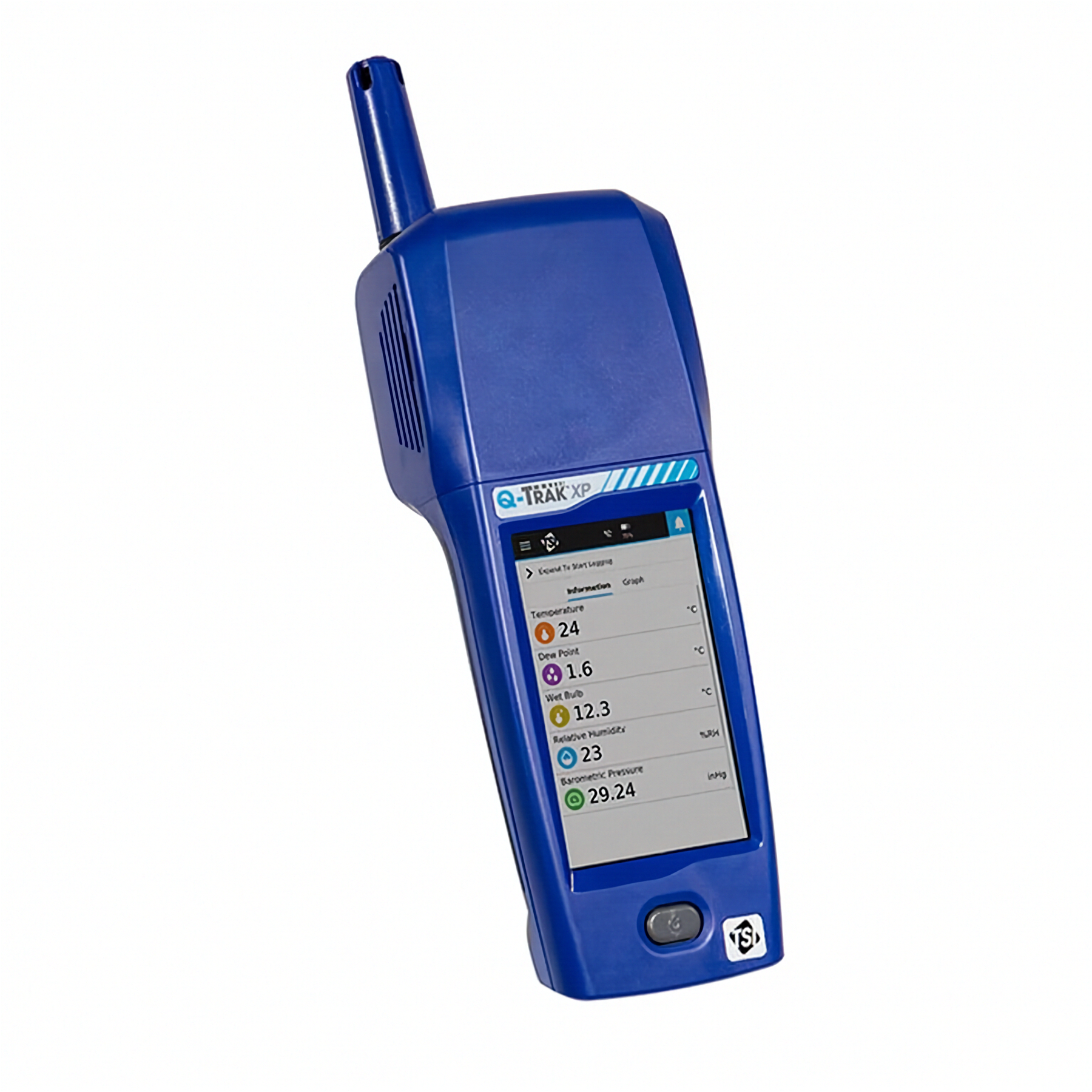

The TSI Q-Trak XP 7585 is a professional-grade indoor air quality monitor that simultaneously measures CO, CO₂, VOC (ppm PID), particulate matter (PM1.0, PM2.5, PM10), particle counts, temperature, relative humidity, and barometric pressure. Its modular design supports up to 6 plug-and-play gas sensors, making it ideal for IAQ assessments, HVAC commissioning, and LEED/WELL certification projects. Optional add-on sensors include TVOC (ppb PID) and Formaldehyde (HCHO), available upon request.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$225.00
Weekly
$645.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the TSI Q-Trak XP 7585 used for?
It's a multiparameter IAQ monitor that simultaneously measures and logs CO, CO₂, VOCs, temperature, RH, barometric pressure, and particulates with real-time graphing. It's designed for IAQ investigations where you need to see how parameters move together — not just one number in isolation.
What are the key measurement ranges?
CO 0–400 ppm, CO₂ 0–5,000 ppm, temperature 0–60°C (±0.5°C), RH 0–100% (±3% RH). VOC, barometric pressure, and PM ranges depend on the specific sensor configuration — confirm at dispatch.
Q-Trak XP vs. a CO2-only meter — when do I need the full suite?
Use a CO₂-only meter when ventilation adequacy is the only question. Use the Q-Trak XP when the complaint or problem could involve particles, VOCs, CO, or a combination — so you can see which parameters correlate with occupant complaints or HVAC events.
Q-Trak XP vs. TSI EVM-7 — which should I choose?
The EVM-7 is built around aerosol mass monitoring with a built-in pump and selectable PM size fractions — best when particulate characterization is the priority. The Q-Trak XP is a modular multiparameter monitor with real-time graphing — best for ventilation and comfort surveys where sensor flexibility matters.
How should I place the Q-Trak XP for reliable results?
Place it at breathing zone height in a representative location — not directly under a supply diffuser, next to an open door, or beside a point source unless that's the exposure scenario. Document placement, HVAC state, and nearby activities so trends are interpretable.
What's a common mistake in IAQ monitoring?
Placing the instrument in a microclimate that isn't representative of the space, then treating the data as building-wide. Always document placement context, and use multiple monitoring locations for large or complex spaces.
What's included in the rental kit?
The Q-Trak XP 7585 monitor, carrying case, USB cable, flash drive with software and manuals, sensor calibration cap, tripod, charger, and screwdriver.
What does it cost to rent the TSI Q-Trak XP 7585?
$225/day and $645/week. Pricing beyond two weeks is by quote. For multi-room IAQ surveys or ongoing building assessments, weekly pricing is almost always more economical. For campaigns requiring simultaneous monitoring in multiple spaces, contact us for a multi-unit quote.
Exposure Hazards This Equipment Detects
Carbon Dioxide (CO₂)
CAS:
124-38-9
Learn More
Updated on October 08, 2026
PEL TWA
5,000 ppm (9,000 mg/m³)
REL TWA
5,000 ppm (9,000 mg/m³)
TLV TWA
5,000 ppm (9,000 mg/m³)
Volatile Organic Compounds (VOCs)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Carbon Monoxide (CO)
CAS:
630-08-0
Learn More
Updated on October 08, 2026
PEL TWA
50 ppm (55 mg/m³)
REL TWA
35 ppm (40 mg/m³)
TLV TWA
25 ppm (29 mg/m³)
Formaldehyde (CH₂O)
CAS:
50-00-0
Learn More
Updated on October 08, 2026
PEL TWA
0.75 ppm [0.5 ppm Action Level]
REL TWA
0.016 ppm
TLV TWA
0.1 ppm [2016]
Particulate Matter (PM₂.₅ / PM₁₀)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Humidity (% RH)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Temperature (°C / °F)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Features & Capabilities
| Calibration Certificate Available: | ✓ Yes |
| Datalogging: | ✓ Yes |
| Monitoring Scope: | Area Monitoring |
Equipment Specifications
| Component Role: | Base instrument — modular design supporting up to six plug-and-play gas sensors. Ships with CO, CO2 and TVOC (ppm PID) fitted; the optional modules below are supplied on request |
| Detection Method / Sensor Type: | CO: Electrochemical. CO2: Non-dispersive infrared (NDIR). TVOC: Photoionization detector (PID). HCHO: Electrochemical. Particulates: Optical particle counter (OPC). Relative humidity: Capacitance |
| Measured Parameters: | Carbon monoxide (CO), Carbon dioxide (CO2), TVOC (ppm PID), Particulate matter (PM1.0, PM2.5, PM10), Particle counts, Temperature, Relative humidity, Barometric pressure |
| Size Fractions Measured: | PM1.0, PM2.5, PM10 |
| Channels/Size Bins: | Particle count size channels: PC0.3, PC0.5, PC1.0, PC2.5, PC5.0 and PC10, reported in particles per litre (P/L) or particles per cubic foot (P/ft³) |
| Measurement Range: | PM mass (PM1.0, PM2.5, PM10): 0 to 500 µg/m³. CO: 0 to 400 ppm. CO2: 0 to 5,000 ppm. TVOC (ppm PID): 0 to 2,000 ppm. Temperature: 32°F to 140°F (0°C to 60°C). Relative humidity: 0% to 100% RH. Barometric pressure: 7.7 to 37.2 inHg (196 to 945 mmHg) |
| Response Time: | CO: under 30 seconds (t90 from zero to 10 ppm). CO2: under 40 seconds (t90 at 20°C ambient). TVOC: under 3 seconds (t90). HCHO: under 90 seconds (t90). Temperature: under 15 seconds (t90). Relative humidity: 8 seconds (t63). Particles: under 10 seconds |
| Resolution: | CO: 0.1 ppm. CO2: 1 ppm. TVOC (ppm PID): 0.1 ppm. PM mass: 1 µg/m³ (0.001 mg/m³). Particle counts: 0.01/cm³, 1/ft³ or 1/L. Temperature: 0.1°C (0.1°F). Relative humidity: 0.1% RH. Barometric pressure: 0.01 inHg (0.1 mmHg) |
| Accuracy: | CO: ±2% of reading ±1 ppm. CO2: ±50 ppm. TVOC (ppm PID): ±3% of reading ±1 ppm from 0-20 ppm, ±1 ppm from 20-250 ppm, ±20 ppm from 250-2,000 ppm. PM mass: ±10 µg/m³ (0-100 µg/m³), ±10% of reading (100-500 µg/m³). Temperature: ±0.5°C (±1.0°F). Relative humidity: ±3% RH. Barometric pressure: ±0.12 inHg (±3.0 mmHg) |
| Calibration Method: | Gas sensors are field-calibratable. The particulate matter sensor is factory calibrated and cannot be field-calibrated |
| Connectivity: | Wi-Fi (direct or via local network) and communication cable to PC; TrakPro Ultra software |
| Optional Sensors: | TVOC (ppb PID), TSI 801408: 0 to 20,000 ppb; 10 ppb resolution; t90 under 3 seconds, Formaldehyde (HCHO), TSI 801409: 0 to 10 ppm; ±1 ppm; 0.01 ppm resolution; t90 under 90 seconds |
| Operating Temperature Range: | 41°F to 104°F (5°C to 40°C) |
| Storage Temperature Range: | -4°F to 140°F (-20°C to 60°C) |
| Data Storage Capacity: | 73,000,000 data points — over 100 days at one-minute log intervals |
| Battery Run Time: | Approximately 8+ hours (Li-ion rechargeable battery pack); AC adapter included for continuous use |
| Power Supply: | Li-ion rechargeable battery pack or universal AC adapter (both included) |
| Size / Weight: | 3.8 x 8.3 x 2.1 in (9.7 x 21.1 x 5.3 cm); 1.2 lb (0.55 kg) with batteries |
| Intended Use: | Indoor air quality assessments, HVAC commissioning, and LEED and WELL certification projects. Not designed for confined spaces in which respirators may be required, or for hazardous and/or explosive environments |
Interchangeable Module Specifications
Key specifications are determined by which of the 2 modules below is fitted. Select one when configuring your rental. Expand any module to view its specifications.
Total Volatile Organic Compounds (TVOC), low-range ppb
Photoionization detector (PID)
Range
0 to 20,000 ppb
Resolution
0.01 ppm
Accuracy
±3% of reading ±1 ppb
Response
Under 3 seconds
Formaldehyde (HCHO)
Optional plug-and-play sensor module for the Q-Trak XP 7585 — supplied on request
Range
0 to 10 ppm
Resolution
0.01 ppm
Accuracy
±1 ppm
Response
Under 90 seconds
Kit Contents
Manufacturer Resources
Documents
User manuals, safety guides, and technical documentation from the manufacturer:
- Q-Trak XP Manual PDF
- Q-Trak_XP Quick Start Guide PDF
- Q-Trak XP FAQ's PDF
- Percent Outdoor Air Calculation - TSI-138 PDF
- Cross Sensitivities PDF
- Q-Trak XP Spec Sheet PDF
- TSI IAQ Webinar Slide Deck PDF
- Q-Trak XP PID Response Factors TN-148 PDF
