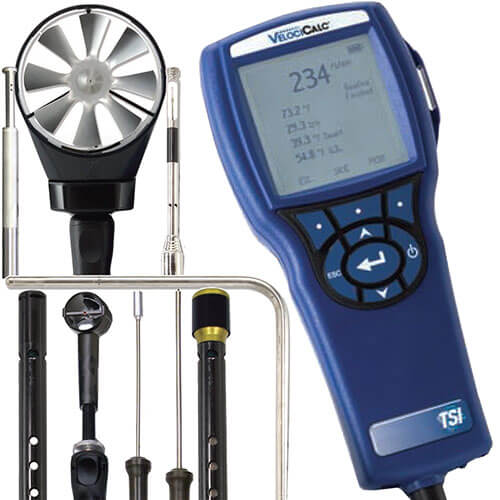

VelociCalc 9565 by TSI - Advanced Multiparameter Ventilation Meter

Area Monitoring Datalogging

Heating, Ventilation & Air Conditioning (HVAC) Manufacturer: TSI Alnor

VelociCalc 9565 by TSI - Advanced Multiparameter Ventilation Meter

Training
Available

Training

How to Download Data From TSI Instruments Using Standard TrakPro Software

Training

Industrial Hygiene (IH) Field Kit Essentials: A Professional Setup Guide

Smoke tubes are not automatically included. Select them under Required Modules if your survey needs airflow visualization, or supply your own.

The VelociCalc 9565 by TSI is a multiparameter indoor air quality meter capable of simultaneously measuring air velocity (0–9,999 ft/min), temperature (14–140°F), relative humidity (5–95% RH), CO₂ (0–5,000 ppm), CO (0–500 ppm), and static pressure (±15 in. H₂O) in a single instrument. With onboard storage for over 26,500 samples, it is ideal for HVAC system diagnostics, ventilation assessments, indoor air quality investigations, and comfort studies in commercial and industrial buildings.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent

Purchase

Rental Rates

Daily

$55.00

Weekly

$150.00

Monthly

Contact for pricing

Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.

See more product details

Need Help Choosing?

Our rental specialists can help you select the right equipment for your specific application.

Call 866-736-8347

Rent

Purchase

No rental period selected

Set your dates to see pricing.

Important: These dates apply to your entire cart. Changing dates will affect pricing for all rental items in your cart.

Need equipment sooner than the dates shown? We can often accommodate rush rentals. Call us at 866-736-8347 to confirm availability.

Used Equipment: This equipment has been previously used and tested. It may show signs of wear but is fully functional and inspected.

Price $55.00 for 1 Day $1,850.00 / unit

982 Indoor Air Quality Probe by TSI Loading...

966 Thermoanemometer Articulating Probe by TSI Loading...

964 Thermoanemometer Straight Probe by TSI Loading...

Telescoping Pitot Probe 8"-38" by TSI - Differential Pressure Loading...

Please select exactly 1 module(s).

Nextteq Smoke Tube 5-Pack Loading...

Your Configuration

VelociCalc 9565 by TSI - Advanced Multiparameter Ventilation Meter

unit quantity

× $55.00

$55.00 Select dates

Subtotal:

$55.00

Select dates

Technician verified and tested instrumentation before every rental

Expert support available by phone and email

Fast delivery and flexible rental terms

It's a multiparameter ventilation meter for HVAC commissioning, test and balance, fume hood and biosafety cabinet testing, cleanroom verification, and IAQ investigations. It measures air velocity, temperature, humidity, static pressure, and optionally CO₂ and CO in a single instrument with interchangeable probes.

Air velocity 0–9,999 ft/min, temperature 14–140°F (±0.5°F), relative humidity 5–95% RH (±3% RH), and static/differential pressure –15 to +15 in. H₂O. When paired with Probe 982, it also measures CO₂ (0–5,000 ppm) and CO (0–500 ppm).

Use a capture hood for direct diffuser CFM readings quickly across many grilles. Use the VelociCalc for velocity traverses, pressure diagnostics, multiparameter troubleshooting, and hood or cabinet testing where a capture hood doesn't apply.

Yes — it supports fume hood and biological safety cabinet face velocity measurements. Confirm your facility's measurement protocol (number of test points, sash position, acceptance criteria) so your measurements match the required method.

Yes — it stores 26,500+ samples across up to 100 test IDs, supporting full commissioning and troubleshooting documentation workflows.

Taking one velocity reading in a turbulent zone and treating it as the representative value. Use a defined traverse or multi-point protocol, allow readings to stabilize at each position, and document probe location and duct geometry.

The meter with selected probe, static pressure probe, neoprene tubing, probe stand, spare batteries, USB cable, AC adapter, TrakPro software and manuals on USB, calibration certificates, and carrying case.

$50/day and $135/week. Pricing beyond two weeks is by quote. For HVAC commissioning, IAQ investigations, or fume hood surveys covering multiple rooms or buildings, the weekly rate provides better value than day rates for any project exceeding three days.

Exposure Hazards This Equipment Detects

PEL TWA

50 ppm (55 mg/m³)

REL TWA

35 ppm (40 mg/m³)

TLV TWA

N/A

PEL TWA

5000 ppm (9000 mg/m³)

REL TWA

5000 ppm (9000 mg/m³)

TLV TWA

5000 ppm (9000 mg/m³)

PEL TWA

N/A

REL TWA

N/A

TLV TWA

N/A

PEL TWA

N/A

REL TWA

N/A

TLV TWA

N/A

PEL TWA

no limits assigned

REL TWA

no limits assigned

TLV TWA

no limits assigned

Features & Capabilities

Calibration Certificate Available:	✓ Yes
Datalogging:	✓ Yes
Monitoring Scope:	Area Monitoring

Equipment Specifications

Type/Class Rating:	Multiparameter Ventilation Meter
Measured Parameters:	Air Velocity, Temperature, Relative Humidity, Static/Differential Pressure, CO2 (with Probe 982), CO (with Probe 982)
Measurement Range:	Air Velocity: 0–9,999 ft/min (0–50 m/s); Temperature: 14–140°F (–10 to 60°C); Relative Humidity: 5–95% RH; Static/Differential Pressure: –15 to +15 in. H2O; CO2 (Probe 982): 0–5,000 ppm; CO (Probe 982): 0–500 ppm
Resolution:	Air Velocity: 1 ft/min (0.01 m/s); Pressure: 0.001 in. H2O (0.1 Pa)
Accuracy:	Air Velocity ±3% of reading or ±3 ft/min; Temperature ±0.5°F; RH ±3% RH; Pressure ±1%; CO2 ±3% or ±50 ppm; CO ±3% or ±3 ppm
Connectivity:	Bluetooth and USB data transfer via LogDat2 or TrakPro software
Compatible Probes / Accessories:	TSI 964 Air Velocity Probe (straight), TSI 966 Air Velocity Probe (articulating), TSI 982 IAQ Probe (CO2/CO)
Data Logging Interval:	1 second to 1 hour
Data Logging Capacity:	26,500+ samples across 100 test IDs
Battery Run Time:	4 AA batteries or AC adapter

Interchangeable Module Specifications

Key specifications are determined by which of the 4 modules below is fitted. Select one when configuring your rental. Expand any module to view its specifications.

Range

CO: 0 to 500 ppm. CO2: 0 to 5,000 ppm. Temperature: 14°F to 140°F (-10°C to 60°C). Humidity: 5% to 95% RH

Resolution

0.1 ppm CO, 1 ppm CO2, 0.1°F, 0.1% RH

Accuracy

CO: ±3 ppm or ±3% of reading, whichever is greater. CO2: ±50 ppm or ±3% of reading, whichever is greater. Temperature: ±1.0°F (±0.5°C). Humidity: ±3% RH

Measures

Carbon monoxide (CO), Carbon dioxide (CO2), Temperature, Relative humidity

Range

Velocity: 0 to 9,999 ft/min (0 to 50 m/s). Temperature: 14°F to 140°F (-10°C to 60°C). Humidity: 5% to 95% RH

Resolution

1 ft/min, 0.1°F, 0.1% RH

Accuracy

Velocity: ±3% of reading or ±3 ft/min, whichever is greater. Temperature: ±0.5°F. Humidity: ±3% RH

Measures

Air velocity, Temperature, Relative humidity

Range

Velocity: 0 to 9,999 ft/min (0 to 50 m/s). Temperature: 14°F to 140°F (-10°C to 60°C). Humidity: 5% to 95% RH

Resolution

1 ft/min, 0.1°F, 0.1% RH

Accuracy

Velocity: ±3% of reading or ±3 ft/min, whichever is greater. Temperature: ±0.5°F. Humidity: ±3% RH

Measures

Air velocity, Temperature, Relative humidity

Range

250 to 15,500 ft/min (1.27 to 78.7 m/s)

Resolution

1 ft/min (0.01 m/s)

Accuracy

±1.5% at 2,000 ft/min (10.16 m/s)

Measures

Air velocity, Volumetric flow

Kit Contents

TSI VelociCalc 9565 meter w/ selected probe, static pressure probe, two 4 ft neoprene tubing lengths, probe stand, four spare AA batteries, mini USB cable, AC power adapter, TrakPro software and manuals on flash drive (CD may be included), calibration certificates for meter and probes (emailed), and carrying case
