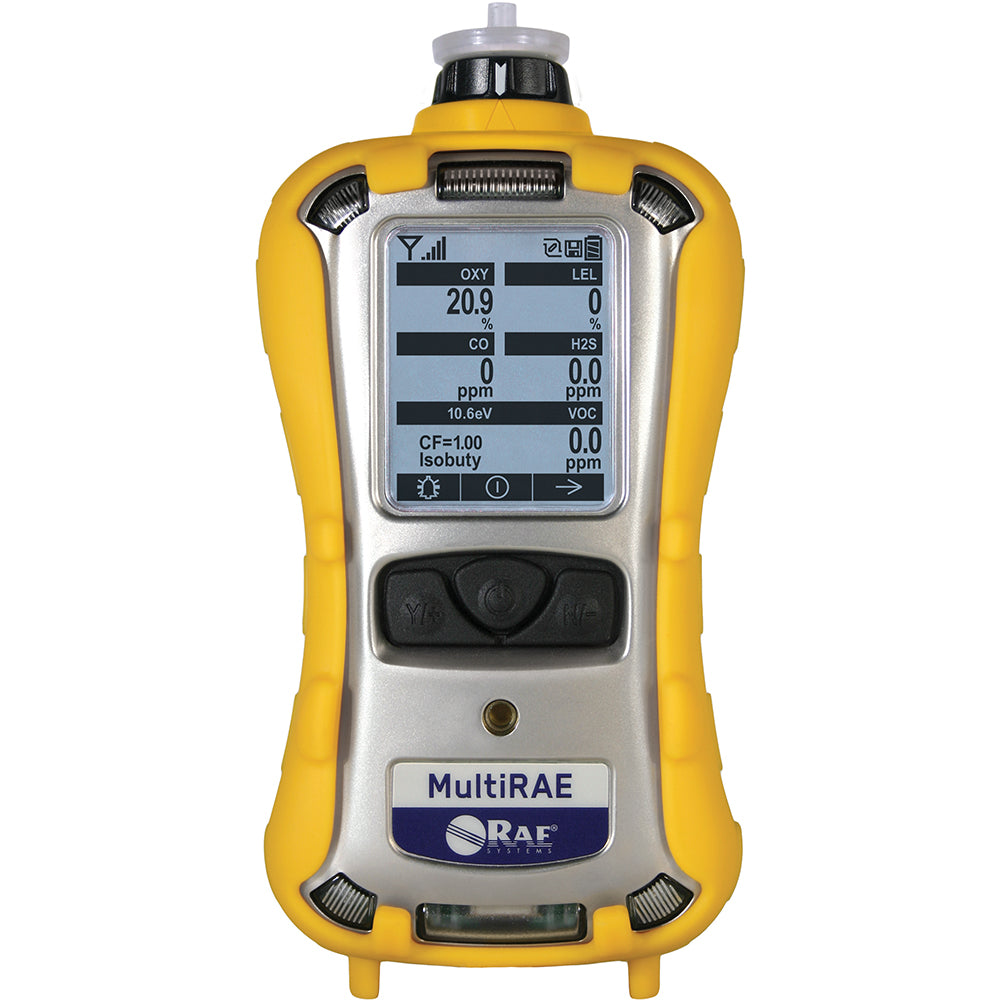

MultiRAE by Honeywell RAE Systems - Multigas Monitor
Cross-sensitivity warning: This instrument may react to gases beyond its primary target. Check the spec sheet to verify compatibility with your gas mixture before use.
This unit comes standard with PID, CO, O₂, H₂S, and LEL sensors. All other sensors are available upon request.
The MultiRAE by Honeywell RAE Systems is a pumped multigas monitor capable of simultaneously detecting up to six gases for personal protection and industrial leak detection in confined space, hazmat response, and industrial hygiene applications. The PID sensor measures VOCs (choice of either HIGH or LOW resolution sensor), and a broad selection of standard and optional electrochemical sensors is available including CO, H₂S, O₂, LEL, and a wide range of additional toxic gas options. Compatible with Honeywell Safety Suite Device Configurator Software for configuration, datalogging, and compliance reporting.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$140.00
Weekly
$410.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the MultiRAE used for?
The MultiRAE is a pumped multigas monitor used for personal protection and industrial leak detection when you need more than a standard 4-gas configuration, including VOC screening with a PID in some configurations.
How many gases can the MultiRAE detect at once?
Up to six gases simultaneously. The exact sensor set depends on how the unit is configured for your job.
What VOC PID range does this MultiRAE measure?
This configuration lists a PID range of 0–5,000 ppm with 0.1 ppm resolution. Use those numbers when deciding whether this setup fits your expected VOC levels.
What does a pumped multigas monitor do that a diffusion monitor doesn't?
A pumped monitor actively pulls air through the instrument, which helps with sampling in tubing runs, tight spaces, and faster sample delivery to sensors. It also means filters and the sampling path matter — clogs and leaks can affect readings.
Is the MultiRAE intrinsically safe?
Yes — certified Intrinsically Safe (DoC, ATEX, IECEx, IP-67, IP-65, and CSA). Always confirm the site classification and follow your safety program.
MultiRAE vs. a standard 4-gas monitor — when do I need MultiRAE?
Use a standard 4-gas monitor when your hazard list is limited to O2/LEL/CO/H2S. Use MultiRAE when your hazard list includes additional toxics and/or VOC screening and you need those channels in one instrument.
What's included with the MultiRAE rental kit?
The monitor, chargers, alkaline battery pack, calibration cap, tools, PID removal tool, spare charcoal filters (for CO sensor), mini USB cable, spare pump filter, and Safety Suite Device Configurator on a flash drive.
How much does it cost to rent a MultiRAE?
Listed rental rates are $140/day and $410/week. Pricing beyond two weeks is quoted — contact RAECO Rents.
Exposure Hazards This Equipment Detects
Carbon Monoxide (CO)
CAS:
630-08-0
Learn More
Updated on March 17, 2026
PEL TWA
50 ppm (55 mg/m³)
REL TWA
35 ppm (40 mg/m³)
TLV TWA
N/A
Chlorine Gas (Cl₂)
CAS:
7782-50-5
Learn More
Updated on March 17, 2026
PEL TWA
1 ppm (3 mg/m³) [Construction and Maritime Industries only]
REL TWA
N/A
TLV TWA
0.1 ppm (0.29 mg/m³)
Ammonia (NH₃)
CAS:
7664-41-7
Learn More
Updated on April 10, 2026
PEL TWA
50 ppm (35 mg/m³)
REL TWA
25 ppm (18 mg/m³)
TLV TWA
25 ppm (17 mg/m³)
Ethylene Oxide (C₂H₄O)
CAS:
75-21-8
Learn More
Updated on March 17, 2026
PEL TWA
1 ppm [0.5 ppm Action Level]
REL TWA
<0.1 ppm (<0.18 mg/m³)
TLV TWA
1 ppm [1990]
Hydrogen Sulfide (H₂S)
CAS:
7783-06-4
Learn More
Updated on March 17, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
1 ppm [2009]
Nitric Oxide (NO)
CAS:
10102-43-9
Learn More
Updated on March 09, 2026
PEL TWA
25 ppm (30 mg/m³)
REL TWA
25 ppm (30 mg/m³)
TLV TWA
25 ppm [1992]
Nitrogen Dioxide (NO₂)
CAS:
10102-44-0
Learn More
Updated on March 17, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
0.2 ppm (0.38 mg/m³)
Sulfur Dioxide (SO₂)
CAS:
7446-09-5
Learn More
Updated on March 09, 2026
PEL TWA
5 ppm (13 mg/m³)
REL TWA
2 ppm (5 mg/m³)
TLV TWA
N/A
Volatile Organic Compounds (VOCs)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Lower Explosive Limit (LEL)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Formaldehyde (CH₂O)
CAS:
50-00-0
Learn More
Updated on March 17, 2026
PEL TWA
0.75 ppm [0.5 ppm Action Level]
REL TWA
0.016 ppm
TLV TWA
0.1 ppm [2016]
Hydrogen (H₂)
CAS:
1333-74-0
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Oxygen (O₂)
CAS:
7782-44-7
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Hydrogen Cyanide (HCN)
CAS:
74-90-8
Learn More
Updated on March 09, 2026
PEL TWA
10 ppm (11 mg/m³) [skin]
REL TWA
N/A
TLV TWA
N/A
Methane (CH₄)
CAS:
74-82-8
Learn More
Updated on March 09, 2026
PEL TWA
No established PEL
REL TWA
No established REL
TLV TWA
No established TLV
Chlorine Dioxide (ClO₂)
CAS:
10049-04-4
Learn More
Updated on April 29, 2026
PEL TWA
0.1 ppm (0.3 mg/m³)
REL TWA
0.1 ppm (0.3 mg/m³)
TLV TWA
0.1 ppm (0.28 mg/m³)
Features & Capabilities
| Calibration Certificate Available: | ✓ Yes |
| Datalogging: | ✓ Yes |
| Intrinsically Safe: | ✓ Yes |
| Monitoring Scope: | Personal Monitoring |
Equipment Specifications
| Component Role: | Base instrument — accepts up to five interchangeable sensors simultaneously, or six gases when the CO+H2S combo sensor is fitted |
| Sensor-Dependent Specifications: | Target gases, measurement ranges and resolutions are determined entirely by which sensors are fitted. See the interchangeable module specifications below. |
| Detection Method / Sensor Type: | Over 30 intelligent interchangeable field-replaceable sensors — PID for VOCs, electrochemical for toxic gases and oxygen, catalytic and NDIR for combustibles, and NDIR for CO2. Sensors store their own calibration data and can be swapped in the field |
| Grade Library: | 190 VOC correction factors and 55 combustible gas correction factors onboard |
| Relative Humidity Range: | 0% to 95% RH, non-condensing |
| Sample Flow Rate: | Built-in pump, average 250 cc/min, with automatic shutoff in low-flow conditions |
| Alarm Features: | Multi-tone audible (95 dB at 30 cm), vibration, flashing bright red LEDs and on-screen indication, plus wireless remote alarm notification; Man Down alarm with pre-alarm |
| Calibration Method: | Zero, span and bump calibration; automatic with AutoRAE 2 or manual |
| Connectivity: | PC setup and data download via charging/PC communication cradle, travel charger, or AutoRAE 2; optional built-in RF modem for wireless data and alarm status. RAE Systems Dedicated Wireless Network on ISM license-free bands, typical range 656 ft (200 m) |
| Display: | Monochrome graphical LCD (128 x 160) with backlighting and automatic screen flip; shows real-time gas concentrations, PID measurement gas and correction factor, battery status, datalogging and wireless status, plus STEL, TWA, peak and minimum values |
| Operating Temperature Range: | -4°F to 122°F (-20°C to 50°C) |
| Water/Dust Ingress Rating: | IP-65 |
| Intrinsically Safe Rating: | CSA: Class I, Division 1, Groups A, B, C and D, T4. ATEX: 0575 II 2G Ex ia d IIC T4 Gb. IECEx: Ex ia d IIC T4 Gb |
| Data Logging Interval: | User-configurable, 1 to 3,600 seconds |
| Data Storage Capacity: | Continuous datalogging — 6 months for 5 sensors at 1-minute intervals, 24/7 |
| Battery Run Time: | Rechargeable Li-ion approx. 12 hours (recharge under 6 hours); extended-duration Li-ion approx. 18 hours (recharge under 9 hours); alkaline adapter with 4x AA approx. 6 hours |
| Size / Weight: | 7.6 x 3.8 x 2.6 in (193 x 96.5 x 66 mm); 31 oz (880 g) |
| Regulatory Certifications: | EMC Directive 2004/108/EC, R&TTE Directive 1999/5/EC, ATEX Directive 94/9/EC |
| Compliance Standards: | MIL-STD-810F, CSA C22.2 No. 152 (LEL), ANSI/ISA-12.13.01 (LEL) |
Interchangeable Module Specifications
Key specifications are determined by which of the 19 modules below is fitted. Select one when configuring your rental. Expand any module to view its specifications.
Volatile Organic Compounds (VOCs)
Photoionization detector (PID), 10.6 eV lamp — high resolution
Range
0 to 5,000 ppm
Resolution
0.1 ppm
Response
T90 < 15 seconds (isobutylene)
Operating Temp
-20°C to 50°C (MultiRAE family)
Volatile Organic Compounds (VOCs)
Photoionization detector (PID), 10.6 eV lamp — standard resolution
Range
0 to 1,000 ppm
Resolution
1 ppm
Response
T90 < 15 seconds (isobutylene)
Operating Temp
-20°C to 50°C (MultiRAE family)
Carbon Monoxide (CO)
Electrochemical
Range
0 to 500 ppm
Resolution
1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Oxygen (O2)
Electrochemical
Range
0 to 30% Vol.
Resolution
0.1% Vol.
Operating Temp
-20°C to 50°C (MultiRAE family)
Combustible gases (% LEL)
Catalytic bead
Range
0 to 100% LEL
Resolution
1% LEL
Response
T90 < 15 seconds
Operating Temp
-20°C to 50°C (MultiRAE family)
Hydrogen Sulfide (H2S)
Electrochemical
Range
0 to 100 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Carbon Monoxide (CO) + Hydrogen Sulfide (H2S)
Electrochemical (dual-element)
Range
CO: 0 to 500 ppm; H2S: 0 to 200 ppm
Resolution
CO: 1 ppm; H2S: 0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family)
Carbon Monoxide (CO), hydrogen-compensated
Electrochemical with hydrogen compensation
Range
0 to 2,000 ppm
Resolution
10 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Sulfur Dioxide (SO2)
Electrochemical
Range
0 to 20 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Nitrogen Dioxide (NO2)
Electrochemical
Range
0 to 20 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Nitric Oxide (NO)
Electrochemical
Range
0 to 250 ppm
Resolution
0.5 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Hydrogen (H2)
Electrochemical
Range
0 to 1,000 ppm
Resolution
2 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Chlorine (Cl2)
Electrochemical
Range
0 to 50 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Ammonia (NH3)
Electrochemical
Range
0 to 100 ppm
Resolution
1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Formaldehyde (HCHO)
Electrochemical
Range
0 to 10 ppm
Resolution
0.01 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Ethylene Oxide (EtO-A)
Electrochemical
Range
0 to 100 ppm
Resolution
1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Hydrogen Cyanide (HCN)
Electrochemical
Range
0 to 50 ppm
Resolution
0.5 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Phosphine (PH3)
Electrochemical
Range
0 to 20 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Chlorine Dioxide (ClO2)
Electrochemical
Range
0 to 1 ppm
Resolution
0.03 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Kit Contents
Manufacturer Resources
Documents
User manuals, safety guides, and technical documentation from the manufacturer:
- RAE Systems MultiRAE Datasheet PDF
- RAE Systems MutiRAE (Pumped) Quick Start Guide PDF
- RAE EC Cross-Sensitivity TN-114 PDF
