MultiRAE Lite CO2 by Honeywell RAE Systems - Multigas Monitor
Cross-sensitivity warning: This instrument may react to gases beyond its primary target. Check the spec sheet to verify compatibility with your gas mixture before use.
This unit comes standard with CO2, CO, O₂, H₂S, and LEL sensors. All other sensors are available upon request.

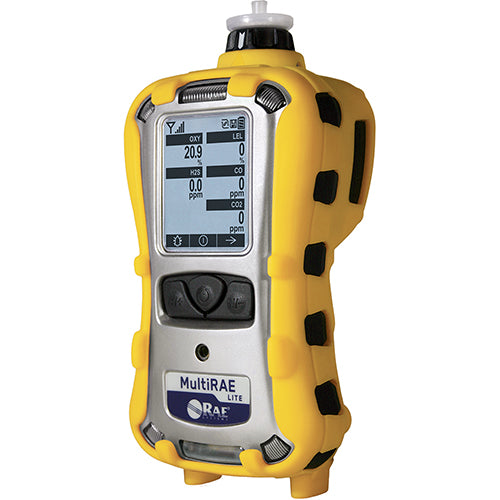

The MultiRAE Lite CO₂ by Honeywell RAE Systems is a pumped multigas monitor capable of simultaneously detecting up to six gases for personal protection, confined space monitoring, and industrial hygiene applications. The CO₂ sensor detects from 0–50,000 ppm (100 ppm resolution), and a broad selection of electrochemical sensors is available including CO (0–500 ppm), H₂S (0–100 ppm), O₂ (0–30% vol.), LEL (0–100%), NH₃ (0–100 ppm), NO₂ (0–20 ppm), SO₂ (0–20 ppm), and more. The modular design supports up to 6 plug-and-play sensors and is compatible with Honeywell Safety Suite Device Configurator Software for data management and compliance reporting.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$110.00
Weekly
$335.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the MultiRAE Lite CO2 used for?
It's a pumped multigas monitor used when CO2 is part of the hazard list and you also need oxygen, combustibles (LEL), and toxic gas channels in the same instrument. Adding CO2 to a multigas workflow helps catch both exposure and displacement (asphyxiation) risk.
What CO2 range does this monitor measure?
CO2 is measured from 0–50,000 ppm (100 ppm resolution). Use that as your planning range for CO2-heavy environments.
How many sensors can the MultiRAE Lite platform support?
Up to six sensors, including an optional PID/VOC sensor. The exact sensor package should be driven by your hazard assessment and permit requirements.
MultiRAE Lite CO2 vs. a CO2-only detector — what's the difference?
A CO2-only detector is simpler when CO2 is the only concern. The MultiRAE Lite CO2 is for multi-hazard jobs where you also need oxygen, combustibles, and toxics on the same screen. If the permit includes multiple hazards, a single-gas CO2 device can leave blind spots.
Is the MultiRAE Lite CO2 intrinsically safe?
Yes — certified Intrinsically Safe (DoC, ATEX, IECEx, IP-67, IP-65, and CSA). Confirm your site classification before use.
What runtime does it offer?
Up to 12 hours with a rechargeable Li-ion pack, plus an included alkaline pack for an additional 6 hours. Plan battery logistics so you don't lose coverage mid-shift.
What's included with the rental kit?
The monitor plus travel charger, AC charger, alkaline battery pack, calibration cap, tools, PID removal tool, spare filters, USB cable, and Safety Suite software on a flash drive.
How much does it cost to rent the MultiRAE Lite CO2?
Listed rental rates are $110/day and $335/week. Pricing beyond two weeks is quoted — contact RAECO Rents.
Exposure Hazards This Equipment Detects
Chlorine Gas (Cl₂)
CAS:
7782-50-5
Learn More
Updated on March 17, 2026
PEL TWA
1 ppm (3 mg/m³) [Construction and Maritime Industries only]
REL TWA
N/A
TLV TWA
0.1 ppm (0.29 mg/m³)
Ammonia (NH₃)
CAS:
7664-41-7
Learn More
Updated on April 10, 2026
PEL TWA
50 ppm (35 mg/m³)
REL TWA
25 ppm (18 mg/m³)
TLV TWA
25 ppm (17 mg/m³)
Carbon Monoxide (CO)
CAS:
630-08-0
Learn More
Updated on March 17, 2026
PEL TWA
50 ppm (55 mg/m³)
REL TWA
35 ppm (40 mg/m³)
TLV TWA
N/A
Hydrogen (H₂)
CAS:
1333-74-0
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Lower Explosive Limit (LEL)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Nitric Oxide (NO)
CAS:
10102-43-9
Learn More
Updated on March 09, 2026
PEL TWA
25 ppm (30 mg/m³)
REL TWA
25 ppm (30 mg/m³)
TLV TWA
25 ppm [1992]
Sulfur Dioxide (SO₂)
CAS:
7446-09-5
Learn More
Updated on March 09, 2026
PEL TWA
5 ppm (13 mg/m³)
REL TWA
2 ppm (5 mg/m³)
TLV TWA
N/A
Hydrogen Sulfide (H₂S)
CAS:
7783-06-4
Learn More
Updated on March 17, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
1 ppm [2009]
Formaldehyde (CH₂O)
CAS:
50-00-0
Learn More
Updated on March 17, 2026
PEL TWA
0.75 ppm [0.5 ppm Action Level]
REL TWA
0.016 ppm
TLV TWA
0.1 ppm [2016]
Ethylene Oxide (C₂H₄O)
CAS:
75-21-8
Learn More
Updated on March 17, 2026
PEL TWA
1 ppm [0.5 ppm Action Level]
REL TWA
<0.1 ppm (<0.18 mg/m³)
TLV TWA
1 ppm [1990]
Carbon Dioxide (CO₂)
CAS:
124-38-9
Learn More
Updated on March 17, 2026
PEL TWA
5000 ppm (9000 mg/m³)
REL TWA
5000 ppm (9000 mg/m³)
TLV TWA
5000 ppm (9000 mg/m³)
Nitrogen Dioxide (NO₂)
CAS:
10102-44-0
Learn More
Updated on March 17, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
0.2 ppm (0.38 mg/m³)
Oxygen (O₂)
CAS:
7782-44-7
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Hydrogen Cyanide (HCN)
CAS:
74-90-8
Learn More
Updated on March 09, 2026
PEL TWA
10 ppm (11 mg/m³) [skin]
REL TWA
N/A
TLV TWA
N/A
Methane (CH₄)
CAS:
74-82-8
Learn More
Updated on March 09, 2026
PEL TWA
No established PEL
REL TWA
No established REL
TLV TWA
No established TLV
Chlorine Dioxide (ClO₂)
CAS:
10049-04-4
Learn More
Updated on April 29, 2026
PEL TWA
0.1 ppm (0.3 mg/m³)
REL TWA
0.1 ppm (0.3 mg/m³)
TLV TWA
0.1 ppm (0.28 mg/m³)
Features & Capabilities
| Calibration Certificate Available: | ✓ Yes |
| Datalogging: | ✓ Yes |
| Intrinsically Safe: | ✓ Yes |
| Monitoring Scope: | Personal Monitoring |
Equipment Specifications
| Component Role: | Base instrument — accepts up to five interchangeable sensors simultaneously, or six gases when the CO+H2S combo sensor is fitted. Supplied with the CO2 NDIR sensor head |
| Sensor-Dependent Specifications: | Target gases, measurement ranges and resolutions are determined entirely by which sensors are fitted. See the interchangeable module specifications below. |
| Detection Method / Sensor Type: | 30 intelligent interchangeable field-replaceable sensors — PID for VOCs, electrochemical for toxic gases and oxygen, catalytic and NDIR for combustibles, and NDIR for CO2. Sensors store their own calibration data and can be swapped in the field |
| Relative Humidity Range: | 0% to 95% RH, non-condensing |
| Sample Flow Rate: | Built-in pump or diffusion. Note: NDIR combustible sensors require a pumped configuration in CSA countries |
| Alarm Features: | Multi-tone audible (95 dB at 30 cm), vibration, flashing bright red LEDs and on-screen indication, plus wireless remote alarm notification; Man Down alarm with pre-alarm |
| Calibration Method: | Zero, span and bump calibration; automatic with AutoRAE 2 or manual |
| Connectivity: | PC setup and data download via charging/PC communication cradle, travel charger, or AutoRAE 2; optional built-in RF modem. RAE Systems Dedicated Wireless Network on ISM license-free bands, typical range 656 ft (200 m) |
| Display: | Monochrome graphical LCD (128 x 160) with backlighting and automatic screen flip; shows real-time gas concentrations, battery status, datalogging and wireless status, plus STEL, TWA, peak and minimum values |
| Operating Temperature Range: | -4°F to 122°F (-20°C to 50°C) |
| Water/Dust Ingress Rating: | IP-65 (pumped); IP-67 (diffusion) |
| Intrinsically Safe Rating: | CSA: Class I, Division 1, Groups A, B, C and D, T4. ATEX: 0575 II 2G Ex ia d IIC T4 Gb. IECEx: Ex ia d IIC T4 Gb |
| Data Logging Interval: | User-configurable, 1 to 3,600 seconds |
| Data Storage Capacity: | Continuous datalogging — 6 months for 5 sensors at 1-minute intervals, 24/7 |
| Battery Run Time: | Rechargeable Li-ion approx. 12 hours pumped / 18 hours diffusion (recharge under 6 hours); extended-duration Li-ion approx. 18 hours pumped / 28 hours diffusion (recharge under 9 hours); alkaline adapter with 4x AA approx. 6 hours pumped / 8 hours diffusion |
| Size / Weight: | Pumped: 7.6 x 3.8 x 2.6 in (193 x 96.5 x 66 mm), 31 oz (880 g). Diffusion: 6.9 x 3.8 x 2.2 in (175 x 96.5 x 56 mm), 26.8 oz (760 g) |
| Regulatory Certifications: | EMC Directive 2004/108/EC, R&TTE Directive 1999/5/EC, ATEX Directive 94/9/EC |
| Compliance Standards: | CSA C22.2 No. 152 (LEL), ISA-12.13.01 (LEL) |
Interchangeable Module Specifications
Key specifications are determined by which of the 18 modules below is fitted. Select one when configuring your rental. Expand any module to view its specifications.
Carbon Dioxide (CO2)
Non-dispersive infrared (NDIR)
Range
0 to 50,000 ppm (0 to 5.0% Vol.)
Resolution
100 ppm
Operating Temp
-20°C to 50°C (MultiRAE family)
Carbon Monoxide (CO)
Electrochemical
Range
0 to 500 ppm
Resolution
1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Oxygen (O2)
Electrochemical
Range
0 to 30% Vol.
Resolution
0.1% Vol.
Operating Temp
-20°C to 50°C (MultiRAE family)
Combustible gases (% LEL)
Catalytic bead
Range
0 to 100% LEL
Resolution
1% LEL
Response
T90 < 15 seconds
Operating Temp
-20°C to 50°C (MultiRAE family)
Hydrogen Sulfide (H2S)
Electrochemical
Range
0 to 100 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Carbon Monoxide (CO) + Hydrogen Sulfide (H2S)
Electrochemical (dual-element)
Range
CO: 0 to 500 ppm; H2S: 0 to 200 ppm
Resolution
CO: 1 ppm; H2S: 0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family)
Carbon Monoxide (CO), hydrogen-compensated
Electrochemical with hydrogen compensation
Range
0 to 2,000 ppm
Resolution
10 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Sulfur Dioxide (SO2)
Electrochemical
Range
0 to 20 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Nitrogen Dioxide (NO2)
Electrochemical
Range
0 to 20 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Nitric Oxide (NO)
Electrochemical
Range
0 to 250 ppm
Resolution
0.5 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Hydrogen (H2)
Electrochemical
Range
0 to 1,000 ppm
Resolution
2 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Chlorine (Cl2)
Electrochemical
Range
0 to 50 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Ammonia (NH3)
Electrochemical
Range
0 to 100 ppm
Resolution
1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Formaldehyde (HCHO)
Electrochemical
Range
0 to 10 ppm
Resolution
0.01 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Ethylene Oxide (EtO-A)
Electrochemical
Range
0 to 100 ppm
Resolution
1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Hydrogen Cyanide (HCN)
Electrochemical
Range
0 to 50 ppm
Resolution
0.5 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Phosphine (PH3)
Electrochemical
Range
0 to 20 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Chlorine Dioxide (ClO2)
Electrochemical
Range
0 to 1 ppm
Resolution
0.03 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Kit Contents
Manufacturer Resources
Documents
User manuals, safety guides, and technical documentation from the manufacturer:
- MultiRAE Lite Specs PDF
- MultiRAE Lite Quick Start Guide PDF
- MultiRAE Family User Manual PDF
- MultiRAE Lite CO2 Checklist PDF
- RAE EC Cross-Sensitivity TN-114 PDF
