MultiRAE Lite PID by Honeywell RAE Systems - Multigas Monitor
Cross-sensitivity warning: This instrument may react to gases beyond its primary target. Check the spec sheet to verify compatibility with your gas mixture before use.
This unit comes standard with PID, CO, O₂, H₂S, and LEL sensors. All other sensors are available upon request.

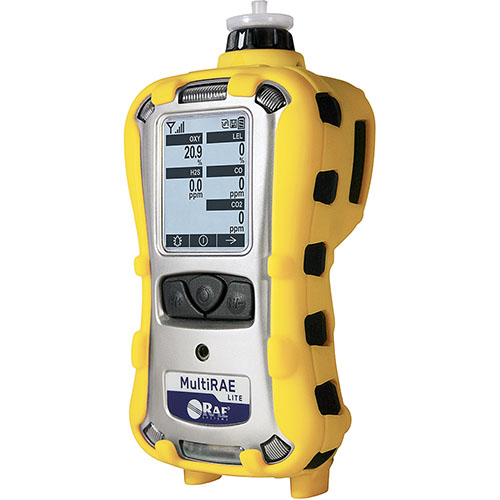

The MultiRAE Lite PID by Honeywell RAE Systems is a pumped multigas monitor capable of simultaneously detecting up to six gases for personal protection and industrial leak detection in confined space, hazmat, and industrial hygiene applications. The PID sensor measures VOCs from 0–1,000 ppm, and a broad selection of electrochemical sensors is available including CO (0–500 ppm), H₂S (0–100 ppm), O₂ (0–30% vol.), LEL (0–100%), NH₃ (0–100 ppm), NO₂ (0–20 ppm), SO₂ (0–20 ppm), and more. The modular design supports up to 6 plug-and-play sensors and is compatible with Honeywell Safety Suite Device Configurator Software for data management and compliance reporting.
Choose Your Option
Rent for flexible short-term use or purchase to own
Rental Rates
Daily
$110.00
Weekly
$335.00
Monthly
Contact for pricing
Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.
What is the MultiRAE Lite PID used for?
The MultiRAE Lite PID is a pumped multigas monitor used for personal protection and leak detection when VOC screening is part of the hazard assessment. It combines a PID channel with standard personal protection sensors in one instrument.
What sensors are standard on this unit?
It comes standard with PID, CO, O2, H2S, and LEL sensors. Additional electrochemical sensors are available upon request, supporting up to six plug-and-play sensors total.
What VOC PID range does this unit measure?
The PID measures VOCs from 0–1,000 ppm with 1 ppm resolution. Use those values to confirm fit for your VOC environment.
Is the MultiRAE Lite PID intrinsically safe?
Yes — it is certified Intrinsically Safe (DoC, ATEX, IECEx, IP-67, IP-65, and CSA). Confirm your site classification and requirements before use.
Does it support automated bump testing and calibration?
Yes — it supports fully automated bump testing and calibration with the AutoRAE 2. Automated workflows reduce missed checks when multiple crews share the same instruments.
MultiRAE Lite PID vs. a standard 4-gas monitor — what's the difference?
A standard 4-gas monitor does not measure VOCs. Adding a PID channel is helpful when VOC exposure or solvent releases are part of the hazard list, giving VOC screening plus oxygen, LEL, and toxics in one workflow.
MultiRAE Lite PID vs. a standalone PID — which should I choose?
Choose a standalone PID when VOC screening is the only need. Choose the MultiRAE Lite PID when you need VOC screening plus oxygen/LEL/toxics in the same monitoring workflow.
What's included with the MultiRAE Lite PID rental kit?
The monitor, travel charger with USB, AC charger, alkaline battery pack, calibration cap, tools, PID removal tool, spare charcoal filters, mini USB cable, spare pump filter, and Safety Suite Device Configurator on a flash drive.
How much does it cost to rent the MultiRAE Lite PID?
Listed rental rates are $110/day and $335/week. Pricing beyond two weeks is quoted — contact RAECO Rents.
Exposure Hazards This Equipment Detects
Carbon Monoxide (CO)
CAS:
630-08-0
Learn More
Updated on March 17, 2026
PEL TWA
50 ppm (55 mg/m³)
REL TWA
35 ppm (40 mg/m³)
TLV TWA
N/A
Chlorine Gas (Cl₂)
CAS:
7782-50-5
Learn More
Updated on March 17, 2026
PEL TWA
1 ppm (3 mg/m³) [Construction and Maritime Industries only]
REL TWA
N/A
TLV TWA
0.1 ppm (0.29 mg/m³)
Formaldehyde (CH₂O)
CAS:
50-00-0
Learn More
Updated on March 17, 2026
PEL TWA
0.75 ppm [0.5 ppm Action Level]
REL TWA
0.016 ppm
TLV TWA
0.1 ppm [2016]
Hydrogen Sulfide (H₂S)
CAS:
7783-06-4
Learn More
Updated on March 17, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
1 ppm [2009]
Lower Explosive Limit (LEL)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Nitrogen Dioxide (NO₂)
CAS:
10102-44-0
Learn More
Updated on March 17, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
0.2 ppm (0.38 mg/m³)
Sulfur Dioxide (SO₂)
CAS:
7446-09-5
Learn More
Updated on March 09, 2026
PEL TWA
5 ppm (13 mg/m³)
REL TWA
2 ppm (5 mg/m³)
TLV TWA
N/A
Volatile Organic Compounds (VOCs)
CAS:
N/A
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Nitric Oxide (NO)
CAS:
10102-43-9
Learn More
Updated on March 09, 2026
PEL TWA
25 ppm (30 mg/m³)
REL TWA
25 ppm (30 mg/m³)
TLV TWA
25 ppm [1992]
Hydrogen (H₂)
CAS:
1333-74-0
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Ethylene Oxide (C₂H₄O)
CAS:
75-21-8
Learn More
Updated on March 17, 2026
PEL TWA
1 ppm [0.5 ppm Action Level]
REL TWA
<0.1 ppm (<0.18 mg/m³)
TLV TWA
1 ppm [1990]
Ammonia (NH₃)
CAS:
7664-41-7
Learn More
Updated on April 10, 2026
PEL TWA
50 ppm (35 mg/m³)
REL TWA
25 ppm (18 mg/m³)
TLV TWA
25 ppm (17 mg/m³)
Oxygen (O₂)
CAS:
7782-44-7
Learn More
Updated on March 09, 2026
PEL TWA
N/A
REL TWA
N/A
TLV TWA
N/A
Hydrogen Cyanide (HCN)
CAS:
74-90-8
Learn More
Updated on March 09, 2026
PEL TWA
10 ppm (11 mg/m³) [skin]
REL TWA
N/A
TLV TWA
N/A
Methane (CH₄)
CAS:
74-82-8
Learn More
Updated on March 09, 2026
PEL TWA
No established PEL
REL TWA
No established REL
TLV TWA
No established TLV
Chlorine Dioxide (ClO₂)
CAS:
10049-04-4
Learn More
Updated on April 29, 2026
PEL TWA
0.1 ppm (0.3 mg/m³)
REL TWA
0.1 ppm (0.3 mg/m³)
TLV TWA
0.1 ppm (0.28 mg/m³)
Features & Capabilities
| Calibration Certificate Available: | ✓ Yes |
| Datalogging: | ✓ Yes |
| Intrinsically Safe: | ✓ Yes |
| Monitoring Scope: | Area Monitoring |
Equipment Specifications
| Component Role: | Base instrument — accepts up to five interchangeable sensors simultaneously, or six gases when the CO+H2S combo sensor is fitted. Supplied with the standard-resolution PID sensor head |
| Sensor-Dependent Specifications: | Target gases, measurement ranges and resolutions are determined entirely by which sensors are fitted. See the interchangeable module specifications below. |
| Detection Method / Sensor Type: | 30 intelligent interchangeable field-replaceable sensors — PID for VOCs, electrochemical for toxic gases and oxygen, catalytic and NDIR for combustibles, and NDIR for CO2. Sensors store their own calibration data and can be swapped in the field |
| Relative Humidity Range: | 0% to 95% RH, non-condensing |
| Sample Flow Rate: | Built-in pump or diffusion. Note: the PID sensor requires a pumped configuration |
| Alarm Features: | Multi-tone audible (95 dB at 30 cm), vibration, flashing bright red LEDs and on-screen indication, plus wireless remote alarm notification; Man Down alarm with pre-alarm |
| Calibration Method: | Zero, span and bump calibration; automatic with AutoRAE 2 or manual |
| Connectivity: | PC setup and data download via charging/PC communication cradle, travel charger, or AutoRAE 2; optional built-in RF modem. RAE Systems Dedicated Wireless Network on ISM license-free bands, typical range 656 ft (200 m) |
| Display: | Monochrome graphical LCD (128 x 160) with backlighting and automatic screen flip; shows real-time gas concentrations, PID measurement gas and correction factor, battery status, datalogging and wireless status, plus STEL, TWA, peak and minimum values |
| Operating Temperature Range: | -4°F to 122°F (-20°C to 50°C) |
| Water/Dust Ingress Rating: | IP-65 (pumped); IP-67 (diffusion) |
| Intrinsically Safe Rating: | CSA: Class I, Division 1, Groups A, B, C and D, T4. ATEX: 0575 II 2G Ex ia d IIC T4 Gb. IECEx: Ex ia d IIC T4 Gb |
| Data Logging Interval: | User-configurable, 1 to 3,600 seconds |
| Data Storage Capacity: | Continuous datalogging — 6 months for 5 sensors at 1-minute intervals, 24/7 |
| Battery Run Time: | Rechargeable Li-ion approx. 12 hours pumped / 18 hours diffusion (recharge under 6 hours); extended-duration Li-ion approx. 18 hours pumped / 28 hours diffusion (recharge under 9 hours); alkaline adapter with 4x AA approx. 6 hours pumped / 8 hours diffusion |
| Size / Weight: | Pumped: 7.6 x 3.8 x 2.6 in (193 x 96.5 x 66 mm), 31 oz (880 g). Diffusion: 6.9 x 3.8 x 2.2 in (175 x 96.5 x 56 mm), 26.8 oz (760 g) |
| Regulatory Certifications: | EMC Directive 2004/108/EC, R&TTE Directive 1999/5/EC, ATEX Directive 94/9/EC |
| Compliance Standards: | CSA C22.2 No. 152 (LEL), ISA-12.13.01 (LEL) |
Interchangeable Module Specifications
Key specifications are determined by which of the 18 modules below is fitted. Select one when configuring your rental. Expand any module to view its specifications.
Volatile Organic Compounds (VOCs)
Photoionization detector (PID), 10.6 eV lamp — standard resolution
Range
0 to 1,000 ppm
Resolution
1 ppm
Response
T90 < 15 seconds (isobutylene)
Operating Temp
-20°C to 50°C (MultiRAE family)
Oxygen (O2)
Electrochemical
Range
0 to 30% Vol.
Resolution
0.1% Vol.
Operating Temp
-20°C to 50°C (MultiRAE family)
Carbon Monoxide (CO)
Electrochemical
Range
0 to 500 ppm
Resolution
1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Combustible gases (% LEL)
Catalytic bead
Range
0 to 100% LEL
Resolution
1% LEL
Response
T90 < 15 seconds
Operating Temp
-20°C to 50°C (MultiRAE family)
Hydrogen Sulfide (H2S)
Electrochemical
Range
0 to 100 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Carbon Monoxide (CO) + Hydrogen Sulfide (H2S)
Electrochemical (dual-element)
Range
CO: 0 to 500 ppm; H2S: 0 to 200 ppm
Resolution
CO: 1 ppm; H2S: 0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family)
Carbon Monoxide (CO), hydrogen-compensated
Electrochemical with hydrogen compensation
Range
0 to 2,000 ppm
Resolution
10 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Sulfur Dioxide (SO2)
Electrochemical
Range
0 to 20 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Nitrogen Dioxide (NO2)
Electrochemical
Range
0 to 20 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Nitric Oxide (NO)
Electrochemical
Range
0 to 250 ppm
Resolution
0.5 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Hydrogen (H2)
Electrochemical
Range
0 to 1,000 ppm
Resolution
2 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Chlorine (Cl2)
Electrochemical
Range
0 to 50 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Ammonia (NH3)
Electrochemical
Range
0 to 100 ppm
Resolution
1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Formaldehyde (HCHO)
Electrochemical
Range
0 to 10 ppm
Resolution
0.01 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Ethylene Oxide (EtO-A)
Electrochemical
Range
0 to 100 ppm
Resolution
1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Hydrogen Cyanide (HCN)
Electrochemical
Range
0 to 50 ppm
Resolution
0.5 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Phosphine (PH3)
Electrochemical
Range
0 to 20 ppm
Resolution
0.1 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Chlorine Dioxide (ClO2)
Electrochemical
Range
0 to 1 ppm
Resolution
0.03 ppm
Operating Temp
-20°C to 50°C (MultiRAE family); -20°C to 55°C (ToxiRAE Pro)
Kit Contents
Manufacturer Resources
Documents
User manuals, safety guides, and technical documentation from the manufacturer:
- MultiRAE Lite Specs PDF
- MultiRAE Family User Manual PDF
- MultiRAE Lite Quick Start Guide PDF
- RAE PID Correct Factors TN-106 PDF
- What's In the Box PDF
- RAE EC Cross-Sensitivity TN-114 PDF
