ToxiRAE Pro by Honeywell RAE Systems - Personal Gas Detector

Intrinsically Safe Personal Monitoring Datalogging

Gas Monitor Manufacturer: Honeywell RAE Systems

ToxiRAE Pro by Honeywell RAE Systems - Personal Gas Detector

Training
Available

Training

How to use Safety Suite Software for RAE Systems

Training

Honeywell Safety Suite - Downloading data and a calibration certificate

Cross-sensitivity warning: This instrument may react to gases beyond its primary target. Check the spec sheet to verify compatibility with your gas mixture before use.

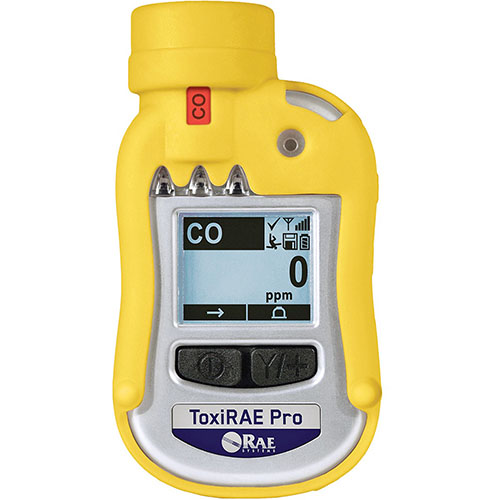

The ToxiRAE Pro by Honeywell RAE Systems is a configurable single-gas personal monitor designed for continuous exposure monitoring in confined space, industrial hygiene, and Class I, Division 1 hazardous area applications. When renting, customers select one interchangeable electrochemical sensor from 12 available options CO, CO (H₂-compensating), H₂S, SO₂, NO₂, NO, H₂, Cl₂, NH₃, HCHO, ClO₂ ETO-A, or HCN, allowing the same rugged platform to cover a wide range of toxic gas hazards depending on the application. The device features visual, audible, and vibratory alarms including a Man Down alarm for five-way notification, a minimum 8-hour battery runtime, and IP65/67 water- and dust-resistant housing with a protective rubber boot. Built-in datalogging stores up to three months of STEL, TWA, peak, and real-time exposure data, and the unit is compatible with Honeywell Safety Suite Device Configurator Software for data management and compliance reporting.

Choose Your Option

Rent for flexible short-term use or purchase to own

Rent

Rental Rates

Daily

$55.00

Weekly

$150.00

Monthly

Contact for pricing

Reference rates only. You get the best rate calculation - actual price based on your selected rental dates.

See more product details

The ToxiRAE Pro CO is a single-gas personal monitor used for continuous carbon monoxide (CO) exposure monitoring when you need a wearable alarm plus a trackable record of exposure values. It's built for the friction point in CO work: exposure can spike during specific tasks, and you need to know it while it's happening.

The product description lists a CO range of 0 to 500 ppm with 1 ppm resolution. Use those numbers to confirm the monitor fits your expected CO environment.

Real-time is the current reading. Peak is the highest value seen. STEL is a short-term average intended to capture short spikes, and TWA is a time-weighted average over a longer period. Those values help you separate "brief spike during a task" from "sustained exposure during a shift."

Keep it where it samples the air the worker is actually exposed to, typically in the breathing zone per your SOP. Don't bury it under clothing or behind barriers that block airflow, because that can delay or distort response.

Use a 4-gas monitor when you need oxygen, LEL, CO, and H2S together for entry or broad protection. Use a single-gas CO monitor when CO is the primary hazard and you want a simpler, lower-burden wearable option for multiple workers.

A personal monitor tells you what a worker is exposed to. An area monitor tells you what a location looks like. If your friction is "workers move between spaces," personal monitoring usually provides more actionable data.

The product description lists the monitor with sensor installed plus charging dock/PC cradle, AC adapter, mini USB cable, calibration adapter, protective rubber boot, alligator clip, a flash drive with Safety Suite software/manuals, quick start guide, and a carrying case.

Placement and task differences drive most variance. If one worker is closer to an exhaust source or has the monitor placed differently, readings will differ. Standardize placement, document task steps, and compare like-for-like conditions.

CO spikes can be short and localized—door openings, equipment cycling, and movement through a plume can trigger brief alarms. Treat alarms as real until you confirm conditions. Re-check the area, document what changed, and follow your SOP for response actions.

Recording numbers without context. A peak value is far more useful when it's tied to a task step and conditions (equipment state, ventilation, location). Without that, it's hard to fix the cause.

Exposure Hazards This Equipment Detects

PEL TWA

50 ppm (55 mg/m³)

REL TWA

35 ppm (40 mg/m³)

TLV TWA

N/A

PEL TWA

1 ppm (3 mg/m³) [Construction and Maritime Industries only]

REL TWA

N/A

TLV TWA

0.1 ppm (0.29 mg/m³)

PEL TWA

N/A

REL TWA

N/A

TLV TWA

0.2 ppm (0.38 mg/m³)

PEL TWA

50 ppm (35 mg/m³)

REL TWA

25 ppm (18 mg/m³)

TLV TWA

25 ppm (17 mg/m³)

PEL TWA

1 ppm [0.5 ppm Action Level]

REL TWA

<0.1 ppm (<0.18 mg/m³)

TLV TWA

1 ppm [1990]

PEL TWA

N/A

REL TWA

N/A

TLV TWA

N/A

PEL TWA

0.75 ppm [0.5 ppm Action Level]

REL TWA

0.016 ppm

TLV TWA

0.1 ppm [2016]

PEL TWA

N/A

REL TWA

N/A

TLV TWA

1 ppm [2009]

PEL TWA

25 ppm (30 mg/m³)

REL TWA

25 ppm (30 mg/m³)

TLV TWA

25 ppm [1992]

PEL TWA

5 ppm (13 mg/m³)

REL TWA

2 ppm (5 mg/m³)

TLV TWA

N/A

PEL TWA

10 ppm (11 mg/m³) [skin]

REL TWA

N/A

TLV TWA

N/A

PEL TWA

0.1 ppm (0.3 mg/m³)

REL TWA

0.1 ppm (0.3 mg/m³)

TLV TWA

0.1 ppm (0.28 mg/m³)

Features & Capabilities

Calibration Certificate Available:	✓ Yes
Datalogging:	✓ Yes
Intrinsically Safe:	✓ Yes
Monitoring Scope:	Personal Monitoring

Equipment Specifications

Component Role:	Base instrument — requires one interchangeable sensor module (selected separately)
Sensor-Dependent Specifications:	Target gas, measurement range, resolution, accuracy, and response time are determined by the installed sensor module. See the selected sensor's specifications for those values.
Detection Method / Sensor Type:	Interchangeable plug-and-play sensor modules; sensors store their own calibration data
Alarm Features:	Five-way local notification: audible buzzer, vibration, visual display, and LED lights; includes Man Down alarm and policy enforcement
Calibration Method:	Zero, Span & Bump Calibrations; field-replaceable plug-and-play sensor
Connectivity:	Optional wireless RF modem (factory-configured; non-wireless units cannot be upgraded); interfaces with ProRAE Guardian and EchoView Host systems
Display:	Large backlit display showing real-time gas concentration, STEL, TWA, peak and minimum values, and alarm status
Water/Dust Ingress Rating:	IP65/67 water- and dust-resistant case with rubber protective boot
Intrinsically Safe Rating:	Class I, Division 1, Groups A-D; T-code T4
Data Storage Capacity:	Continuous datalogging up to three months
Battery Run Time:	8+ hours; field-replaceable battery
Regulatory Certifications:	EMC Directive 2004/108/EC, R&TTE Directive 1999/5/EC, ATEX Directive 94/9/EC

Interchangeable Module Specifications

Key specifications are determined by which of the 14 modules below is fitted. Select one when configuring your rental. Expand any module to view its specifications.

Range

0 to 500 ppm

Resolution

1 ppm

Operating Temp
